HID Ballast

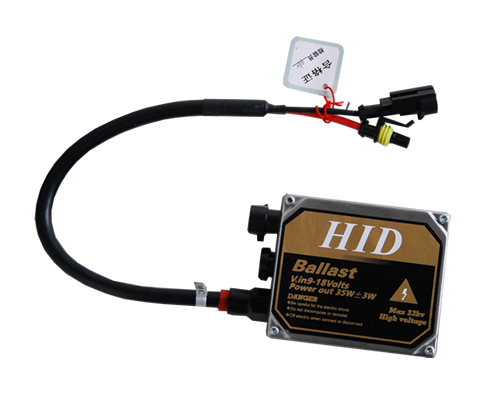

General Ballast-1

 Technique Parameters
Input Voltage Range : 8.5~18VDC
Operating Voltage : 13.5VDC Typical
Input Current : 3.2A DC(13.5V DC IN)
Output Power : 35W 1W Constant Power
Output Frequency : 400Hz 10Hz
Output Voltage : 85V 17V AC True RMS Square Wav
Operating Temperature :   40 ~ 105
Storage Temperature :   40 ~ 105
Efficiency : >83% With Input 13.5V DC Condition

Ignitor
Trigger output Voltage :   23KV Typical
Trigger Input Voltage :   280V AC

Protection
Output Open/Short Protection : Shutdown in 1.5 Seconds
End of Life Lamp Voltage : 120V AC True RMS Square
Wave Water Proof

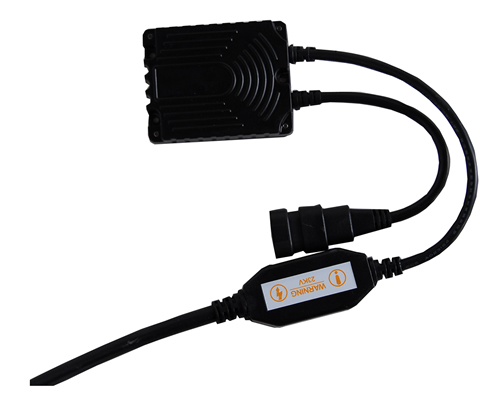

General ballast-2

¡@

Technique Parameters
Input Voltage Range : 8.5~18VDC
Operating Voltage : 13.5VDC Typical


Input Current : 3.2A DC(13.5V DC IN)
Output Power : 35W 1W Constant Power
Output Frequency : 400Hz 10Hz
Output Voltage : 85V 17V AC True RMS Square Wav
Operating Temperature :   40 ~ 105
Storage Temperature :   40 ~ 105
Efficiency : >83% With Input 13.5V DC Condition
¡@
Ignitor
Trigger output Voltage :   23KV Typical
Trigger Input Voltage :   280V AC

Protection
Output Open/Short Protection : Shutdown in 1.5 Seconds
End of Life Lamp Voltage : 120V AC True RMS Square
Wave Water Proof

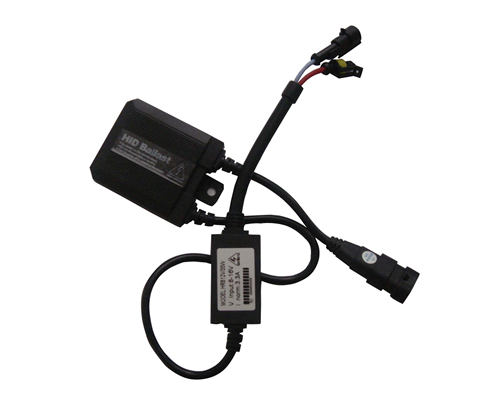

General ballast -3

 Technique Parameters
Input Voltage Range : 8.5~18VDC
Operating Voltage : 13.5VDC Typical

Input Current : 3.2A DC(13.5V DC IN)
Output Power : 35W 1W Constant Power
Output Frequency : 400Hz 10Hz
Output Voltage : 85V 17V AC True RMS Square Wav
Operating Temperature :   40 ~ 105
Storage Temperature :   40 ~ 105
Efficiency : >83% With Input 13.5V DC Condition

Ignitor
Trigger output Voltage :   23KV Typical
Trigger Input Voltage :   280V AC

Protection
Output Open/Short Protection : Shutdown in 1.5 Seconds
End of Life Lamp Voltage : 120V AC True RMS Square
Wave Water Proof

¡@

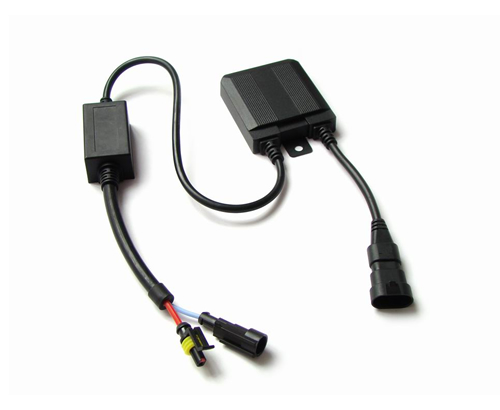

Slim Ballast-1

 Technique Parameters
Input Voltage Range : 8.5~18VDC
Operating Voltage : 13.5VDC Typical
Input Current : 3.2A DC(13.5V DC IN)
Output Power : 35W 1W Constant Power
Output Frequency : 400Hz 10Hz
Output Voltage : 85V 17V AC True RMS Square Wav
Operating Temperature :   40 ~ 105
Storage Temperature :   40 ~ 105
Efficiency : >83% With Input 13.5V DC Condition

Ignitor
Trigger output Voltage :   23KV Typical
Trigger Input Voltage :   280V AC

¡@

Protection
Output Open/Short Protection : Shutdown in 1.5 Seconds
End of Life Lamp Voltage : 120V AC True RMS Square
Wave Water Proof

¡@

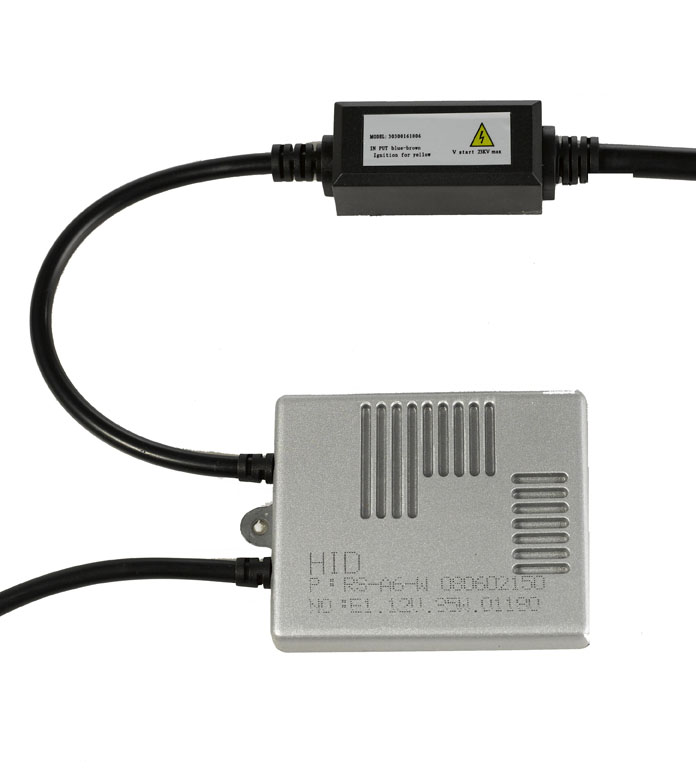

Slim Ballast-2

 Technique Parameters
Input Voltage Range : 8.5~18VDC
Operating Voltage : 13.5VDC Typical

Input Current : 3.2A DC(13.5V DC IN)
Output Power : 35W 1W Constant Power
Output Frequency : 400Hz 10Hz
Output Voltage : 85V 17V AC True RMS Square Wav
Operating Temperature :   40 ~ 105
Storage Temperature :   40 ~ 105
Efficiency : >83% With Input 13.5V DC Condition

Ignitor
Trigger output Voltage :   23KV Typical
Trigger Input Voltage :   280V AC

Protection
Output Open/Short Protection : Shutdown in 1.5 Seconds
End of Life Lamp Voltage : 120V AC True RMS Square
Wave Water Proof

¡@

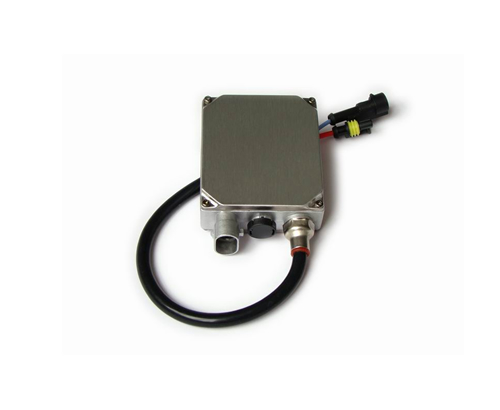

Slim Ballast-3

 Technique Parameters
Input Voltage Range : 8.5~18VDC
Operating Voltage : 13.5VDC Typical
Input Current : 3.2A DC(13.5V DC IN)
Output Power : 35W 1W Constant Power
Output Frequency : 400Hz 10Hz
Output Voltage : 85V 17V AC True RMS Square Wav
Operating Temperature :   40 ~ 105
Storage Temperature :   40 ~ 105
Efficiency : >83% With Input 13.5V DC Condition

Ignitor
Trigger output Voltage :   23KV Typical
Trigger Input Voltage :   280V AC

Protection
Output Open/Short Protection : Shutdown in 1.5 Seconds
End of Life Lamp Voltage : 120V AC True RMS Square
Wave Water Proof

¡@

0507

 TECHNICAL PARAMETER:
Input voltage range: DC9V-16V
Max input current : staring current 5.6V, Reach3.2A in 4s,3.2A in stable state
Hot starting current: 3.5A
Instant ignition voltage: 23KV
Working temperature: -40¢J ~ +105¢J
Power in stable state: 35W(saving 50%)
Output power: reach 30% in cold starting in 1s, Reach 80% 4s, Reach rating power in 8s
Luminous flux: 2500~3500 1umen
Lifespan: 3500 hours
Anti-EMD: reach S95/54/EC standard
Short circuit protection: automatic protection in 0.5s
Open circuit protection: automatic protection in 0.5s
Function of owe and over voltage protection
Function for reversed input protection

Function of waterproof,dustproof,anti-vibration

¡@

0508

¡@
TECHNICAL PARAMETER:
Input voltage range: DC7V-28V
Max input current : staring current 5.6V, Reach3.2A in 4s,3.2A in stable state
Hot starting current: 3.5A
Instant ignition voltage: 23KV
Working temperature: -40¢J ~ +105¢J
Power in stable state: 35W(saving 50%)
Output power: reach 30% in cold starting in 1s, Reach 80% 4s, Reach rating power in 8s
Luminous flux: 2500~3500 1umen
Lifespan: 3500 hours
Anti-EMD: reach S95/54/EC standard
Short circuit protection: automatic protection in 0.5s
Open circuit protection: automatic protection in 0.5s
Function of owe and over voltage protection
Function for reversed input protection
Function of waterproof,dustproof,anti-vibration

¡@

0509
TECHNICAL PARAMETER:
Input Voltage Range: DC9V-16V
Starting Voltage: DC12.8V
Input Current: 3.2A
Max. Inrush Current: 15A
Output Power: 32W-38W
Output Frequency: 260Hz ¡V 280Hz
Efficiency: ≥84%
Using Lamp: 35W HID lamp
Ignition pulse: Typical peak voltage 23KV, Typ. 1s
Cooling method: Natural cooling
Input protection:
Under voltage protection at 6V¡Ó1V
Over voltage protection at 27.
Input connection-reverse protection
Output protection: Short circuit protection between two outputs
Open circuit protection between two outputs.

¡@

5200

 TECHNICAL PARAMETER:
Operation Temperature: -40¢J ~ 85¢J
Steady State Light Output: >3300 lumens(for 4300k) typical,bulb type dependent
Turn on Light Output Power: >35W after 47 sec
Expected Ballast Life: >3000 hours typical
Cooling: Conductively cooled
Outpur Waveform: 420 +/-20Hz square wave
Steady State Output Power: 34.5 +/-0.5W
Open Circuit Protection (lamp is on): Latch off ballast after 1 sec max
Short Circuit Protection: Latch off ballast after 150msec max
Start Circuit Protection: Latch off ballast after 150msec max
Start Current: 5~6A initial bulb on
Max. Output Power: 100W
Steady State Output Voltage: 68V ~ 160V
Starting Voltage: < 23000V
Operation Voltage: DC9-32v
Max. Inrush Current: <30A (5us) after power on
Max. Steady State Input Power: 50W
Input Turn Off: 8.5-32V
Input Turn On: 8.5-32V
Normal Input Current: 3.2A +/-0.1A (DC 13.2V)

Reverse Voltage Protection: No damage to ballast with 1V ~ 34V

¡@

N97

 We supply HID xenon kit warning canceller (specially for BENTZ, BMW, AUDI)

For certain cars, the oringinal lighting system is controlled by ECU ( Electronic Control Unit), but, the working principle and working current of xenon light is
different from halogen lamp. The ECU can not get the feedback signal from xenon light, a warning message may show up on the dashboard. That is why
you have to install the HID xenon kit warning canceller.
Gpusi's HID xenon kit warning canceller is designed to cancel error message when install non-factory HID. This product is applicable for BENTZ, BMW, AUDI.

Certain new launched luxery vehicle, the filtered signal from computer chip is not compatible with the filtered signal from xenon ballast, that will cause the
malfunction in the chip. Furthermore, for some vehicles, the oringinal lighting system is controlled by ECU ( Electronic Control Unit), but, the working principle
and working current of xenon light is different from halogen lamp ( the factory halogen lamp is 55 watts, but xenon light is just 35 watts), that will cause a
warning message may show up on the dashboard, so you have to install the HID xenon kit warning canceller.
Gpusi's HID xenon kit warning canceller is able to solve the problems completely.

¡@
