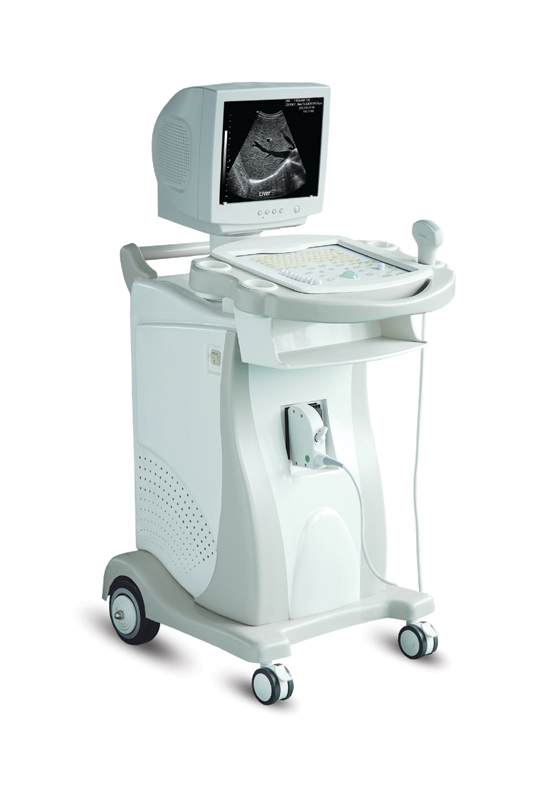

Full Digital Ultrasonic Diagnostic Equipment

Leading Digital Technology
DBF:Digital Beam Former
RDF:Real-time Dynamic Filtering
DFS:Dynamic Frequency Scanning
RDA:Real-time Dynamic Aperture

Features:

Trolley design
14 inch high-resolution monitor
8 TGC controls
High-quality images
Broadband multi-frequency probes
Cineloop
Permanent image storage
USB port

Imaging Processing:

- Planar images

- The functions of frame correlation, γ correction and edge enhancement held, as well as the functions of pretreatment, post processing, left-eight reversing and up-down reversing

- Image displaying ratio: step-less magnification which can be increased. Real-time local zooming held

- Maximum storage of more than 100,000 images. Images recorders optional

- Case history created and created automatically

- Images manage system, Case history database system and diagnosis & measurement pre-treat system

Technical Specification:

Display	14 inch high-resolution monitor
Scanning mode	Electronic linear array, electronic convex linear
Display mode	B, B/B, B/M, M, 4B
Magnification	×1.0, ×1.2, ×1.5, ×2.0
Gray Scale	256 level
Displaying depth	240mm, and depth could be increased and stepless magnified
Resolution	Horizontal: ≤2mm Vertical: ≤1mm
Geometrical precision	≤5%
Blind area	≤3mm
TGC	8-section TGC adjust
Image Polarity	left/right turn, positive /negative turn and up / down turn
Cineloop	successive 256 frames
Output Interface	two output interfaces, VGA and PAL video signal output
Power Supply Range	AC 110V 60Hz AC 220V 50Hz
Focusing modes	dynamic-emitting focus, dynamic-receiving focus, dynamic aperture, adaptive acoustic lens
Output interface	AV, S-video, VGA
USB connector	Yes

Measurement and Analysis Software:

- The General Measurement and Analysis

- The Measurement and Analysis for Gynecology

- The Measurement and Analysis for Obstetrics

- The Measurement and Analysis for Urology

- The Measurement and Analysis for Small parts

- The Measurement and Analysis for Heart and the ambient vessels

Remarks: for each picture there are more than 5 parameters for reference, such as distance, area, perimeter, angle, volume, gestational age, fetus’ weight, heart rate, slope rate, flux, left ventricle and so on

Standard Configuration:

- Main unit

- 14 inch monitor

- 256-frame cineloop

- Images permanent image storage

- Two probe connectors

- USB port

- 3.5MHz electronic convex transducer (2.5/5.0MHz)

Optional:

- Electronic transvaginal transducer (5.0/7.5MHz)

- Electronic High-frequency linear transducer (6.5/8.5MHz)

- MSF: Mass storage

- Jet printer, laser printer, video printer

- DICOM 3.0 interface

LEO-3000G2
