| ROTARY
COMPOSER |
 |
|
|
|

|
|
|
HYDRAULIC

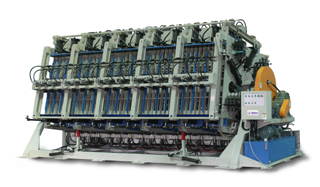

ROTARY COMPOSER
ACP-6-3700-1400-100
BF
4 sections,4.6 meters wide |
The
hydraulic rotary composer, 6 working sections, the BF series.
Every section has several main laminating cylinders and surface
hold-down cylinders to conduct the panel presses.
The machine is specially designed with a hydraulic
edge-gluing unit that produces large and flat panels¡C
It is a
heavy duty press with most versatile and reliable purpose for
solid wood edge gluing
, and is available to manufacture the furniture, tabletop,
cabinet, windor, floorboard, beam and constructional material and
etc.
The strongly constructed machine with main laminate
hydraulic cylinders and surface cylinders assures the heavy duty
gluing works
and high quality products. Furthermore, the powerful hydraulic
system guarantees long working hours ¡C
The
hydraulic composer series provide 1 section of vertical type and
horizontal type ,
2 sections of A type, 4 sections and 6 sections of rotary type. To
meet the various requirements of working dimension, we offer
2500mm, 3100mm, 4600mm, 6200mm in length, and 1000mm,
1300mm in width, as well as 150mm, 200mm in thickness. These
various dimensions offer individual choices¡C |
MACHINE SPECIFICATIONS
| Working
dimensions |
| Length |
2500mm |
3100mm |
4600mm |
6200mm |
| Width |
1000mm or 1300mm |
1000mm or 1300mm |
1000mm or 1300mm |
1000mm or 1300mm |
| Thickness |
150mm |
150mm |
150mm |
150mm |
| Each
working station |
| Laminating
cylinders |
6 pcs |
6 PCs |
10 PCs |
18PCs |
| Surface
cylinders |
6 pcs |
9 PCs |
15 PCs |
18 PCs |
| Side lift
cylinders |
2 pcs |
2 PCs |
2 PCs |
2 PCs |
| Hydraulic
pump max. pressure |
140/kg/cm2 |
140/kg/cm2 |
140/kg/cm2 |
140/kg/cm2 |
| Hydraulic
pump drive motor |
7.5HP |
7.5HP |
7.5HP |
10HP |
| Rotary
drive motor |
2HP |
2HP |
2HP |
3HP |
| Dimensions |
Machine
dimensions
(1300mm wide composer) |
4200x3100x3500(mm) |
4800x3100x3500(mm) |
6200x3100x3500(mm) |
7800x3100x3500(mm) |
Packing
dimensions
(1300mm wide composer) |
4400x3650x3550(mm) |
5000x3650x3550(mm) |
6400x3550x3100(mm) |
8000x3650x3500(mm) |
| Machine
weight |
N.W.
(1300mm wide composer) |
13000kg |
15000kg |
19800kg |
25000kg |
G.W.
(1300mm wide composer) |
14500kg |
16700kg |
21600kg |
27000kg |
¡@
|
|
 |
THE
LARGE PANEL PRESS |
| ACP-4-4600-1300-150
AE |
| HYDRAULIC
ROTARY COMPOSER |
The
hydraulic rotary composer, 4 working sections, the AE series.
Every section has several main laminating cylinders and surface
hold-down cylinders to conduct the panel presses.
The hydraulic rotary composer, a large panel press, 4 working
sections, the AE series, is a hydraulic clamping machine that
produce very large, very flat panels and millwork. It can also be
used to produce smaller, more common-size panels. All clamping
surface are milled for precise flatness. This large panel press is
available in 4 section configurations.
Hydraulic cylinders and piping system are pressure and leak
resistant, ensuring good working pressure and condition at all
times. |
MACHINE SPECIFICATIONS
| Working
dimensions |
| Length |
2500mm ( 8.2') |
3100mm ( 10.2' ) |
4600mm ( 15.1') |
6200mm ( 20.35') |
| Width |
1000mm ( 3.25') or 1300mm ( 4.25' ) |
1000mm or 1300mm |
1000mm or 1300mm |
1000mm or 1300mm |
| Thickness |
100mm ( 4') or 150mm ( 6' ) |
100mm or 150mm |
100mm or 150mm |
100mm or 150mm |
|
Each working station
|
| Laminating
cylinders |
4 pcs |
6 PCs |
10 PCs |
14PCs |
| Surface
cylinders |
6 pcs |
9 PCs |
15 PCs |
21 PCs |
| Side lift
cylinders |
2 pcs |
2 PCs |
2 PCs |
2 PCs |
| Hydraulic
pump max. pressure |
140/kg/cm2 |
140/kg/cm2 |
140/kg/cm2 |
140/kg/cm2 |
| Hydraulic
pump drive motor |
7.5HP |
7.5HP |
7.5HP |
10HP |
| Rotary
drive motor |
2HP |
2HP |
2HP |
3HP |
|
Packing dimensions
|
| Length |
4200mm ( 13.75' ) |
4800mm ( 15.75' ) |
6300mm ( 20.35' ) |
7900mm ( 20.65' ) |
| Width |
2900mm ( 9.5' ) |
2900mm |
2900mm |
2900mm |
| Height |
3200mm ( 10.5' ) |
3200mm |
3200mm |
3200mm |
|
Machine weight
|
| N.W. |
7000kgs (15400 lb.) |
10500kgs (23100 lb.) |
13500kgs (29700 lb.) |
17500kgs (38500 lb.) |
| G.W. |
8000kgs (17600 lb.) |
12000kgs (26400 lb.) |
15000kgs (33000 lb.) |
20000kgs (44000 lb.) |
|
 |
HYDRAULIC
ROTARY COMPOSER
4
WORKING STATIONS
Working
length 2500mm ( 8.2' ), 3100mm ( 10.2' ), 4600mm ( 15.1'
), 6200mm ( 20.35' ).
Working
width 1000mm ( 3.25' ), 1300mm ( 4.25' ).
Working
thickness 100mm ( 4" ), 150mm ( 6" ).
|
|
|
