• Machine comes equipped with two sets of hydraulic core pulling device on the rotation plate. In addition, it also comes with cooling system in the molds.
• During operation, the rotation plate does not come in contact with the platen, thus reducing the possibility of damage caused by friction. Besides, with accurate confirmation of the rotation position, it can protect the mold themselves.
• Two isolated barrel sets inject at the same time, thereby reducing cycle time. The shorter cycle time increases productivity of the machine and hence helps to yield bigger profits.
• With an accuracy reaching 0.01mm, linear potentiometers are used in the two injection sets and clamping molds to accurately control the injection process and the closing and opening of molds.
• By PRO/ENGINEER computer aid designed clamping system, the clamp stroke and distance between bars have been enlarged for verstaile usage.
• High torque and excellent performance of hydraulic motor can drive screw directly, thus shortening plasticizing time and saving energy.
• Using only the finest steel and innovative ion-nitriding process, the hardness of screw and barrel reaches above HV950 to ensure high wear resistance.
• Superior hydraulic design system ensures the decrement of the tube pressure. Assembled with pump and motor, it can lower the machine's noise to 80DB below.
• With features such as limitations for screw cold starts, broken wire detection, etc., a PID temperature controller is used to control the temparature at ±1°C.
• Using water distributor with thermometer, molding quality can be improved through well control of temperature.
• Fully automatic lubrication device ensures excellent lubricating effect and assures machine's accuracy.
• Bad product detecting function recognizes short-shot or other abnormal products.
• Larger product dropping passage allows the machine be adoptable to to use with conveyor for fully automatic production.

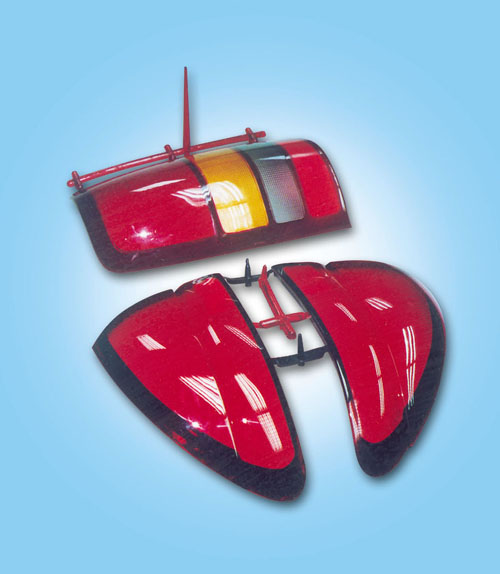

• With insert function, this type of machine can produce triple colored products.

　

Item	Unit	FB-1000R
		A	B
Injection Unit
Screw Diameter	mm	70	50
Injection Pressure	kgf/cm²	1622	2329
Theoretical Shot Volume	cm³	1539	589
Shot Weight of Injection (PS)	gram	1414	564
	ozs	49.7	19.8
Injection Rate	cm³/sec	248	180
Plasticizing Capacity (PS)	kg/hr	160	81
Screw Rotation Speed	rpm	100	110
Mould Clamping Unit
Mould Clamping Force	metric ton	1000
Mould Clamping Strokes	mm	1100
Mould Thickness	mm	700-1300
Distance b/w Tie Bars (HxV)	mm	1130x1130
Mould Platen (HxV)	mm	1700x1700
Ejector Stroke	mm	150
Rotary Table Diameter	mm	1600
Distance between Barrel Centers	mm	710
Min Distance between Molds	mm	-
Electrical Equipment
Pump Driving Motor	HP(KW)	80(59.7)
Temperature Controller	(RANGE)SET	2-(0-400°C)x5
Heater Capacity	KW	29.35x2
Others
Machine Dimensions (LxWxH)	mm	11200x2300x2500
Oil Tank Capacity	liter	1500
Machine Weight	metric ton	55
Max. System Pressure	kgf/cm²	140

*The shot weight is based on polystyrene at specific gravity of 1.05.
*Due to continuous improvements, we reserve the right to amend the above specifications without prior notice.
