• Have multi-loops according to mold conditions and molding requirements. In addition, share screw charge to the movements of opening & closing mold and ejectors move at the same time, thus shorten cycle time.
• Under the design of triple loops, the cycle time can achieve within 11 seconds excluding cooling time. According to the testing of produce 2.1kg beach chair by PP material, the cycle time can achieve within 33 seconds if adopting with good mold cooling system. It's top capacity than others.
• Drable usage by applying new series toggle system upon finite element analysis (FEA), high strength and weary-resistance to get long life of tie bars and assure quality of products.
• All new high rigid structure frame, design upon Finite Element Analysis (FEA) of stress and strain affect. Assure the excellent of frame structure, the AD-1000 was capable of this advantage improvement
• Design upon high frame, not necessary to device robot, obtain products from drop outlet, suitable for speedy molding operation.
• Apply to shut-off nozzle for injection.
• Fcs-2100 microcomputer controller (sampling time reach 1.25ms).

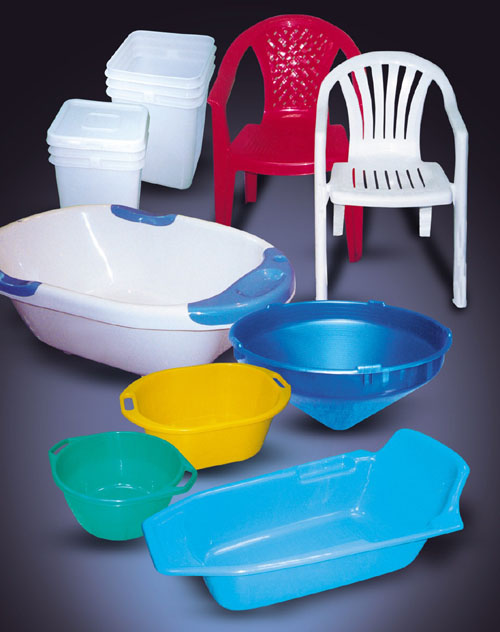

• Suitable for large housewares products, for example, beach chair, etc.

　

Items	Unit	AD-850	AD-1000
Injection Unit
Screw diameter	mm	100	105
Injection pressure	kg/cm²	1622	1644
Theoretical shot volume	cm³	3412	4320
Shot weight of injection	gram	3590	3970
	ozs	126	140
Injection rate	cm³/sec	1232	1600
Plasticizing capacity(ps)	kg/hr	803	720
Screw ratation speed	rpm	195	160
Mould Clamping Unit
Mould clamping force	metric tons	850	1000
Mould clamping strokes	mm	1000	1100
Mould thickness	mm	350-1200	400-1300
Suggested minimum mold dim.(HxV)	mm	625x625	690x690
Distance between tie bars(HxV)	mm	960x960	1060x1060
Mould platen(HxV)	mm	1480x1480	1620x1620
Elector stroke	mm	240	300
Electrical Equipment
Pump driving motor	HP(kw)	185(138)	200(149.2)
Temperature controller	(range)set	(0-400°C)x7	(0-400°C)x7
Heater capacity	kw	59.36	65.16
Others
Machine dimensions(LxWxH)	mm	13000x2300x2700	14000x2400x2800
Oil tank capacity	liter	2000	2500
Machine weight	metric tons	45	53.61

*The shot weight is based on polystyene at specific gravity of 1.05.
*Due to continuous improvements, we reserve the right to amend any of the above specifications without prior notice.
