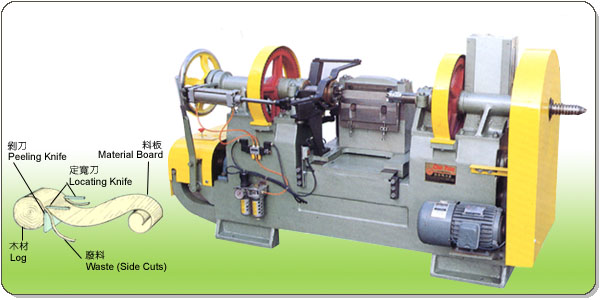

PEELING MACHINE CYM-031N
¡@
|
| Description: |
|
| DIAMETER OF
ORIGINAL WOOD |
70~600mm |
| LENGTH OF
ORIGINAL WOOD |
230~255mm |
| THICKNESS OF
PEELING |
4.5~5mm |
| R.P.M. |
47 OR 54 |
| HORSEPOWER |
2HP + 7 1/2
HP |
| N.W. |
1250 KGS |
| G.W. |
1430 KGS |
| MACHINE SIZE
(LxWxH) |
80"x62"x46" |
| PACKING SIZE
(LxWxH) |
88"x67"x51" |
|
¡@ |
PEELING MACHINE CYM-031A
¡@
|
| Description: |
|
|
|
CYM-031A |
CYM-031B |
| DIAMETER OF
ORIGINAL WOOD |
70~600mm |
70~600mm |
| LENGTH OF
ORIGINAL WOOD |
127~520mm |
127~762mm |
| THICKNESS OF
PEELING |
0.35~5mm |
0.35~3mm |
| R.P.M. |
40 OR 54 |
40 OR 54 |
| HORSEPOWER |
1/2HP + 7 1/2
HP |
1/2HP + 10HP |
| N.W. |
1080 KGS |
1170 KGS |
| G.W. |
1140KGS |
1330KGS |
| MACHINE SIZE
(LxWxH) |
99"x40"x40" |
110"x40"x45" |
| PACKING SIZE
(LxWxH) |
102"x43"x50" |
115"x43"x51" |
|
¡@ |

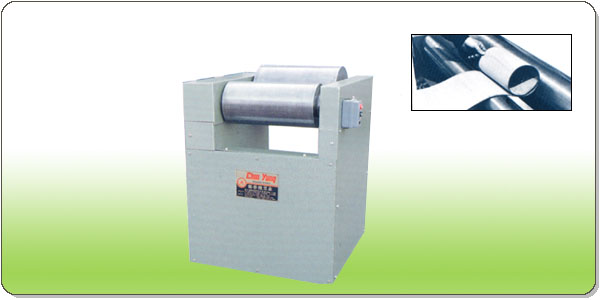

ROLLING MACHINE CYM-030A
|
| Description: |
|
| HORSEPOWER |
1/2 HP |
| N.W. |
110 KGS |
| G.W. |
160 KGS |
| MACHINE SIZE
(LxWxH) |
20"x23"x24" |
| PACKING SIZE
(LxWxH) |
25"x28"x34" |
|
¡@ |
MOLD FORMING MACHINE CYM-032B
|
| Description: |
|
| LENGTH OF
CUTTING |
203mm |
| WIDTH OF
CUTTING |
22mm |
| THICKNESS OF
CUTTING |
5mm |
| PRODUCTIVITY |
22500 PAIRS/HR |
| HORSEPOWER |
1 HP |
| N.W. |
320 KGS |
| G.W. |
400 KGS |
| MACHINE SIZE
(LxWxH) |
47"x30"x55" |
| PACKING SIZE
(LxWxH) |
52"x35"x65" |
|
¡@ |
DRYER CYM-083L
|
¡@
| By burning Bamboo or
Wood waste, this machine can produce vaporized firepower to dry
Bamboo & Wood Ware. The hot air temperature is kept at 10oC
to 75oC. |
| CAPACITY
OF WORKING TANK |
300000-400000 PAIRS |
| HORSEPOWER |
3HP |
| N.W. |
1000KGS |
| G.W. |
1150KGS |
| MACHINE
SIZE (LxWxH) |
77"x39"x86" |
| PACKING
SIZE (LxWxH) |
83"x45"x92" |
¡@
¡@ |

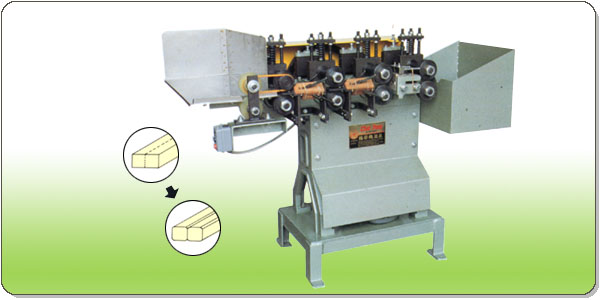

AUTO GROOVING AND EDGE SHAVING MACHINE
CYM-033
¡@
|
| Description: |
|
| PRODUCTIVITY |
7500 PAIRS/HR |
| R.P.M. |
355 |
| HORSEPOWER |
1 HP |
| N.W. |
170 KGS |
| G.W. |
200 KGS |
| MACHINE SIZE
(LxWxH) |
48"x27"x37" |
| PACKING SIZE
(LxWxH) |
45"x32"x48" |
|
¡@ |

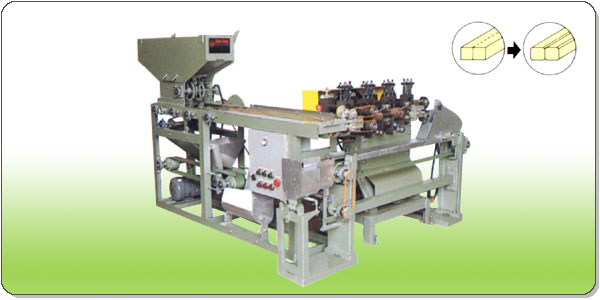

AUTO GROOVING AND EDGE SHAVING MACHINE
CYM-033B
|
| Description: |
|
| PRODUCTIVITY |
170~250 PAIRS/MIN |
| HORSEPOWER |
1 HP+1/4
HP+1/2 HP |
| N.W. |
440KGS |
| G.W. |
600 KGS |
| MACHINE SIZE
(LxWxH) |
83"x67"x51" |
| PACKING SIZE
(LxWxH) |
88"x72"x59" |
|
¡@ |

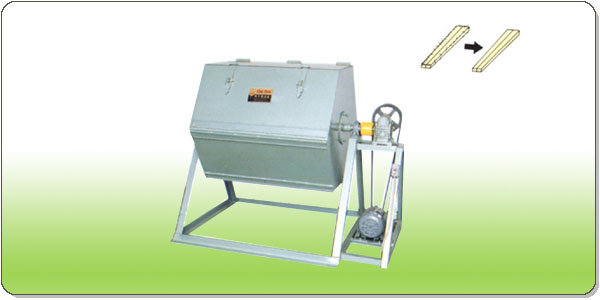

HEXAGON SHAPE POLISHING MACHINE CYM-651
|
| Description: |
|
| CAPACITY OF WORKING TANK |
17CUFT |
| R.P.M. |
20 |
| HORSEPOWER |
1/2HP |
| N.W. |
180KGS |
| G.W. |
240KGS |
| MACHINE SIZE (LxWxH) |
57"x42"x47" |
| PACKING SIZE (LxWxH) |
63"x47"x59" |
|
¡@ |

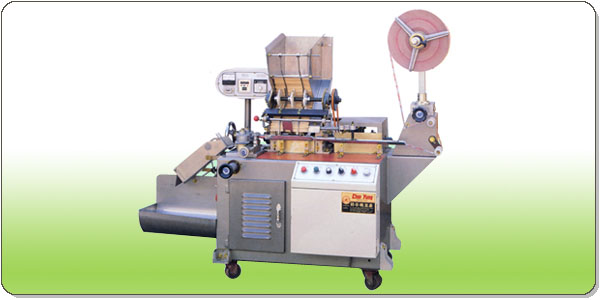

AUTOMATIC CHOPSTICK PACKING MACHINE CYM-049
|
| MATERIALS |
CPP,OPP |
| WIDTH OF PAPER |
40mm~45mm |
| LENGTH OF PACKING |
230mm |
| PRODUCTIVITY |
120~180PCS/MIN |
| ELECTRIC HEATING |
300W |
| HORSEPOWER |
1/8 HP DC |
| N.W. |
220 KGS |
| G.W. |
320 KGS |
| MACHINE SIZE (LxWxH) |
66"x26"x46" |
| PACKING SIZE (LxWxH) |
63"x30"x50" |
|
