Cotton Buds Working Machine

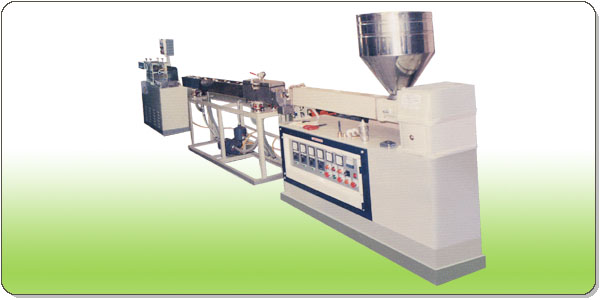

PP STRAW MAKING MACHINE
CYM-085A/1C
Description:
Compact designed extruder with vacuum calibration equipment straw pipes, from 3mmto 6mm.
Space economizing construction, low-noice operation as well as long durability.
All controls incorporated in the extruder frame.
High speed, automatic haul-off cutter is equipped.
Available for single; two and/or three colours straw making.

¡@

PP MAQUINA DE FABRICAR SORBETOS
Extrusora disenada compacta con calibacion de vacuum equipo de sorbetos desde 3mm to 6mm.
Construccion economica de espacio, minimo ruido operation como tambien larga vida.
Todo controles incorporado en el cuerpo de extrusora.

Alta velocidad, cortador automatico equipado.
Disponible para un color; dos y/o tres colores fabricadora de sorbetos.

OPTIONAL EQUIPMENTS:
 Cotton stick making machine
Helical straw making machine is available
Model CYM-085A/1C
Feature Material P.P
Color
 1
Product dia m/m 3-6
Product length m/m 125-300
Capacity pc/min 300-500
Extruding output range kg/hr 10-25
Extruder Surew dia m/m 45
Screw l/d 25:1
Motor HP VS 7.5
Heater capacity Kw 6
Speed control Variable
Automatic thermo-controller set 4
Take up & Cutting unit Take up roll set 2
Motor HP DC 1x1 set
Cutting knife set 1
Air compressor HP 1
Other Total electric used Kw 14
Extruder LxWxH m 1.9x1.25x1.65
Vacuum cooling tank LxWxH m 2.6x0.5x1.3
Cutting unit LxWxH m 1.3x0.65x1.2
Dimension LxWxH 6.8mx1.25mx1.65m
Packing size inch 111"x77"x56"
Machine weight ton 1
All specification and design are subject to change without notice.
 Toda la especificacion y el deseno estan sujeto a cambios sin aviso.

¡@

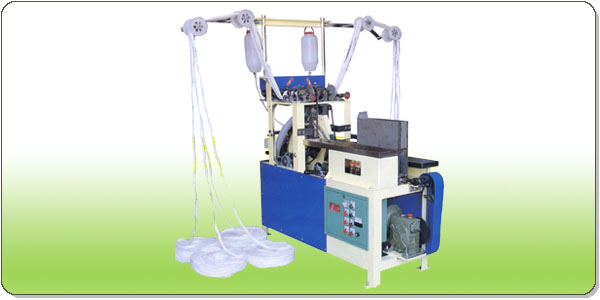

AUTOMATIC COTTON BUDS(BOTH ENDS) MAKING MACHINE
CYM-086C


MATERIALS AVAILABLE BAMBOO, WOOD, PLASTIC, PAPER
LENGTH OF COTTON BUDS 72m/m
PRODUCTIVITY PER 8 HRS 800-1200 PCS/MIN
HORSEPOWER 1/4HPx2+1/2HP+1HP
N.W. 420 KGS
G.W. 600 KGS
MACHINE SIZE (LxWxH) 66"x79"x71"
PACKING SIZE (LxWxH) 85vx39"x62"

¡@

AUTOMATIC COTTON BUDS(ONE END)
CYM-086D
MATERIALS AVAILABLE BAMBOO, WOOD
LENGTH OF COTTON BUDS 6"
PRODUCTIVITY PER 8 HRS 400-500 PCS/MIN
HORSEPOWER 1HP DCx1, 1/4HPx1
N.W. 380 KGS
G.W. 560 KGS
MACHINE SIZE (LxWxH) 66"x57"x71"
PACKING SIZE (LxWxH) 85"x39"x62"

¡@

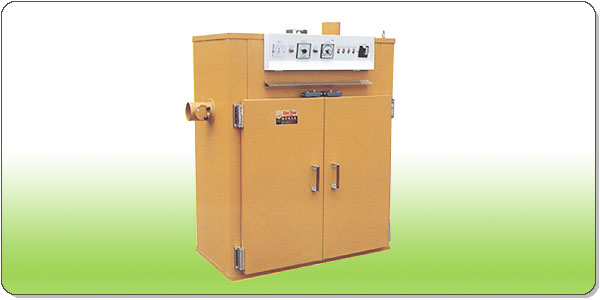

DRYING MACHINE CYM-087
HORSEPOWER 1HP
N.W. 210KGS
G.W. 300KGS
MACHINE SIZE (LxWxH) 54"x34"x68"
PACKING SIZE (LxWxH) 60"x40"x77"

¡@

¡@

Specification are subject to change without notice for improvement

¡@

¡@
