卡車式高空作業車

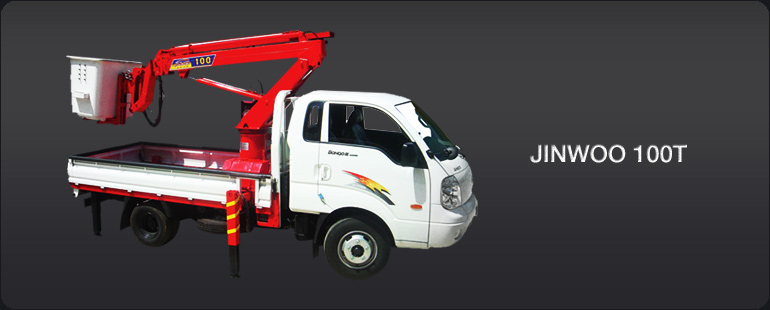

JINWOO 100T/ 100A
| description | unit | JINWOO 100T | |
|---|---|---|---|
| Mounting Truck | Hyundai RHD | tons | Above 1 |
| Safe load on cage | freight/ loading (inclusive of Operator) |
kgs | 150 |
| Automobile Truck | length | MM | 5,720 |
| height | MM | 2,785 | |
| width | MM | 1,740 | |

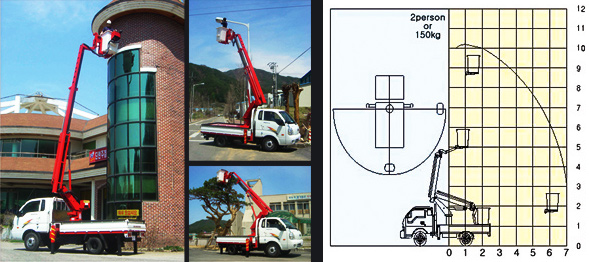

| working range | max. working height | m | 10 |
| max. working outreach | m | 7 | |
| platform | length | MM | 900 |
| height | MM | 900 | |
| width | MM | 700 | |
| telescopic boom | cross section | - | square |
| singular booms | - | 3only | |
| retraction type | - | cylinder | |
| column | type | - | reduction slewing ring gear |
| rotation angle | degrees | 270 | |
| hydraulic pump drive | engine type | - | P.T.O |
| outer rigger | length | MM | 2,200 |
| retraction type | - | cylinder | |
| type | - | H type | |
| control system | type | - | Joystick on Vehicle |
| remote control | - | Wire/Wireless, Joystick with Walkie-Talkie option | |
| description | unit | JINWOO 100A | |
|---|---|---|---|
| configured vehicle | tons | Above 1 | |
| Safe load on cage | freight/ loading (inclusive of Operator) |
kg | 150 |
| working range | max. working height | m | 10 |
| max. working outreach | m | 5 | |
| platform(fixed) | length | MM | 900 |
| height | MM | 1,100 | |
| width | MM | 700 | |
| turret or turntable | type | - | Hydraulic |
| rotation angle | degrees | 270 | |
| hydraulic pump drive | engine type | - | P.T.O |
| electrical motor | - | Option | |
| outer rigger | width | MM | 2,200 |
| retraction type | - | Hydraulic | |
| type | - | H type | |
| control system | type | - | Lever |
| wired remote control | - | Optional | |
| cross section | - | Rectangular | |
| boom | singular booms | - | Articulating 3 only |
| retraction type | - | Cylinder | |
