• The world’s first Non-Stop baler wrapper
• operates fully automatically
• bales, wraps and unloads on the move
• produces up to 50 % more bales per hour
• reduces strain on the operator, tractor and baler
• offers superior comfort and fully automatic processes
• uses the Tractor Implement Management system (TIM), which controls crop flow and bale densities, with the baler actually controlling the tractor’s ground speed
• has its own on-board hydraulic system
• produces variable-diameter bales from 1.25 to 1.50 metres (4'1" to 4'11")
• offers versatile use in silage, hay and straw

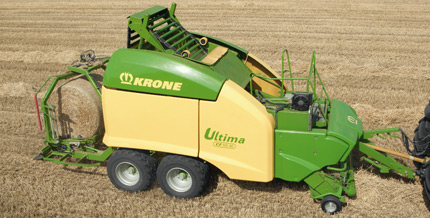

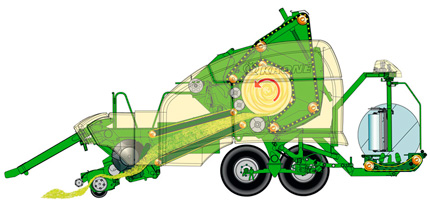

Ultima is the world’s first baler wrapper that is able to continue collecting crop while the finished bale is being transferred to the wrapping unit. This non-stop operation is facilitated by a pre- compression chamber, which collects and pre-compresses the incoming crop while the previous bale is being tied or net wrapped and transferred to the wrapping unit. This design increases the bale count per hour by up to 50 % over bale counts on established round baler wrapper systems. The bale is transferred very rapidly and simply by gravity. The TIM tractor implement management system takes strain off the operator and allows the baler to control the tractor’s ground speed, ensuring smooth operation while delivering highest bale densities.

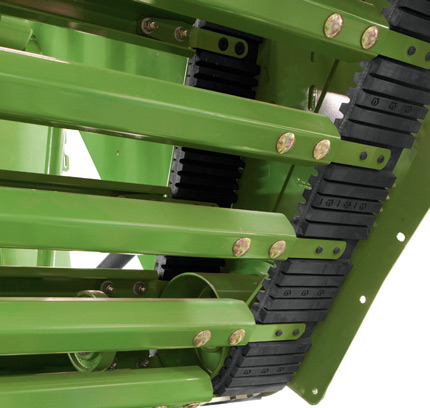

Semi-variable bale chamber
Producing 1.25 m to 1.50 m (4'1" to 4'11") diameter bales, the semi-variable bale chamber uses the KRONE NovoGrip elevator with endless rubber fabric belts and metal slats, which provide positive bale roll in all conditions to achieve unsurpassed densities.

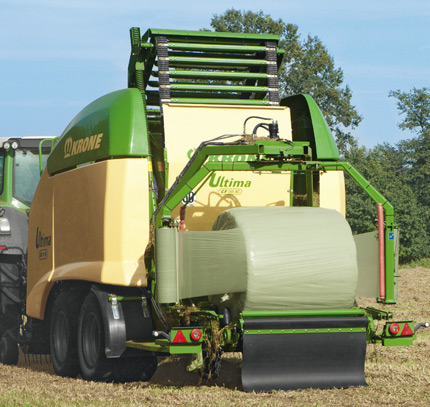

Two work faster than one
To match the high machine output, twin arms are used to wrap the bale with 750 mm (2'6") film, orbiting around the bale at high speeds. Monitored by sensors, the wrapping system will go automatically into single-arm mode, if one film breaks or ends.

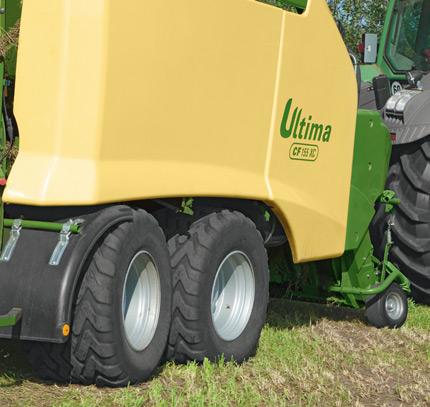

Tandem axle
The castering boogie axles with parabolic springs provide ample travel and evenly distribute the machine weight between them when running on fragile soil. The boogie axle is approved to 60 km/hr (38 mph).

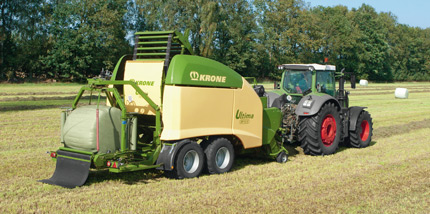

Ultimate efficiency
Baling straw bale after straw bale without ever stopping, the semi-variable bale chamber produces up to 1.50 m (4'11") diameter bales. Ultima is the ideal machine in hay and straw, where it works Non-Stop, transferring and unloading the finished bales on the move. Compared with existing baler wrapper designs, which net wrap and unload the bales only from the stationary machine, this breakthrough solution leads to unmatched gains in throughput. ‘Ultima’ stands for ultimate performance in silage, hay and straw.
