環境衛生 / 病蟲害噴霧機







CITY-460-Plus ECOLOGY TIFONE

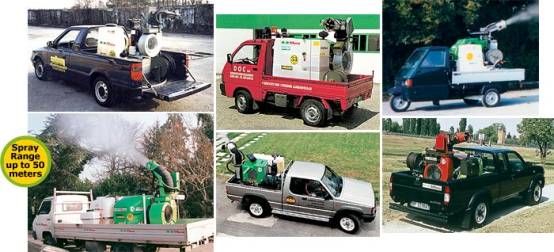

The CITIZEN-CITY is a quite innovative Spray Equipment for general purpose Pest Control.
Quite compact in width, length and height, it suits perfectly also Double Cab on pick-ups where plate form length is very reduced. Its compactness also means good back and side visibility for comfort operation and safety in use.
All operational Controls are from ergonomic control-box in cab.
Circuit rinsing tank system is integrated in the bottom front side of the unit, thus ensuring a wonderful lower centre of gravity for a comfortable-safe driving.
Citizen CITY-460-Plus ecology allows different spray and fogging interventions:
- with Liquid pesticide mixture (from main tank, 450 litres)
- with Non-Dilute Pesticides (injected in the spray circuit by Microdosing Pump)
- with Thermo-fogging emission (by additional Thermofogger unit as an accessory)

With Liquid pesticide mixture (from main tank, 460 litres)
- by Flexigun : the omni-orientable Cannon that allows pointing and spraying over 240° vertically and 300° horizontally (for long range spraying)
- SuperMitra Long range, Hand- Lance (for places not reachable with the pick-up)
- Vertical continuous automatic brush spraying (for edges, walls , etc.)
- Horizontal continuous automatic brush spraying (for golf courts, meadows, etc.)
- Fert'Injector : for liquid ground injections (for trees roots feeding)
- Fert'Air2-Injector : for liquid ground injections (for trees roots oxygenation + feeding)
- Starjet-Penetrator hand-lance (to safely spray blossomed bushes from "inside")
- Pneumatic hand-lance (for high density soft spray )

Non-Diluted Pesticides (injected in the spray circuit by Microdosing Pump)
- by Flexigun : the omni-orientable Cannon that allows pointing and spraying over 240° vertically and 300° horizontally (for long range spraying)
- SuperMitra Long range, Hand- Lance (for places not reachable by the pick-up)
- Vertical continuous automatic brush spraying (for edges, walls , etc.)
- Horizontal continuous automatic brush spraying (for golf courts, meadows, etc.)
- Starjet-Penetrator (to spray blossomed bushes from "inside")
- Pneumatic spray lance (for high density soft spray )

Thermo-fogging emission (by additional Thermofogger unit as an accessory)
- by Flexigun : the omni-orientable Cannon that allows pointing and spraying over 240° vertically and 300° horizontally (for long range fogging)
- by flexible metal-hose (for sewerages, silos, warehouses, etc.)

Generally speaking, the Citizen CITY-460-Plus ecology is suitable for a lot of different interventions for DESINSECTIZATION - AND ENVIRONMENT SANITATION in :
• Boulevard Trees, parks and gardens
• Green
• Edges
• Banks
• Bushes in blossom
• Discharge areas
• Stables and Breeding sites
• Sewerages
• Warehouses and silos
• Trees root Fert'injection
• Soil decompacting



FAST LOADING - UNLOADING : JUST 30 SECONDS !

The possibility of a fast Loading - Unloading of the Pest Control Spray machine on and from the pick-up, is a precious functionality, very appreciated and requested by the Users.
On all its Municipality Spray Units Citizen and CITY-460-Plus ecology, TIFONE have introduced an exclusive system allowing to get the unit free in only 20 seconds and to unload it by a forklift or by a hoist in 10 seconds. In a total 30 seconds time the pick-up will be free and ready to be utilized for other works.
Equally easy and fast the loading and locking of the unit on the pick-up back again.

FAST LOADING - UNLOADING : JUST 30 SECONDS !

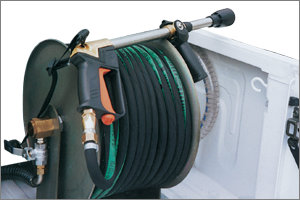

Manual Hose reels, with rubber hose 50 or 100 metres, high pressure,
with long range spray gun

Manual Hose reel with:
• pressure up to 150 bar and more
• steel manufacturing, “army”galvanized
• bearings in bronze w/greasing facility
• quiver for Spray gun
• Spray

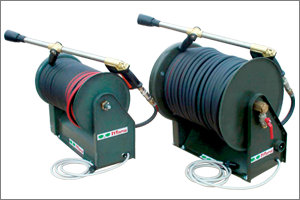

Electric Hose reels 70 and 100 metres with long range spray gun

Electric Hose reels : by ELECTROMOTOR, 12V, DC
• Electromotor 12V, DC
• pressure up to 150 bar
• steel manufacturing, “army”galvanized
• bearings in bronze w/greasing facility
• quiver for Spray gun
• safety guard.
• Spray gun



Tank

Motor

Type

Pump

Lt/min

bar

Range
(m)

Weight
(Kg)

Dimensions
(La x Lu x H cm)

  300 It Kompact

Diesel
Water Cooled

Mini-Citizen
24 HP

55

0 - 40

20 - 25

300

84 x 130 x 160

Diesel
Air Cooled

Mini-Jolly
10 HP

48

0 - 40

15 - 18

217

84 x 130 x 135

Mini-Citizen
29 HP

55

0 - 40

25 - 30

305

84 x140 x 150

Tank

Motor

Type

Pump

Lt/min

bar

Range
(m)

Weight
(Kg)

Dimensions
(La x Lu x H cm)

  400 It Kompact

Diesel
Water Cooled

Citizen 24 HP

55

0 - 40

20 - 25

320

101 x 150 x 150

Citizen 33 HP

55

0 - 40

25 - 30

385

101 x 150 x 150

Citizen 42 HP TURBO

55

0 - 40

30 - 33

392

101 x 150 x 150

Citizen 48 HP

55

0 - 40

33 - 35

460

101 x 155 x 150

Citizen 60 HP TURBO

55

0 - 40

35 - 40

500

101 x 155 x 150

Diesel
Air Cooled

Citizen 10 HP

55

0 - 40

15 - 18

335

101 x 150 x 100

Citizen 29 HP

55

0 - 40

25 - 30

398

101 x 150 x 100

Citizen 42 HP

55

0 - 40

30 - 33

370

101 x 150 x 100

Tank

Motor

Type

Pump

Lt/min

bar

Range
(m)

Weight
(Kg)

Dimensions
(La x Lu x H cm)

  500 It Kompact

Diesel
Water Cooled

Citizen 24 HP

55

0 - 40

20 - 25

330

101 x 150 x 150

Citizen 33 HP

55

0 - 40

25 - 30

395

101 x 150 x 150

Citizen 42 HP TURBO

55

0 - 40

30 - 33

402

101 x 150 x 150

Citizen 48 HP

55

0 - 40

33 - 35

460

101 x 155 x 160

Citizen 60 HP TURBO

55

0 - 40

35 - 40

510

101 x 155 x 160

Diesel
Air Cooled

Citizen 10 HP

55

0 - 40

15 - 18

345

101 x 150 x 100

Citizen 29 HP

55

0 - 40

25 - 30

408

101 x 150 x 100

Citizen 42 HP

55

0 - 40

30 - 33

380

101 x 150 x 100

Tank

Motor

Type

Pump

Lt/min

bar

Range
(m)

Weight
(Kg)

Dimensions
(La x Lu x H cm)

  465 lt. City

Diesel
Water Cooled

City 460-24

55

0 - 40

20 - 25

320

101 x 145 x 140

City 460-33

55

0 - 40

25 - 30

370

101 x 145 x 140

City 460-42 TURBO

55

0 - 40

30 - 33

392

101 x 145 x 140

City 460-48

55

0 - 40

33 - 35

460

101 x 150 x 145

City 460-60 TURBO

55

0 - 40

35 - 40

500

101 x 150 x 145

Tank

Motor

Type

Pump

Lt/min

bar

Range
(m)

Weight
(Kg)

Dimensions
(La x Lu x H cm)

  400/600/800/1000 It Gruppo

Diesel
Water Cooled

Citizen 60 HP TURBO

55

0 - 40

35 - 40

550

156 x 250 x 180

Citizen 84 HP TURBO

100

0 - 50

40 - 50

1052

156 x 255 x 190

Diesel
Air Cooled

Citizen 90 HP

100

0 - 50

40 - 50

1052

156 x 255 x 190
