農業曳引機

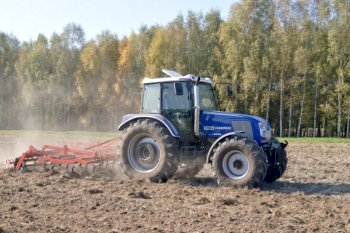

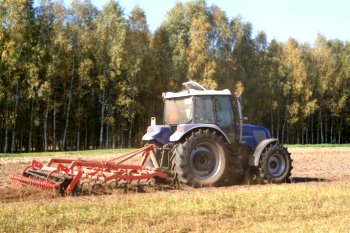

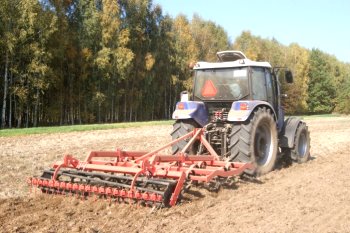

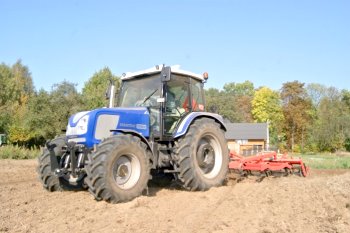

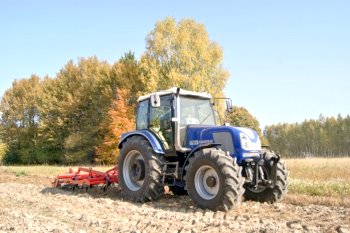

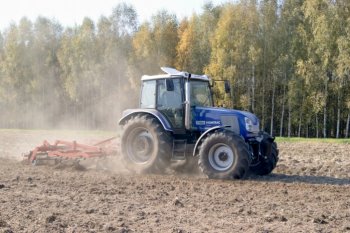

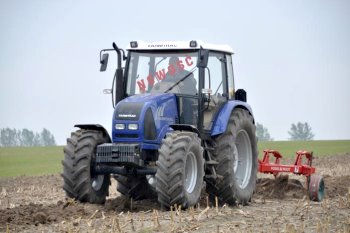

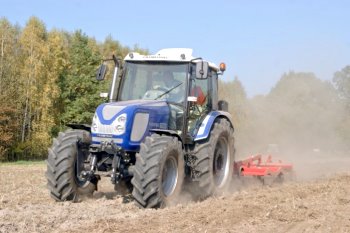

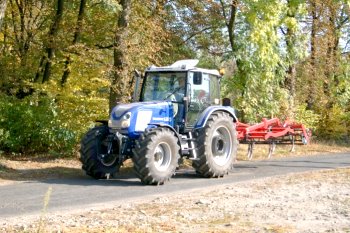

7100-7110DT 機型

產品目錄下載



7100DT Full Specifications (規格說明)

PERFORMANCE (性能)

ENGINE RATED POWER

72KW[98HP] @ 2300 RPM

MAXIMUM TORQUE

384Nm @ 1400 RPM

ENGINE  (引擎)

TYPE

PERKINS 1104D-44T

NO OF CYL./CAPACITY[CM³]

4/4400 TURBO

COOLING SYSTEM

liquid

AIR CLEANER

two-stage dry type

TRANSMISSION (變速箱)

CLUTCH/PTO

two disc type with independent PTO clutch control

GEARBOX TYPE

constant mesh,synchronized with shuttle,reduction,range and creeper unit

NUMBER OF GEARS F/R

36+16, 40 km/h

DIFFERENTIAL LOCK

electro-hydraulic

POWER TAKE OFF (動力輸出裝置)

TYPE

independent and ground speed PTO

PTO SHAFT SPEED/ENGINE RPM

540/1000, 430/750,

SHAFT DIA./NO.OF SPLINES

35mm/6 DIN9611

HYDRAULIC LIFT (液壓升降)

FUNCTIONS

draft and position control

PUMP OIL FLOW, LITER/MIN

57

NOMINAL PRESURE Mpa

18

3-POINT HITCH

2 kat. ISO 730-1, automatic couplings

Max. LIFT CAPACITY, [kg]

4900

NO. OF SPOOL VALVES

3

STEERING (轉向)

TYPE hydrostatic

BRAKES (剎車)

SERVICE BRAKE oil immersed disc type,hydraulic actuated service brake
PARKING BRAKE mechanical actuation parking brake

FRONT AXLE (前軸)

TYPE CARRARO swivel pin mounted with final drive, automatic differential lock

TYRES (輪胎)

FRONT 420/85R24
REAR 480/70R38

TOWING-HITCH UNITS

Type

front towing hitch,upper transport hitch,multi-hole drawbar

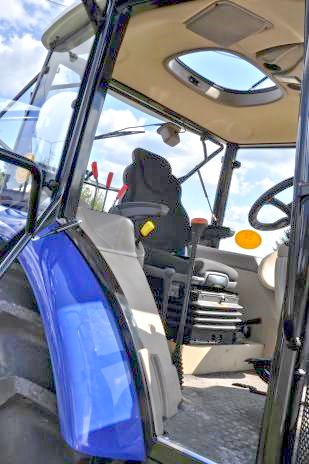

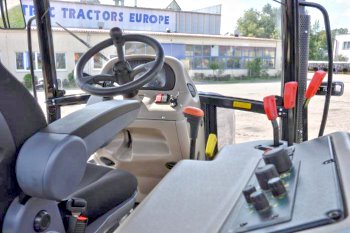

SAFETY CAB

TYPE

comfort,safety,twoo door,low noise

EQUIPMENT

heating,ventilation,roof hath,sun visor,windscreen washer,front and rear window washer,side mirrors,front and rear work lamps at the cab roof

DIMENSIONS (mm) WEIGHT (kg) 外形尺寸（mm）重量（kg）

LENGHT

4071 - 4455

WIDTH

1936 - 2457

HEIGHT

2646 - 2776

CLEARANCE

298 - 428

TRACTOR WEIGHT [kg]

4600

CAPACITY (litre) 容量（L）

FUEL TANK

160

ENGINE LUBRICATION

9,5

COOLING

15

GEAR BOX/REAR AXLE + REDUCTION GEAR

35
