農業曳引機
675/675DT 機型
|
ENGINE RATED POWER |
55KW[75HP] @ 2200 RPM |
|---|---|
|
MAXIMUM TORQUE |
307Nm @ 1400 RPM |
|
TYPE |
PERKINS 1104D-44T |
|---|---|
|
NO OF CYL./CAPACITY[CM³] |
4/4400 TURBO |
|
COOLING SYSTEM |
liquid |
|
AIR CLEANER |
two-stage dry type |
|
CLUTCH/PTO |
two disc type with independent PTO clutch control |
|---|---|
|
GEARBOX TYPE |
constant mesh, synchronized with shuttle and reduction unit |
|
NUMBER OF GEARS F/R |
12\\12 |
|
DIFFERENTIAL LOCK |
mechanical |
|
TYPE |
independent and ground speed PTO |
|---|---|
|
PTO SHAFT SPEED/ENGINE RPM |
540/1938 / 675DT 1000/1963 |
|
SHAFT DIA./NO.OF SPLINES |
35mm/6 |
|
FUNCTIONS |
draft and position control |
|---|---|
|
PUMP OIL FLOW, LITER/MIN |
34 |
|
NOMINAL PRESURE Mpa |
18 |
|
3-POINT HITCH |
3 kat. Iso 730-1 |
|
Max. LIFT CAPACITY, [kg] |
2400 |
|

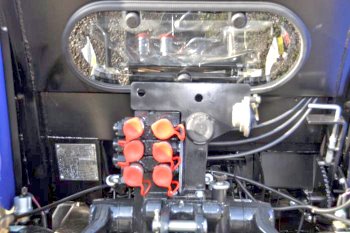

NO. OF SPOOL VALVES |
4 |
|
TYPE |
hydrostatic |
|---|
|
SERVICE BRAKE |
oil immersed disc type, mechanically actuation |
|---|---|
|
PARKING BRAKE |
hand lever actuation |
|
TYPE |
Carraro swivel pin mounted with final drive, automatic differential lock |
|---|
|
FRONT |
675 (7,50 - 16) / 675DT (11,2 - 24) |
|---|---|
|
REAR |
16,9 - 30 |
|
Type |
front towing hitch, upper transport hitch, multi-hole drawbar |
|---|
|
TYPE |

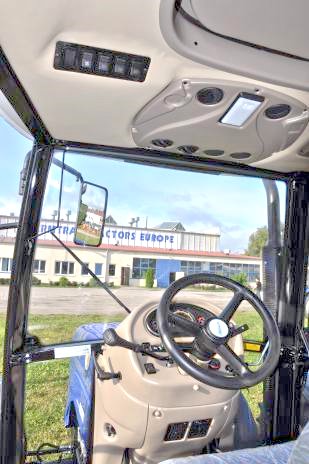

comfort,safety,twoo door,low noise |
|---|---|
|
EQUIPMENT |
heating, ventilation, roof hath, sun visor, windscreen washer, front and rear window washer, side mirrors, front and rear work lamps at the cab roof |
|
LENGHT |
3726 - 4190 |
|---|---|
|
WIDTH |
1939 - 2375 |
|
HEIGHT |
2490 - 2505 |
|
CLEARANCE |
390 - 405 |
|
TRACTOR WEIGHT [kg] |
675 (3308) / 675DT (3585) |
|
FUEL TANK |
98 |
|---|---|
|
ENGINE LUBRICATION |
9 |
|
COOLING |
17 |
|
GEAR BOX/REAR AXLE + REDUCTION GEAR |
34 |
 |
 |
 |
 |
 |
 |
