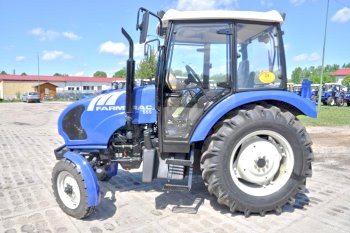

農業曳引機
555&555DT 機型
|
ENGINE RATED POWER |
35 KW (47,6HP) @ 2000 RPM |
|---|---|
|
MAXIMUM TORQUE |
200 Nm @ 1200 RPM |
|
TYPE |
AF3.315B |
|---|---|
|
NO OF CYL./CAPACITY[CM³] |
3/3146 |
|
COOLING SYSTEM |
liquid |
|
AIR CLEANER |
two-stage dry type |
|
CLUTCH/PTO |
two disc type with independent PTO clutch control |
|---|---|
|
GEARBOX TYPE |
constant mesh, mechanical |
|
NUMBER OF GEARS F/R |
8/2R |
|
DIFFERENTIAL LOCK |
mechanical |
|
TYPE |
independent PTO |
|---|---|
|
PTO SHAFT SPEED/ENGINE RPM |
540/1811 |
|
SHAFT DIA./NO.OF SPLINES |
35mm/7 |
|
FUNCTIONS |
draft and position control |
|---|---|
|
PUMP OIL FLOW, LITER/MIN |
34 |
|
NOMINAL PRESURE Mpa |
17 |
|

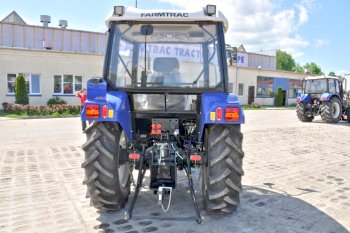

3-POINT HITCH |
2 kat. Iso 730-1 |
|
Max. LIFT CAPACITY, [kg] |
555 (1400)/555DT (1050) |
|
NO. OF SPOOL VALVES |
2 |
|
TYPE |
hydrostatic |
|---|
|
SERVICE BRAKE |
oil immersed disc type, mechanically actuation |
|---|---|
|
PARKING BRAKE |
hand lever actuation |
|
TYPE |
adjustable front axle |
|---|
|
FRONT |
555 (6 - 16) / 555DT (9,5 R20) |
|---|---|
|
REAR |
555 / 555DT (14,9 - 28) |
|

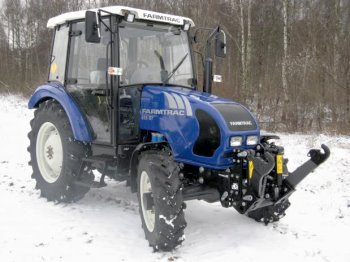

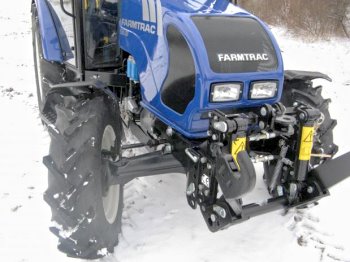

Type |
front towing hitch, upper transport hitch, multi-hole drawbar |
|---|
|

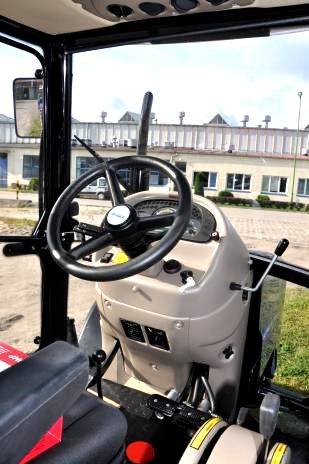

TYPE |
comfort,safety,twoo door,low noise |
|---|---|
|

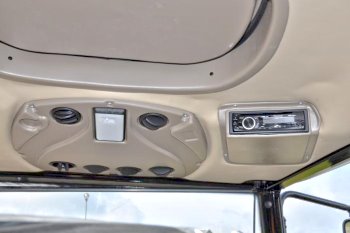

EQUIPMENT |
heating, ventilation, roof hath, sun visor, windscreen washer, front and rear window washer, side mirrors, front and rear work lamps at the cab roof |
|
LENGHT |
555 (3430) / 555DT (3489 - 3760) |
|---|---|
|
WIDTH |
1665 - 2377 |
|
HEIGHT |
555 (2365 - 2402 / 555DT (2410 - 2430) |
|
CLEARANCE |
555 (272) / 555 DT (300) |
|
TRACTOR WEIGHT [kg] |
555 (2773) / 555DT (2933) |
|
FUEL TANK |
82 |
|---|---|
|
ENGINE LUBRICATION |
7 |
|
COOLING |
15 |
|
GEAR BOX/REAR AXLE + REDUCTION GEAR |
35 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
