FEATURES
Automatic self-priming system
Simple maintenance limited to checking fluid levels and filters
Liquid bath mechanical seal for dry-running and reduced maintenance
costs
Abrasion-resistant silicon carbide seal faces for trouble-free
performance
Emissions compliant engines available
VERSATILE HIGH VOLUME,
MEDIUM HEAD, SOLIDS HANDLING PUMP

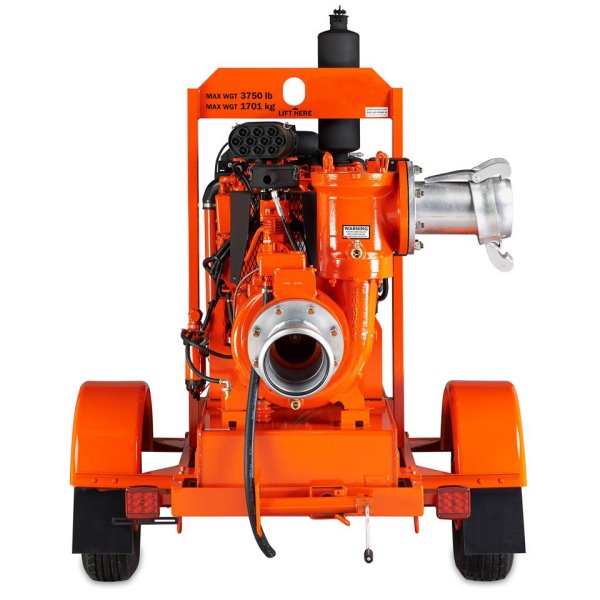

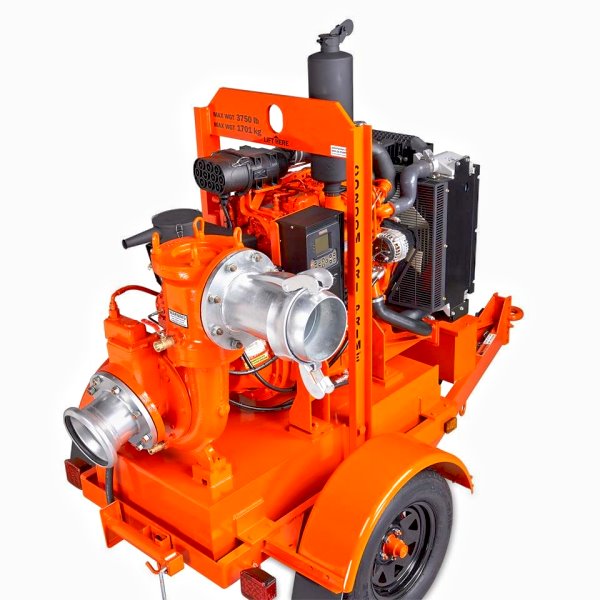

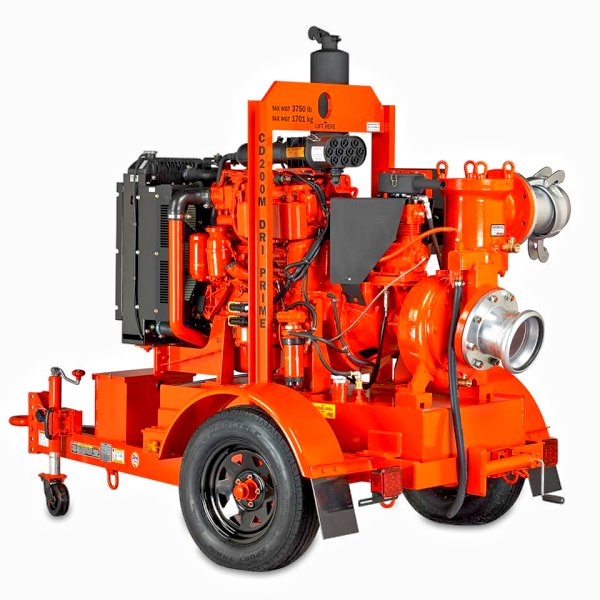

The WE-CD200 pump offers flow rates up to 2,290 US GPM (520 m³/hr), and has
the capability to handle solids up to 3.0 in (75 mm) in diameter.
The WE-CD200 is able to automatically prime to 28 ft (8.5 m) of suction
lift. Automatic or manual starting/stopping available with mounted
control panel or optional wireless remote access.
Indefinite dry-running is no problem due to the unique Godwin liquid
bath mechanical seal design. Solids-handling, dry-running, and
portability make the WE-CD200 the perfect choice for dewatering, water
transfer, and bypass applications.
AVAILABLE OPTIONS
Diesel engine driven, natural gas engine or electric motor driven
316 or CD4MCu stainless steel pump-end construction for high and low pH
applications
Highway trailer or skid mount, both incorporating integral overnight
running fuel tanks
PrimeGuard engine controller with Field Smart Technology (FST)
|
