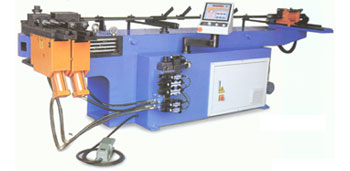

CR-B50SQ
|
| |
|

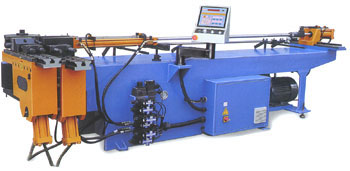

CR-B80SQ
|
| |
|
CR-B130
CR-B160SQ
CR-B200SQ
|
|
- Suitable
for the bending of large pipes. The bending angles can be
adjusted freely from 0¢X to 180¢X.
- We can
supply wide range of machines for the bending of pipes with
O.D. from 60mm to 203mm (8"). We also supply expertise in
pipe-bending to customers.
- Adopts
solenoid valve and integrated circuit to control every motion
separately. This extends the life of hydraulic system
components.
- Three-step
circuit has cooling and sedimentation function to keep the
hydraulic oil from deteriorating.
- Main
shaft is specially heat-treated and the bending arm is made of
specially forged steel. All the parts are made under very
strict quality control to maintain machine quality and
standardized specifications.
- The
machine is equipped with emergency stop device.
- Both
manual and automatic operation are available.
- Various
angle can be set. You can bend one pipe with several bendings
on just one machine to reduce time needed for re-loading and
unloading among different machines.
- The
control panel has clear description for every button/gauge, so
non-technicians can still operate the machine correctly.
- Can be
equipped with an automatic feeding device. This device has the
function of pipe-length setting up. In addition, this unit (NC
type) can perform 10-angle bending simultaneously, with the
use of a Japanese encoder. Due to these two factors, this
machine can produce many kinds of sophisticated/complicated
pipe-bending as per customer requirements, with much lower
labor requirements than other brand machines.
- With our
NC type machines, clients can bend the pipes as desired with
adjustment at the following three points:
(1) Stroke of automatic feeding device
(2) The angle of bending
(3) Number of feeding
|
|
| MODE |
O.D.*Wall |
Bending Radius(mm) |
Bending Degree |
Horse Power |
Total Length |
Total Width |
Total Height |
Total Weight |
Bending Speed |
Angle |
| CR-B50 |
60*4 |
20~450 |
0¢X~190¢X |
10HP |
4100mm |
1250mm |
1350mm |
2000kg |
90¢X5~6/sec |
4 |
| CR-B80SQ |
80*5 |
30~450 |
0¢X~190¢X |
15HP |
4100mm |
1300mm |
1350mm |
2800kg |
90¢X7~8/sec |
4 |
| CR-B100 |
100*6 |
40~450 |
0¢X~190¢X |
25HP |
4800mm |
1400mm |
1380mm |
3600kg |
90¢X10~12/sec |
4 |
| CR-B130 |
130*7 |
55~450 |
0¢X~190¢X |
35HP |
5200mm |
1600mm |
1400mm |
3900kg |
90¢X12~14/sec |
4 |
| CR-B160SQ |
165*8 |
70~450 |
0¢X~190¢X |
40HP |
5200mm |
1700mm |
1400mm |
4800kg |
90¢X13~16/sec |
4 |
| CR-B200SQ |
215*10 |
85~750 |
0¢X~190¢X |
50HP |
5600mm |
1700mm |
1400mm |
6600kg |
90¢X15~18/sec |
4 |
¡@
