CR-A38SA
(Vertical model)
|
- Adopting
solenoid valve and integrated circuit to control every
motion separately. That extends the life of the parts of
hydraulicsystem.
- Three-step
circuit is with the functions of cooling &
sedimentation to keep hydraulic oil from deterioraion.
- Main
shaft is heat-treated specially and the bending arm is
made of special forged steel. All the parts are made
under very strict quality control so that the quality of
machine is good & the specification is standardized.
- The
machines is with emergency stop device.
- The
control panel has clear description for every button ,
so non-technician still can operate our machine
correctly.
|

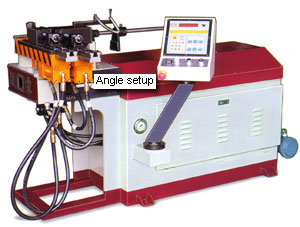

CR-A38S
(Horizontal model)
|
|
|
|
TYPE |
O.D.*Wall |
Range
of Radius(mm) |
Range
of Bending |
Horse
Power |
Total
Length |
Total
Width |
Total
Height |
Total
Weight |
Range
of Bending Speed |
Angle |
CR-A38S |
38*2.5 |
10~350 |
0¢X~210¢X |
5HP |
1500mm |
700mm |
1000mm |
700kg |
90¢X3~4/sec |
1 |
CR-A38SA |
38*2.5 |
10~350 |
0¢X~180¢X |
5HP |
1500mm |
700mm |
1000mm |
700kg |
90¢X3~4/sec |
1 |
|
¡@ |
