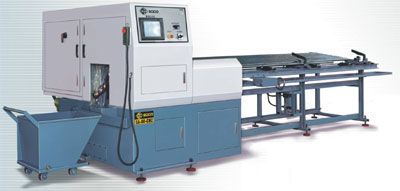

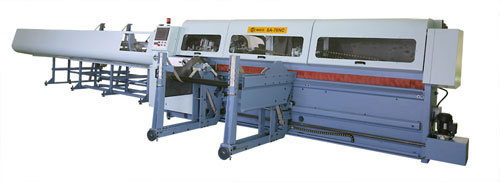

Photo: SA-80CNC |
|
|
|
SA-80CNC / SA-100CNC
|
|
|
Machine
Specifications
|
SA-80-CNC-S
|
SA-80-CNC-C
|
|
Equipped
with HSS Blade
|
Equipped
with TCT Blade
|
|
Cutting
Capacity
|
Round
Tube
|
Single
Tube
|
&15~&80mm
|
--
|
|
Dual
Tubes
|
&15~&40mm
|
--
|
|
Solid
Bar
|
Single
Bar
|
&15~&80mm
|
&15~&80mm
|
|
Dual
Bars
|
&15~&35mm
|
--
|
|
Material
Length
|
3000~6500mm
|
3000~6500mm
|
|
Main
Machine
|
Blade
|
Size
|
&275~&360mm
|
&280/&315/&360mm
|
|
Cooling
|
Water
Soluble Cooling Lubricating Oil, Auto Circulation, Pump
1/2HP
|
Vegetable
Oil, Oil Mist Spray with Compressed Air
|
|
Cutting
Head
|
Spindle
Motor
|
7.5/5hp，4/6p
|
10hp，4p
|
|
|
Standard
|
H
Speed 100RPM
L
Speed 65RPM
|
128RPM
|
|
Option
|
H
Speed 70~130RPM
L
Speed 40~100RPM
|
90~200RPM
|
|
Gear
Box
|
Air
Cooler Control Temperature
|
Air
Cooler Control Temperature
|
|
Guiding
Structure
|
Triumph
Arch Structure with Triple Slides
|
Triumph
Arch Structure with Triple Slides
|
|
Feeding
Way
|
Serve
Motor + Ball Screw
|
Serve
Motor + Ball Screw
|
|
Chip
Disposal
|
Automatic
Chip Conveyer
|
Automatic
Chip Conveyer
|
|
Hydraulic
System
|
Motor
|
2HP，4p
|
2HP，4p
|
|
Pressure
|
50kg/cm2
|
50kg/cm2
|
|
Material
Feeding
System
|
Serve
|
Serve
Motor + Ball Screw
|
Serve
Motor + Ball Screw
|
|
Clamping
Device
|
Forced
Alignment with Floating Function
|
Forced
Alignment with Floating Function
|
|
Feeding
Length
|
6~630mm
|
6~630mm
|
|
First
Crop
|
12~60mm
|
12~60mm
|
|
Last
Crop
|
110mm+a
|
110mm+a
|
|
Loading
Magazine
|
Standard
Width
|
800mm
|
800mm
|
|
Standard
Capacity
|
3000~6500mm
|
3000~6500mm
|
|
Material
Length
|
1700kg
|
1700kg
|
|
Control
|
Sequence
Control
|
Mitsubishi
AX2n
|
Mitsubishi
AX2n
|
|
Servo
Control
|
Mitsubishi
IPG，10PG
|
Mitsubishi
IPG，10PG
|
|
Input
Circuit
|
3&AC
220v 60hz
|
3&AC
220v 60hz
|
|
Control
Circuit
|
DC
24v
|
DC
24v
|
|
Length
× Height × Width
|
7210X2235X1950mm
|
7210X2235X1950mm
|
|
Weight
|
2500kg
|
2500kg
|
|
|
Features:
-
The
Sawing Head moves vertically along the triple slides in a
specially designed Triumph Arch
Structure, to ensure the rigidity and stability of the
sawing head during the cutting process.
-
Equipped
with Servo Motor and Precision Ball
Screws to achieve fast and stable cutting, easy and
flexible speed control during the cutting process, as well as
shortening the cycle and production time.
-
The
high power sawing head comes with high efficiency gears and
special designed backlash eliminating structure to ensure
fast, stable, and smooth cutting, as well as to prolong blade
lives.
-
The
design of two 180 °
blade-holding guides prevents the blade from vibrating.
Together with high pressure cooling system, this design
increases the cutting speed, precision, and prolongs the blade
lives.
-
The
sawing head temperature control
protects the blade from high temperature and thus prolongs the
blade lives and ensures high precision cutting.
-
The
special forced alignment feeding system, along with floating
function, protects the work piece from scratches and
interference during the feeding process. The automatic CNC
Servo Feeding System also allows the most precise
cutting length control. (The feeding setting is in 0.01mm
increment).
-
The
Interactive Touch Screen allows
easy storage, editing, and operation of cutting length
control, cutting speed control, cutting amount setting, and
other data. The screen also displays the error and malfunction
messages to provide convenient troubleshooting.
-
The
Automatic Material Loading Magazine
provides the most convenient operation. The whole production
process is completely automated and thus achieving maximum
efficiency.
|
|
