CR-C38

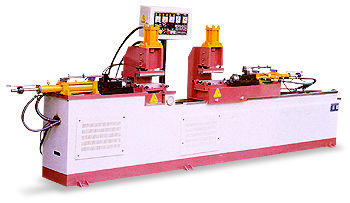

CR-C38A
|
- Suitable
for the shrinking of various metal pipes with
1. Different material and
2. Different shape.
- All parts
are produced under very strict quality control, maintaining
machine quality and standard specifications.
- Equipped
with emergency stop device. Both manual and automatic
operations are available.
- Shrinking
stroke 150mm. The max. workpiece length is 4500mm, with no
minimum workpiece length.
- An
additional feeding system can be added to the machine. The
operating security is then greatly increased, as the operators
only do the unloading and collecting of finished pipes.
- Forming
shapes can be convex, concave, sectional, long 7 flat, square,
V-shaped, open elbow and flat elbow. The design of the tooling
varies with workpiece and customers' requirements.
|
MODE |
O.D.*Wall |
Bending
Radius(mm) |
Bending
Speed |
Horse
Power |
Total
Length |
Total
Width |
Total
Height |
Total
Weight |
CR-C38 |
38*2.0 |
150 |
100mm
1.5/sec |
5HP |
2000mm |
500mm |
1200mm |
1000kg |
CR-C60 |
60*3.0 |
250 |
100mm
2.5/sec |
10HP |
650mm |
1400mm |
1300kg |
CR-C38A |
38*3.0 |
150 |
100mm
1.5/sec |
7.5HP |
3000mm |
500mm |
1200mm |
1500kg |
|
|
