PT Series -- Material Booster

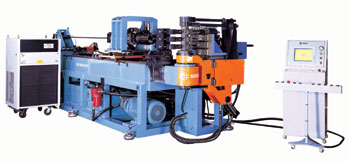

               SB - 76 x 6B - 3S - PT

At 1 x OD bending, the wall thinning ratio <=15%

At 1.5 x OD bending, the wall thinning ratio <=12%



  ¡@
  • Bending Material Booster, Bending, and Pressure Die Assist Booster are all automatically adjusted by the system (proportionally controlled), optimizing efficiency and minimizing any surface damages.
  • Final-Bend material booster mechanism: during the final part of the bending process, the material booster provides an additional "push", allowing every bending to fulfill wall thinning requirements.





¡@

Three stacks (3 X Radius) bending, with ability to use 3 stacks of compound tooling for short clamping distances and complex bends.







IPC:



Model
Max Ø Steel Tube
Max Ø Stainless Steel Tube
SB - 76 x 6B - 3S - PT
76.2 x 2.1t
63.5 x 3.5t
63.5 x 2.4t
SB - 90 x 6B - 3S - PT
88.9 x 2.1t
76.2 x 3.5t
76.2 x 2.4t
