Straw Working Machine

¡@

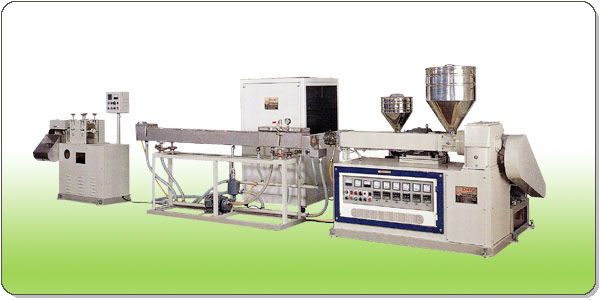

PP STRAW MAKING MACHINE
CYM-085A/1C

Description:
Compact designed extruder with vacuum calibration equipment straw pipes, from 3mmto 6mm.
Space economizing construction, low-noice operation as well as long durability.
All controls incorporated in the extruder frame.
High speed, automatic haul-off cutter is equipped.
Available for single; two and/or three colours straw making.

¡@

PP MAQUINA DE FABRICAR SORBETOS
Extrusora disenada compacta con calibacion de vacuum equipo de sorbetos desde 3mm to 6mm.
Construccion economica de espacio, minimo ruido operation como tambien larga vida.
Todo controles incorporado en el cuerpo de extrusora.

Alta velocidad, cortador automatico equipado.
Disponible para un color; dos y/o tres colores fabricadora de sorbetos.

OPTIONAL EQUIPMENTS:
 Cotton stick making machine
Helical straw making machine is available
Model CYM-085A/1C
Feature Material P.P
Color
 1
Product dia m/m 3-6
Product length m/m 125-300
Capacity pc/min 300-500
Extruding output range kg/hr 10-25
Extruder Surew dia m/m 45
Screw l/d 25:1
Motor HP VS 7.5
Heater capacity Kw 6
Speed control Variable
Automatic thermo-controller set 4
Take up & Cutting unit Take up roll set 2
Motor HP DC 1x1 set
Cutting knife set 1
Air compressor HP 1
Other Total electric used Kw 14
Extruder LxWxH m 1.9x1.25x1.65
Vacuum cooling tank LxWxH m 2.6x0.5x1.3
Cutting unit LxWxH m 1.3x0.65x1.2
Dimension LxWxH 6.8mx1.25mx1.65m
Packing size inch 111"x77"x56"
Machine weight ton 1
All specification and design are subject to change without notice.
 Toda la especificacion y el deseno estan sujeto a cambios sin aviso.

¡@

PP STRAW MAKING MACHINE
CYM-085B/2C

Description:
OPTIONAL:
chiller; extra dies for straw dia under 3mm or over 6mm;
extra cutter set for straw length under 125mm.
Model
 CYM-085B/2C
Feature Material   P.P
Color
   2
Product dia m/m 3-6
Product length m/m 125-300
Capacity pc/min 300-500
Extruding output range kg/hr 10-25
Extruder Surew dia m/m 45 25
Screw l/d   `25:1
Motor HP VS 7.5 DC 1
Heater capacity Kw 10
Speed control   Variable
Automatic thermo-controller set 6
Take up & Cutting unit Take up roll set 2
Motor HP DC 1x1 set
Cutting knife set 1
Air compressor HP 1
Other Total electric used Kw 18
Extruder LxWxH m 1.9x1.5x1.65
Vacuum cooling tank LxWxH m 2.6x0.5x1.3
Cutting unit LxWxH m 1.3x0.65x1.2
Dimension LxWxH 6.8mx1.5mx1.65m
Packing size inch 111"x84"x56"
Machine weight ton 1.3
All specification and design are subject to change without notice.
 Toda la especificacion y el deseno estan sujeto a cambios sin aviso.

¡@

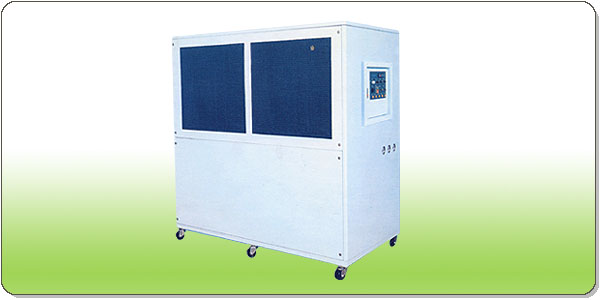

AIR-COOLED CHILLER
Description:
HIGH-EFFICIENT CHILLER FOR INDUSTRIAL USE THE CHILLERS ARE SUITABLE FOR THE MOULD COOLING OF:
Plastic Injection moulding machines
Plastic extruding machines
Plastic blowing moulding machines
Rubber moulding machines		 Various kinds of shoes manufacturing
High frequency welding machines
Oil cooling

¡@

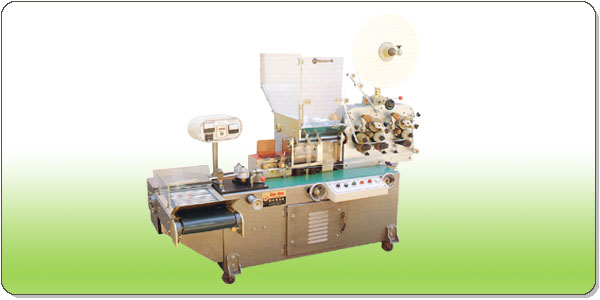

AUTOMATIC P.P. STRAW PACKING MACHINE  :CYM-045SP

Description:
CHARACTERISTICS:
Having 2-color printing equipment.
With equuipment calculating accurately & automatically, stopping and Turn-to-Zero.
To complete printing filling in & packing at a time. Each machine is operated by just one person.
Packing speed is non-sectional shift speed the spesed can be adjusted freely.

Materials Bible Paper
Width of Paper 25-30mm
Length of P.P. Straw 21, 22, 23cm
Productivity 400-450pcs/min.
Horse Power 1HP
N.W. 380 KGS
G.W. 440 KGS
Machine Size (LxWxH) 76"x40"x60"
Packing Size (LxWxH) 85"x45"x65"

¡@
¡@ ¡@

Specification are subject to change without notice for improvement

¡@

¡@
