Bamboo Genroku & Rikyu & Tensoke Type Chopstick Working machine

¡@

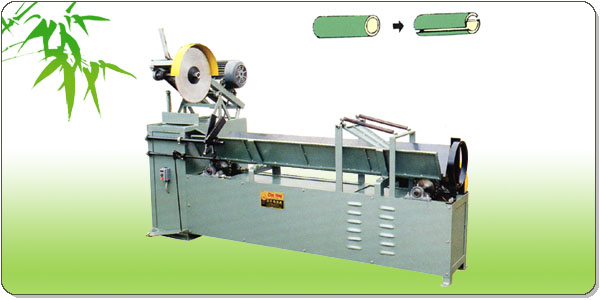

ROUND BAMBOO CROSS CUTTING & SPLITTING MACHINE
CYM-666

¡@
Description:
HORSEPOWER 1HP + 1/2 HP
N.W. 165KGS
G.W. 220KGS
MACHINE SIZE (LxWxH) 85"x35"x49"
PACKING SIZE (LxWxH) 90"x40"x54"

¡@

4-SIDE SIZING MACHINERY   CYM-070
Description:
HORSEPOWER 3HP
N.W. 180KGS
G.W. 240KGS
MACHINE SIZE (LxWxH) 62"x22"x37"
PACKING SIZE (LxWxH) 68"x32"x43"

¡@

AUTOMATIC BAMBOO GENROKU & RIKYU TYPE CHOPSTICK FORMING MACHINE
CYM-069
Description:
HORSEPOWER 3HP + 3HP
N.W. 230 KGS
G.W. 300 KGS
MACHINE SIZE (LxWxH) 57"x26"x43"
PACKING SIZE (LxWxH) 63"x36"x49"

¡@

¡@

TENSOKE TYPE CHOPSTICK FORMIN GMACHINE

CYM-105
Description:
HORSEPOWER 1/4HP + 1/2HP
N.W. 140 KGS
G.W. 210 KGS
MACHINE SIZE (LxWxH) 57"x28"x52"
PACKING SIZE (LxWxH) 63"x38"x58"

¡@

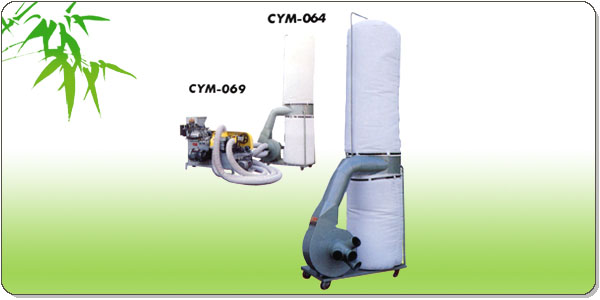

DUST COLLECTOR  CYM-064
Description:
CAPACITY OF SUCTION TANK 9.0CUFT
HORSEPOWER 2HP
N.W. 55 KGS
G.W. 100 KGS
MACHINE SIZE (LxWxH) 47"x26"x54"
PACKING SIZE (LxWxH) 53"x32"x60"

¡@

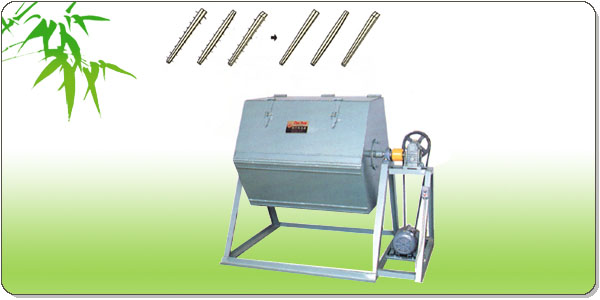

GENROKU & RIKYU & TENSOKE TYPE HEXAGON SHAPE POLISHING MACHINE
CYM-651G
Description:
CAPACITY OF WORKING TANK 17CUFT
R.P.M. 20
HORSEPOWER 1/2HP
N.W. 180KGS
G.W. 240KGS
MACHINE SIZE (LxWxH) 57"x42"x47"
PACKING SIZE (LxWxH) 63"x47"x59"

¡@

DRYER  CYM-083L

¡@

By burning Bamboo or Wood waste, this machine can produce vaporized firepower to dry Bamboo & Wood Ware. The hot air temperature is kept at 10oC to 75oC.

CAPACITY OF WORKING TANK 300000-400000 PAIRS
HORSEPOWER 3HP
N.W. 1000KGS
G.W. 1150KGS
MACHINE SIZE (LxWxH) 77"x39"x86"
PACKING SIZE (LxWxH) 83"x45"x92"



¡@

¡@

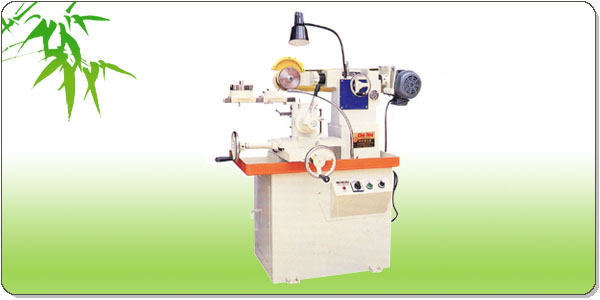

GRINDING MACHINE  CYM-068
Description:
HORSEPOWER 1HP + 1/4HP + 1/8 HP
N.W. 300 KGS
G.W. 380 KGS
MACHINE SIZE (LxWxH) 53"x32"x48"
PACKING SIZE (LxWxH) 55"x37"x58"

¡@

¡@

Specification are subject to change without notice for improvement

¡@

¡@
