Bamboo Mat & Bamboo Chair Mat Working machine

@

ROUND BAMBOO CROSS CUTTING MACHINE CYM-001

@

@

@

Description:
BAMBOO DIAMETER 0-150MM
SPINDLE SPEED 2,700 R.P.M.
HORSEPOWER 1HP
N.W. 60KGS
G.W. 110KGS
MACHINE SIZE (LxWxH) 33"x16"x54"
PACKING SIZE (LxWxH) 40"x24"x57

@

@


BAMBOO SPLITTING MACHINE  CYM-012


Description:
SPECIFICATION 6' 8' 10' 12'
SPINDLE SPEED 10 R.P.M. 9 R.P.M. 8 R.P.M. 7 R.P.M.
HORSEPOWSER 7 1/2HP 7 1/2HP 7 1/2HP 7 1/2HP
N.W. 530KGS 550KGS 570KGS 590KGS
G.W. 590KGS 620KGS 650KGS 680KGS
MACHINE SIZE(LxWxH) 150"x35"x50" 174"x35"x50" 198"x35"x50" 222"x35"x50"
PACKING SIZE(LxWxH) 156"x44"x58" 180"x44"x58" 204"x44"x58" 228"X44"X58"

@

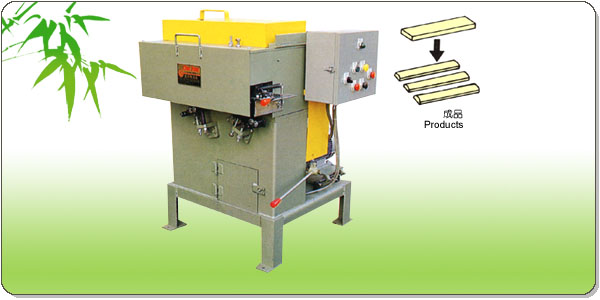

BAMBOO SLICING, KNOT REMOVING, WIDTH SIZING & PLANING MACHINE  CYM-013H

Description:
HORSEPOWSER 2HPx2+1HPx2
N.W. 530KGS
G.W. 650KGS
MACHINE SIZE(LxWxH) 74"x22"x41"
PACKING SIZE(LxWxH) 78"x25"x51"

@

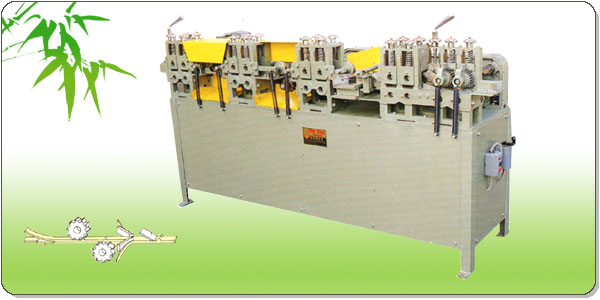

BAMBOO STICK MAKING MACHINE
CYM-005JH


Description:
HORSEPOWSER 3HPx2+1HP
N.W. 460KGS
G.W. 540KGS
MACHINE SIZE(LxWxH) 36"x38"x44"
PACKING SIZE(LxWxH) 41"x43"x54"

@

CSTICK SIZING MACHINE  YM-006C

@

Description:
SPECIFICATION 6' 8' 10' 12'
SPINDLE SPEED 2,700R.P.M 2,700R.P.M. 2,700R.P.M. 2,700R.P.M.
HORSEPOWSER 1HP 1HP 1HP 1HP
N.W. 90KGS 100KGS 110KGS 120KGS
G.W. 180KGS 200KGS 220KGS 240KGS
MACHINE SIZE(LxWxH) 74"x24"x35" 98"x24"x35" 122"x24"x35" 146"x24"x35"
PACKING SIZE(LxWxH) 78"x28"x39" 102"x28"x39" 126"x28"x39" 150"x28"x39"

@

DRYER CYM-082

@

Description:
By burning kerosene or High Test Diesel, this machine can produce vaporized fire power to dry Bamboo & Wood ware The hot air temperature is kept at 10oC to 60oC. The hot air quantity is 62M3 per minute. To add per 10oC Temperature should consume 1.1 fuel per Hour.
CAPACITY OF WORKING TANK 90CUFT
HORSEPOWER 1HP
N.W. 1.MOTOR 1.65KGS
2.BODY 2.160KGS
G.W. 1.110KGS
2.220KGS
MACHINE SIZE (LxWxH) 160"x96"x34"
PACKING SIZE (LxWxH) 1.38"x38"x27"
2.101"x13"x54"

@

@

BAMBOO STICK POLISHING MACHINE

CYM-007C

@

Description:
SPECIFICATION 6' 8' 10' 12'
SPINDLE SPEED 90 R.P.M. 90 R.P.M. 90 R.P.M. 90 R.P.M.
HORSEPOWER 1HP 1HP 1HP 1HP
N.W. 200KGS 220KGS 240KGS 260KGS
G.W. 280KGS 315KGS 350KGS 385KGS
MACHINE SIZE(LxWxH) 90"x38"x58" 114"x38"x58" 138"x38"x58" 162"x38"x58"
PACKING SIZE(LxWxH) 94"x38"x44" 118"x38"x44" 142"x38"x44' 166"x38"x44"

@

BAMBOO MAT WEAVING MACHINE
CYM-020M

@

Description:
SPECIFICATION 6'
PRODUCTIVITY 4-4.5 SQFT/MIN.
HORSEPOWER 1HP + 1/4 HP
N.W. 1500 KGS
G.W. 1700 KGS
MACHINE SIZE(LxWxH) 94"x99"x69"
PACKING SIZE(LxWxH) 87"x104"x79"

@

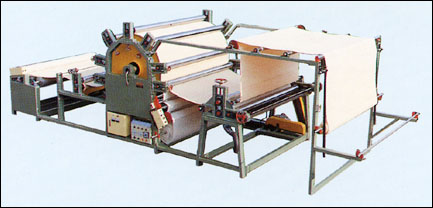

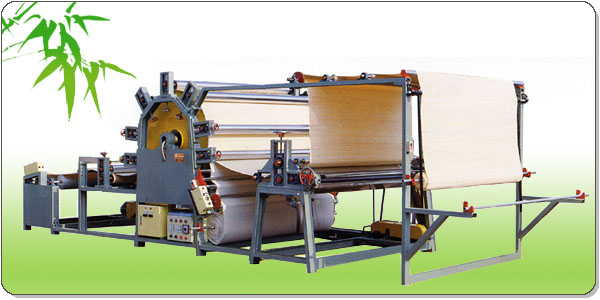

BAMBOO MAT PASTING MACHINE
CYM-023

@

SPECIFICATION 6'
HORSEPOWER 3HP + 1HP
HEATER 18KW
FEEDING SPEED 24'/MIN.
N.W. 1500KGS
G.W. 2000KGS
MACHINE SIZE(LxWxH) 247"x102"x81"
PACKING SIZE(LxWxH) 206"x108"x91"

@

OIL-HYDRAULIC ADHESIVE/PASTE MACHINE
CYM-026

@

Description:
SPECIFICATION 6'
HORSEPOWER 7 1/2HP + 2HP + 1/2HP
MAX ALLOWABLE PRESSURE 160 TON
SIZE OF (MM) HEATING DIATE 900x1970
N.W. 12000 KGS
G.W. 14000 KGS
MACHINE SIZE(LxWxH) 110"x71"x110"
PACKING SIZE(LxWxH) 118"x77"x119"
123"x74"x75"

@

BAMBOO MAT SIZING MACHINE  CYM-027

@

Description:
SPECIFICATION 6'
PRODUCTIVITY (LENGTH) 30-35 FEET/MIN.
HORSEPOWER 1/2 HP
N.W. 1300 KGS
G.W. 1500KGS
MACHINE SIZE (LxWxH) 53"X102"X52"
PACKING SIZE (LxWxH) 58"X107"X61"

@

INDUSTRIAL SEWING MACHINE  CYM-025

Description:
HORSEPOWER 1/2 HP
N.W. 80 KGS
G.W. 100KGS
MACHINE SIZE (LxWxH) 48"x24"x42"
PACKING SIZE (LxWxH) 52"x28"x46"

@

@

Specification are subject to change without notice for improvement

@

@
