COMPACT UTILITY LOADER
ML52
Wheel type
 |
 |
 |
 |
Track type
|
|
|
|
|
|
 |
 |
The ML52 track compact utility loader combines the performance of a conventinal track loader with the skid steering machine, which offers high payloads to provide better breakout force and lifting capacities. Easy operating with multifunctional single lever control.skid steering drive features provides a tight turning radius for added maneuverability in small areas.the dual-speed to reduce cycle times, offer excellent working-efficiency & productivity on the jobsite. Unlike skid steers, million mini-skids provide360-degree visibility of the work area for increased operator safety. The cushioned ride of the stand-on operator platform provides the highest level of comfort and visibility .Even more important, the ML52 could offers over 50 attachments are available for a wide range of industries and applications.
Additional advantages :
Better operator visibility,higher dump height for loading & unloading materials, more ground speed to reduce cycle times.
Excellent productivity to get a wide range of jobs done quickly and more cost-effectively.
360° visibility of the work area for increased operator safety. The cushioned ride of the stand-on operator platform provides the highest level of comfort and visibility.
Over 50 attachments are available for a wide range of industries and applications.
Technical Specification :
| ML52 COMPACT UTILITY LOADER | ||||||
| ENGINE | Make/Model | Perkins 403D-11 TⅢ | ||||
| Type | Liquid-cooled, 3 cylinder diesel engine | |||||
| MAX. operating Power at 3000 rpm | hp (Kw) | 26.1hp / 19.7kw | ||||
| Power rating specification | ISO 3046 | |||||
| Fuel tank capacity | gal (L) | 9 (34) | ||||
| PERFORMANCE | Trvel speed-dual | mph (kph) | 3.33 (5.4) | |||
| gradeability | 30° / 58% | |||||
| Bucket capacity | ||||||
| Drive | Hydraulic | |||||
| N° track roller per side | 5 | |||||
| Ground clearance | in (mm) | 5.69 (144.6) | ||||
| Ground pressure | psi (kg/cm³) | 3.6 （3.6） | ||||
| G- Overall Operating Height (Fully Raised) | ft-in (mm) | 51.53 (1309) | ||||
| Operating Capacity (at 35% of tip load) | lbs (kg) | 735 (333) | ||||
| Operating Capacity (at 50% of tip load) | lbs (kg) | 1050 (476) | ||||
| Tip capacity | lbs (kg) | 2100 (953) | ||||
| H- Max. Dump Height | ft-in (mm) | 51.34 (1302) | ||||
| I- Hinge Pin Height (Fully Raised) | ft-in (mm) | 72.6 (1844) | ||||
| G- Dump angle | 37° | |||||

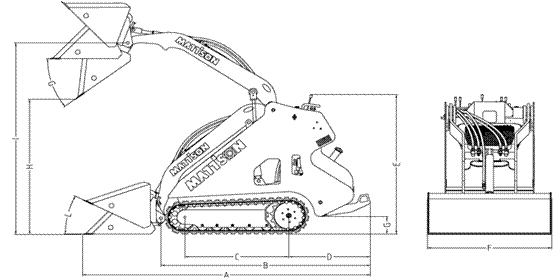

| DIMENSIONS | A- transport length (without bucket) | in (mm) | 77 (195.6) | |||
| B- Trasport length (with bucket) | in (mm) | 100 (2540) | ||||
| C- Trackbase | in (mm) | 37 (940) | ||||
| D- Eearo verhang | in (mm) | 28.35 (720) | ||||
| E- Height | in (mm) | 53.7 (1340) | ||||
| F- Width | in (mm) | 43.5 (1106) | ||||
| weight | lbs (kg) | 530.5 (1169) | ||||
| HYDRAULICS | ||
| Work Pump | Gear Pump | |
| Flow rate - Working | gpm (l/min) 14.5 (54) | |
| Working Pressure | psi(bar) 3000 psi System Relief | |
| Reservoir Capacity | gal (L) 12 (45) | |
| STEERING | ||
| System | Hydraulic direct-acting skid steering | |
| Creep Control | Variable | |
| Operator Platform | Spring Loaded | |
| OPTIONS | ||
| 4 in 1 bucket | ||
| Auger bits | ||
| Two sets Quick connectors | ||
| Multitudinal attachments | ||
| Noise level | ||
| Noise level | 101 Db(A) | |
| Please refer to our Price List and Ordering Guide for complete accessory information. | ||
| Specifications may
change due to continuous product development. Users are advised to consult
Million's Operator's Manual and website for specific information regarding
the engine power rating. Actual power output may vary due to conditions of
specific use.
|
||
|
|
