卡車式高空作業車

TB 180

　
　

　

STANDARD DESIGN
Example:


- Vehicle engine start/stop mechanism.
- Permissible inclination of 5°.
- Horizontal- vertical jacking.
- Easy-to-use emergency control with information

  and diagnostic system.
- Automatic positioning system.
- Aluminium working cage.
- Robust swivelling device (2 x 225°).
- Automatic return-to-basic-position feature.
- Hand pump for emergency use.
- Hydrostatic cage levelling control.
- Interior power control.
- 2 loops for safety belts.
- Memory function.
- High-quality paint finish.

 　

OPTIONS

Example:

- Aluminium sidewalls.

- Support plates (with brackets).

- Limitation of telescopic extension

  (height deactivation).

- TELESERVICE (remote control reading of

  STEIGER ® data).

- Polyester working cage with insulation

  against 1,000 volts.

- Equipped with bio-hydraulic oil.




　
 STEIGER ® TB-Series

The control panel on TB-Series models feature self-explanatory symbols which support intuitive and safe operation, even for inexperienced operators.





The optional polyester working cage allows two people to work safely at power cables.






The secondary or emergency control station:  TB-Series models also come equipped with this display which provides information and diagnostic values.




The support plates (with brackets) are located within ea

　

　
RUTHMANNSTEIGER ®

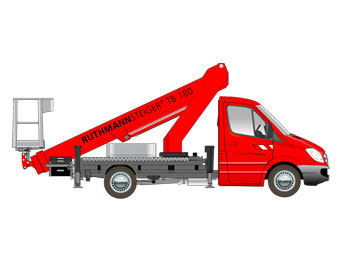

 TB 180

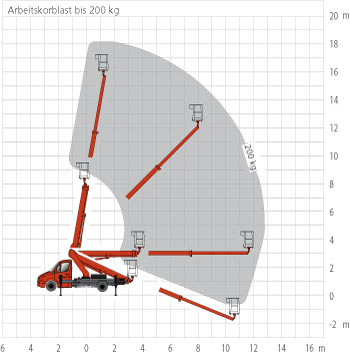

Working height:

18,00 m
Lifting height:

16,00 m
Outreach:

12,80 m*
Range of rotation:

450°
Working cage size:

1,40 - 0,70 m
Working cage load:

200 kg
Total height:

3,00 m
Total length:

7,20 m
Permissible inclination:

5°**
Permissible total weight starting at:

 3.500 kg

* depending on load, angle of rotation and outfit
**with restriction of performance data



　

　

　

　

　

　

　

　

 　

　
 STEIGER ® TB 180



 　



　

　

　
