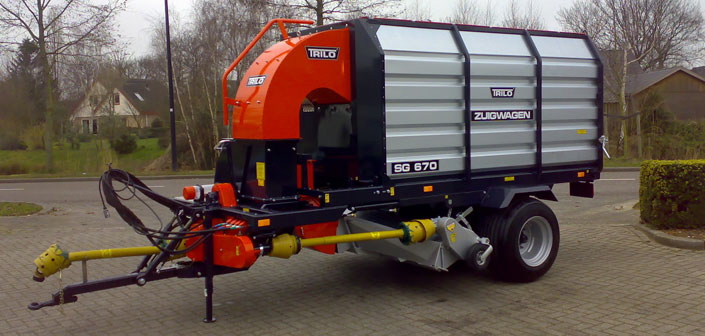

SG670

This multifunctional vacuum sweeper can be equipped to form a leaf collector or to act as a strategic partner for use on the golf course. The sweeper is equipped to include a hand-operated wander hose or a hydraulically operated arm. A scarifier and swing axle are also part of the range of options available.

The sweeper is fitted with a robust Trilo vacuum turbine which generates a huge suction force.

The intake capacity of 7 cubic meters facilitates transportation of large amounts of material. The machine is fitted with a hydraulic walking floor which helps to restrict the weight of the sweeper, allowing it to travel over your grass surface with care.

In summary, the SG670 is a compact machine with a large capacity and high degree of diversity.

Technical Specifications

Centrifugal pump:   Trilo ø850 mm / 5 blades

Drive:                   PTO, 540 rev/min

PTO output:          from 45 HP / 34 KW

Loading capacity:   7 m3

Length:                 4,90 m

Width:                  1,75 m

Height:                 2,45 m

Suction hood:        2,00 m

Suction hose:        5 m x Ø200 mm

Unloaded weight:   1280 kg

Tyres:                  15x17 of 19x17

Hydraulic system:   180 bar - 40 litre/min
