SG1170

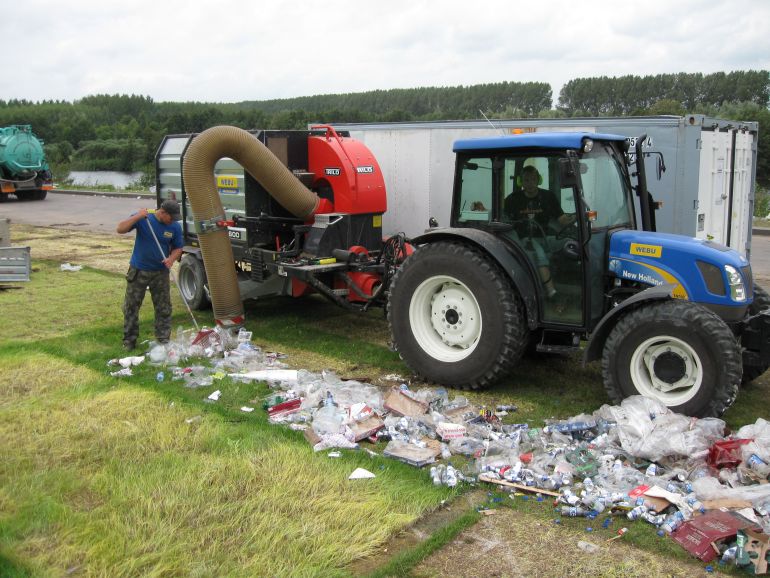

The TRILO SG1170 has been designed with the notion of combining two successful machines from the TRILO range.

By using the largest vacuum turbine that is currently available, in combination with the compact undercarriage taken from the SG700, a whole new exciting design has been created.

By doing so, we have been able to create a machine with a high power, thanks to the use of a large pump, and a low surface pressure. The whole machine takes a more compact form which therefore ensures that less damage is caused to your ground.

Operation of the machine owes thanks to a solid ø960 mm vacuum turbine which generates a very large suction force. The balanced fan and dual-walled housing provide for a resistant, reliable and most importantly, safe power source.

When using the machine in residential areas and other closely-built environments, a high degree of dust formation is unwanted. In order to reduce the emission of fine particulate to a minimum, TRILO vacuum sweepers can be fitted with a dust cap.

Technical Specifications

Centrifugal pump:   Trilo ø960 mm / 4 blades

Drive:                   Aftakas, 540 rev/min

PTO output:          from 62 HP / 47 KW

Loading capacity:   7 m3

Length:                5,10 m

Width:                 1,75 m

Height:                 2,45 m

Suction hood:        2,00 m

Suction hose:        4 m x Ø350 mm

Reach:                  2 m

Unloaded weight:    >1530 kg

Tyres:                  15x17 / 19x17 ply

Hydraulic system:   180 bar - 40 litre/min
