真空吸草機

SG 1165





SG1165

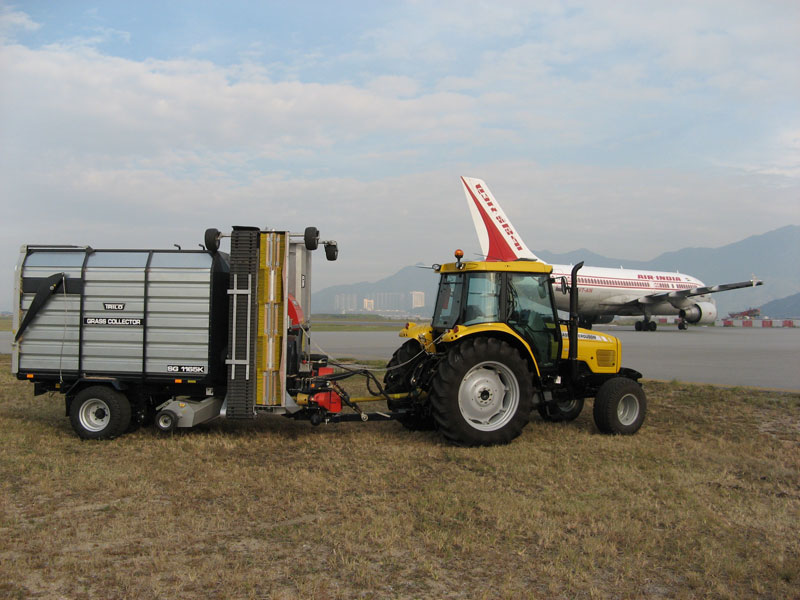

A spacious grass vacuum sweeper with a load capacity of 11 m3.

Operation of the machine owes thanks to a solid ø960 mm vacuum turbine which generates a very large suction force. The balanced fan and dual-walled housing provide for a resistant, reliable and most importantly, safe power source.

The centrifugal pump delivers impressive performance. It is indirectly driven by a dual fan belt transmission which guarantees smooth operation. In combination with 2 mechanically driven wings, at least 6.50 m of mowed grass can be collected in one operation.

The fan housing is fitted with an inspection hatch on the base.

A low wheel pressure is achieved through the use of 4 aligned tyres which follow the terrain.

Technical Specifications


Centrifugal pump:   Trilo ø960 mm / 4 blades

Drive:                   PTO, 540 rev/min

PTO output:          from 80 HP / 56 KW

Loading capacity:   11 m3

Length:                 6,30 m

Width:                  2,10 m

Height:                 2,80 m

Suction hood:         2,00 m

Unloaded weight:    >2400 kg

Hydraulic system:   180 bar - 40 litre/min
