方型牧草包膠膜機
G 3010 Q EXCLUSIV

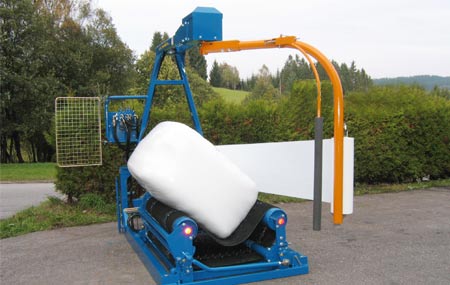

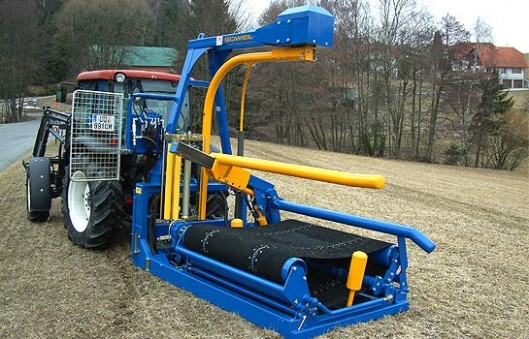

Square bale wrapper – three-point linkage machine with bale
pick-up. The G3010 Q Standard is characterized by its robust design, a low
working height and ease of use. The wide continuous conveyor belt is
prerequisite for uniform wrapping work even with bulky bales.
DESIGN
An exceptional
strong design and a really low working height
|
REGULAR
WRAPPING
The
wide continuous conveyor belt is prerequisite for uniform wrapping work
even especially with deformed bales.
|
PROGRAM
CONTROL STANDARD WITH RADIO REMOTE CONTROL
The work
cycles "wrapping process" and "film-cutting and
holding" are automatic. The "Bale deposit" is done using
the joystick.
|
FEED
RATE SHUT-OFF VALVE
A
perfect overlapping of the bales is ensured even though there are squared
|
MANUAL
FUNCTIONS
All
functions can also be operated directly on the machine with the hand
levers
|
|
Basic Equipments :
- Hydraulic tilting table with mechanical belt
length adjustment
- Wide, continuous bale conveyor belt with belt
guide and 2 bale guide rollers
- Bale deposit on the left
- Combined film stretching unit 500 mm and 750 mm
- Automatic film cutting and holding system
- Three-point linkage Cat. II
- Bale pick-up for square and round bales
- Bale pick-up on the right against the direction of
travel, working headlight
- Feed rate shut-off valve:
This ensures that the film will overlap accurately for rectangular bales
- Semi-automatic program control STANDARD with radio
remote control:
„Bale pick-up“ is controlled manually using the electric joystick
The cycles „wrapping process“ and „film-holding and cutting“
start automatically.
„Bale deposit“ starts at the push of a button.
Additional Equipments :
- Fully automatic program control PROFI
The entire cycle ist automatically fully completed
- Radio remote control
Only in combination with fully automatic electronic programm control PROFI
- Film monitoring
Stops the wrapping process if film tears appart or runs out
- Additional bale guide roller per unit
- Light and indicator system
- Electric drive (without hydraulic oil)
Including a 4 kW electric motor with hydraulic pump, return filter and 30l
hydraulic oil tank
- PTO drive shaft (without hydraulic oil)
Including gearbox with hydraulic pump, slip-on tractor PTO drive shaft,
return filter and 30 l hydraulic oil tank
- RUGGERINI diesel engine (without hydraulic oil)
Air-cooled, 2-cylinder engine, 11.4 kW, including battery, generator and
electric starter
as well as hydraulic system fully assembled
- Diesel engine speed control
Automatically switches to idle speed after the wrapping process or extended
intervals
Only in combination with fully automatic electronic program control PROFI
- Battery supply cable 5.3 meters 2x6 mm² with
3-pin power outlet
規格說明 :
- Weight: 1.150 kg
- Length: 3.000 mm
- Width: 1.680 mm
- Height: 2.590 mm
- For all bale dimensions up to 1,20 x 1,20 m,
bale length up to 1.60 m
- Round bale diameters between 0.90 - 1.50 m
Required
connections:
- 1 pressure connection and one depressurized return
for the supply of the wrapper
- 3-pin power outlet for the electrical supply
including direct supply line to the battery
(cable cross-section 2x6 mm²)
