小方型牧草包膠膜機

995TSR

機器目錄下載

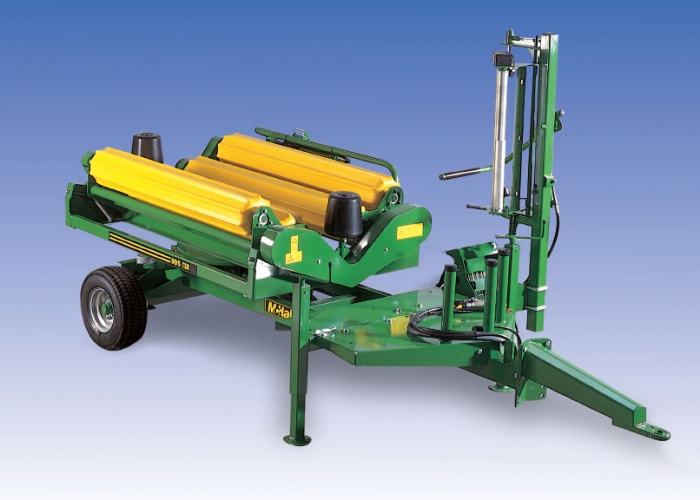

995TSR - Square Bale Wrapper
Square Bale Wrapper–  995 TSR –Trailed Single Dispenser Fully Automatic Remote Control Square Bale Wrapper with a mounting point for a hydraulic power pack.



The  995 Trailed Single Dispenser Fully Automatic Remote Control Square bale wrapper range is the practical and versatile solution for wrapping large square bales. With the usual McHale common sense design, quality components and precision engineering the 995TSR square bale wrapper is the trusted choice for farmers who want high output and consistent performance for use in static locations.

On the 995 TSR square bale wrapper the rotating rollers ensure an even rotation of the bale and the efficient application of the film. Versatile too, with a simple adjustment the 995TSR square bale wrapper will equally and efficiently wrap large round bales.  the high output 995 TSR square bale wrapper will give you a tightly wrapped bale that contains all the natural juices for increased nutritional value while improving environmental protection.

The 995TSR square bale wrapper gives an operator the flexibility of being able to mount a hydraulic power pack on the front of the machine for transportation and operation. The 995TSR also features a trailed drawbar and transportation wheels. The 995TSR square bale wrapper is an advanced square bale wrapper, which can be operated from the loading tractor by remote control, allowing for one man operation of the loading, wrapping and stacking functions.



The 995TSR square bale wrapper applies the preset number of layers, stops and tips the bale automatically while the operator can stack the previously wrapped square bale and bring the next netted bale to the linkage round bale wrapper for wrapping.

With this automatic remote control machine one operator can load wrap and stack the bales, thus completing the entire job.

規格說明 :

Linkage Model - 995TSR
Weight (unladen) 1100 kg. (2200 lbs)
Max bale weight 1000kg. (2000 lbs)
Min oil req. litres per minute 18 @ 150 bar
Total Height 1.97m (6’6”)
Height to top of rollers 0.97m (3’2”)
Greasing Points 15
Transport Width 1.73m (5’8”)
Protection Mechanism Shear bolt/roll pin
Transport Length 3.1m (10’2”)
Working speed-table (up to) 30 rotations/min
Bale Sizes
Round bales Max. Width 180 cm
Round bales Max. Diameter 180 cm
70 5 80, 80 5 80, 80 5 90 mm Length 180 cm
