方型牧草包搬運車

( 方型牧草包检拾车 )

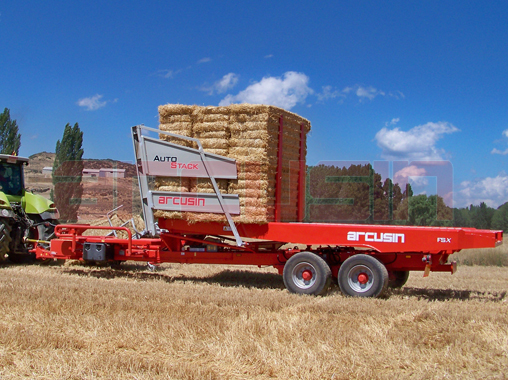

FS機型

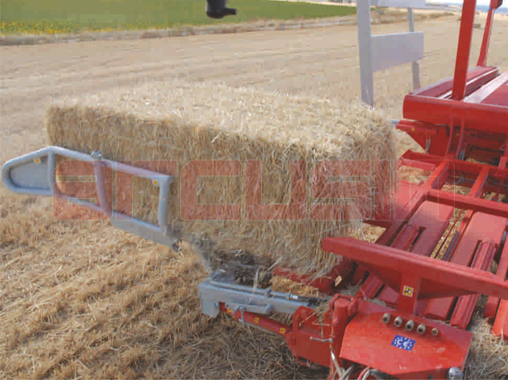

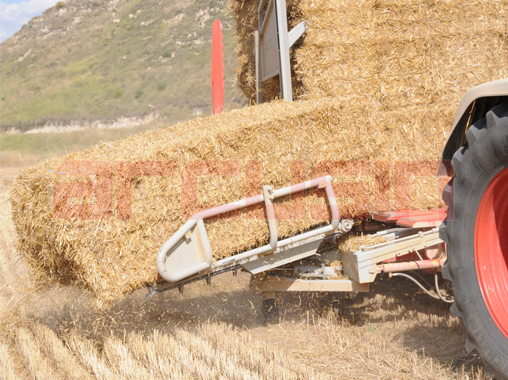

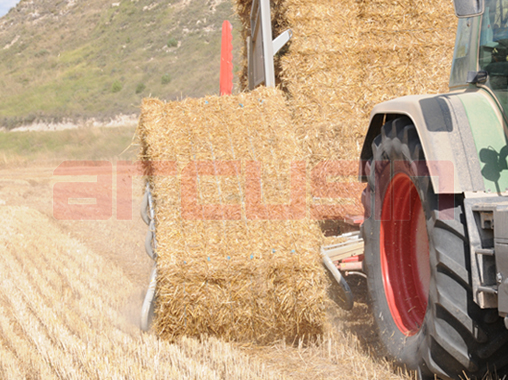

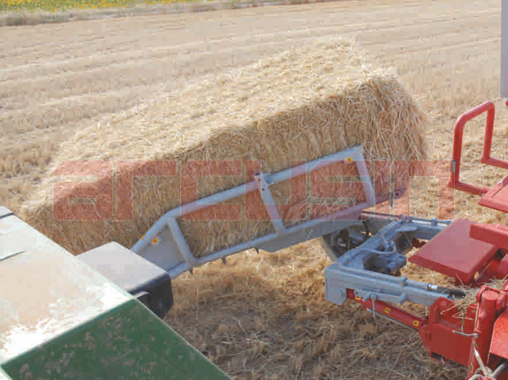

Pick-up

Floating system with single-action turn.

Hydraulic damping in all phases
of the pick-up turning cycle.

Smooth, gradual, acceleration
at start up. Progressive
slow down at the end of a run,
when moving both up and down slopes.

The loading operation is carried out with a single turn of the pick-up and without the involvement of any other mechanisms.

The check-control in the cabin constantly supervises all of the functions.

The pick-up management programme ensures complete safety.

It is not possible for the turn to be spontaneously interrupted while the pick-up is turning. Even if a bale is not detected by the sensor, the pick-up will turn without damaging the bale.

Totally adjustable. Adaptable to all bale sizes.

Position specially chosen to allow the tractor to turn without problems.

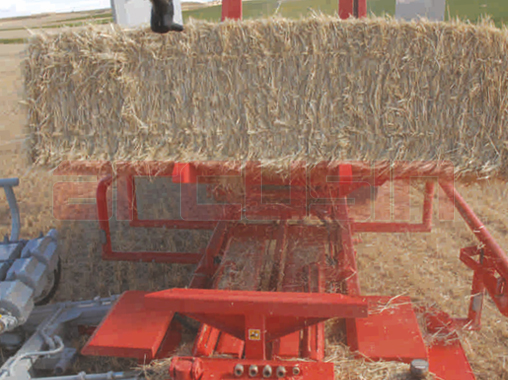

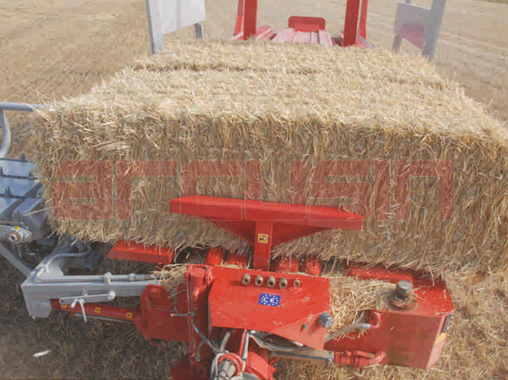

Various types of chain depending on the condition of the product that is to be loaded. (packs of grouped small bales or baled straw)

Impossible to interrupt the turning action. Automatic (stop/start) control of the drive chains when bales are detected at the mouth of the pick-up. Personalised programming to ensure that the bales are loaded as quickly as possible and without dropping any bales. This implies an important extension to the working lives of the chains.
