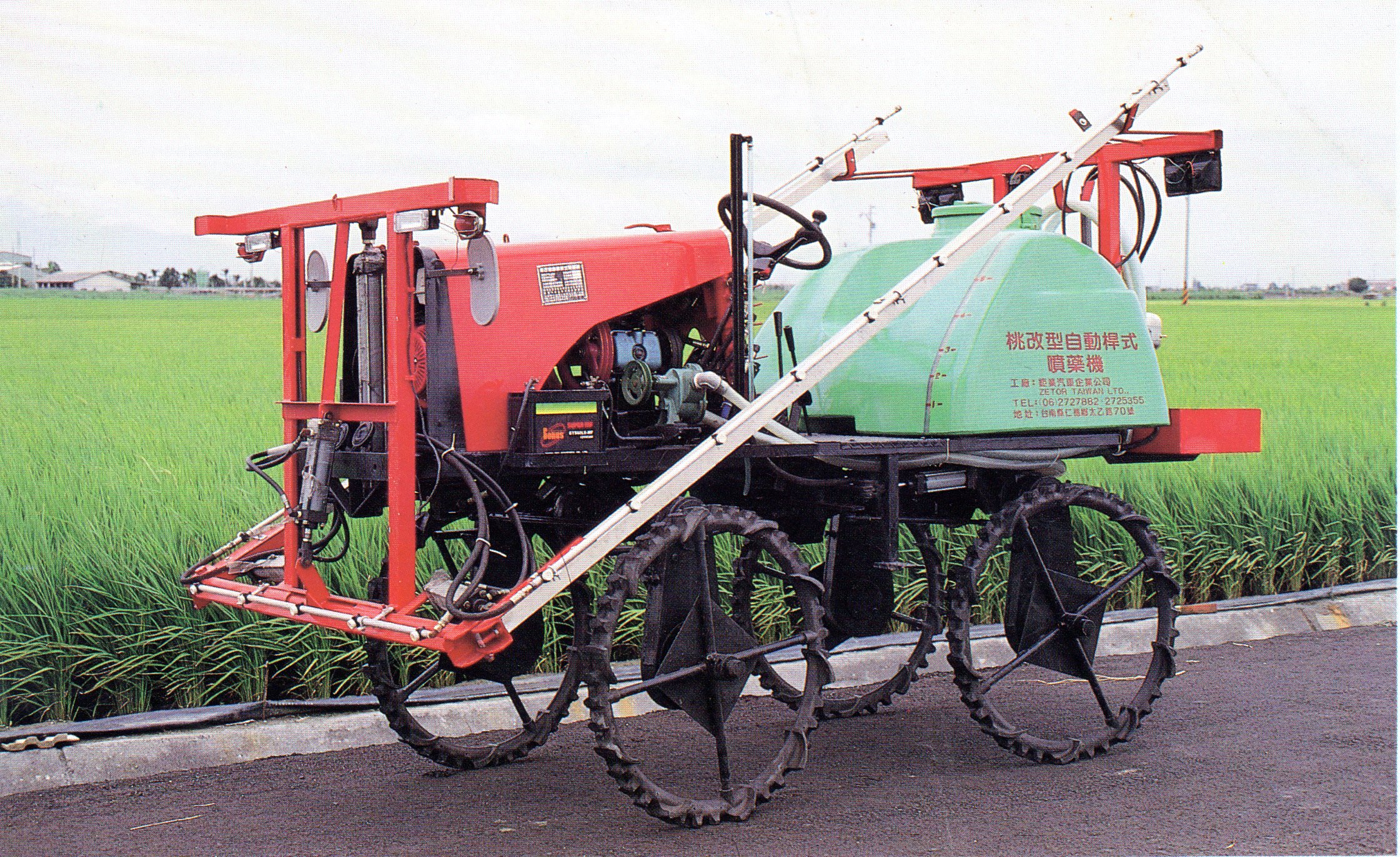

Auto Boom Type Pesticide Spraying Lorry

ZTSL500

@

@

@

Specification :

1.   Machine length : 322 cm

2.   Machine height : 208 cm

3.   Machine width : 200 cm

4.   Engine power  : 13 HP, 1800 rpm

5.   Engine type : 4-stroke, Gasoline

6.   Pump : 54 liter, 700 rpm, 20 kg / cm2

7.   Nozzle : 18 or 24 pc

8.   Tank  500 liters

9.   Lorry Turning : hydraulic. 4-wheel or 2 wheel turn.

10. Rubber Metal Wheel : 90 cm

11. Drive : 4-wheel, forward 6 speed.    reverse : 2 speed

12. Boom : Hydraulic operated.  All directions

13. Boom span : 8 Meters

14.  wheel span : 1000, 1100, 1200, 1500 mm

15.  Shaft span : 1450 mm

16.  Speed : 2 to 20 km/hr

@

This lorry is widely used in Taiwan to spray pesticide solution.

@

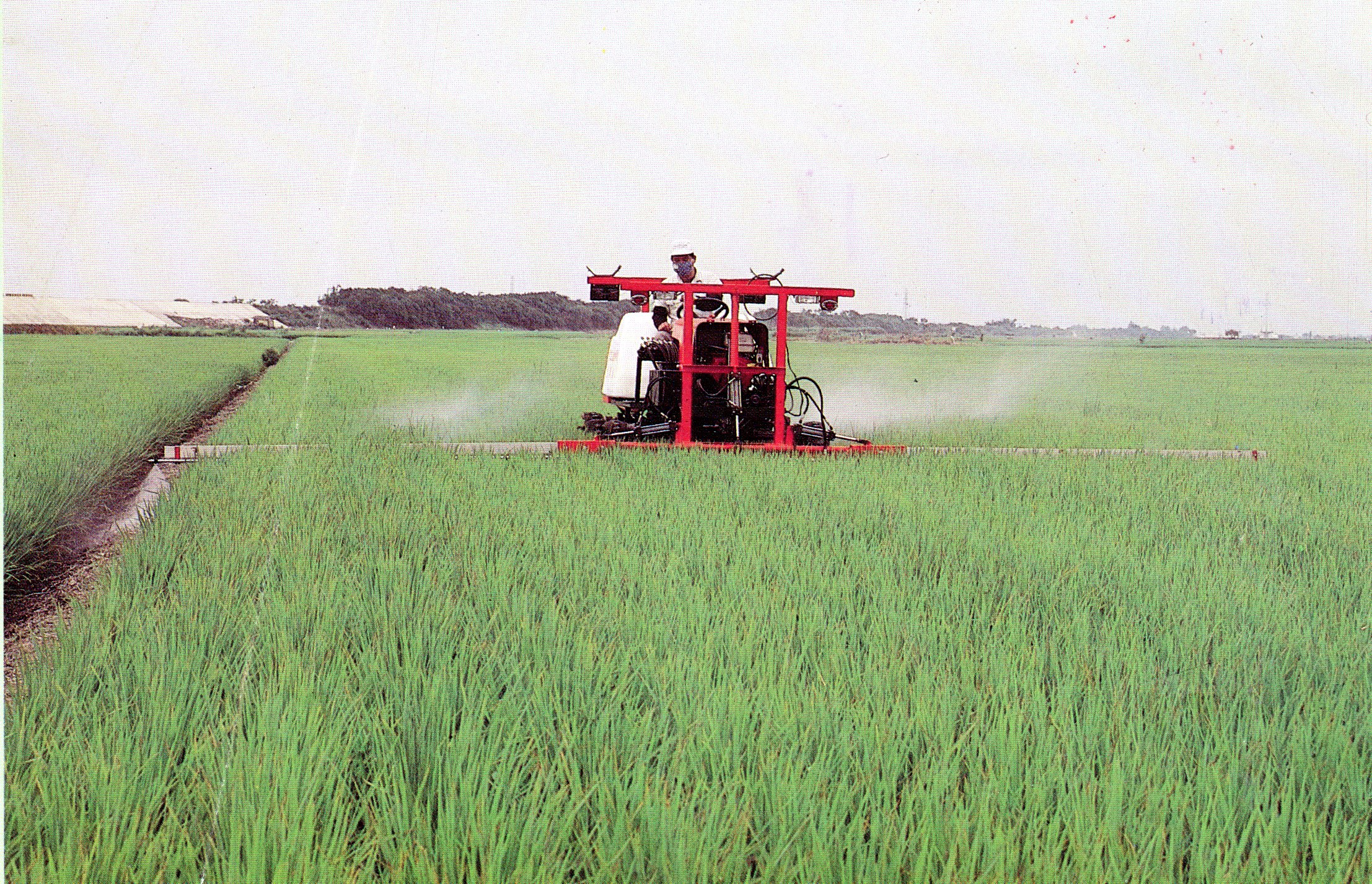

( 1 ) AQUATE RICE FARG
pump pressure 17 kg / cm2
Lorry speed  Low Speed +No. 2 clutch
Spraying Time 23.5 Min / Ha
( 2 ) CORN FARMLAND
Pump Pressure 17 Kg / cm2
Lorry Speed High Speed + No. 1 Clutch
Spraying Time 20 Min / Ha
@

( 3 ) SOYBEAN GARDEN

Pump Pressure 17 Kg / cm2
Lorry Speed High Speed + No. 1 Clutch
Spraying Time 20 Min / Ha

@

@

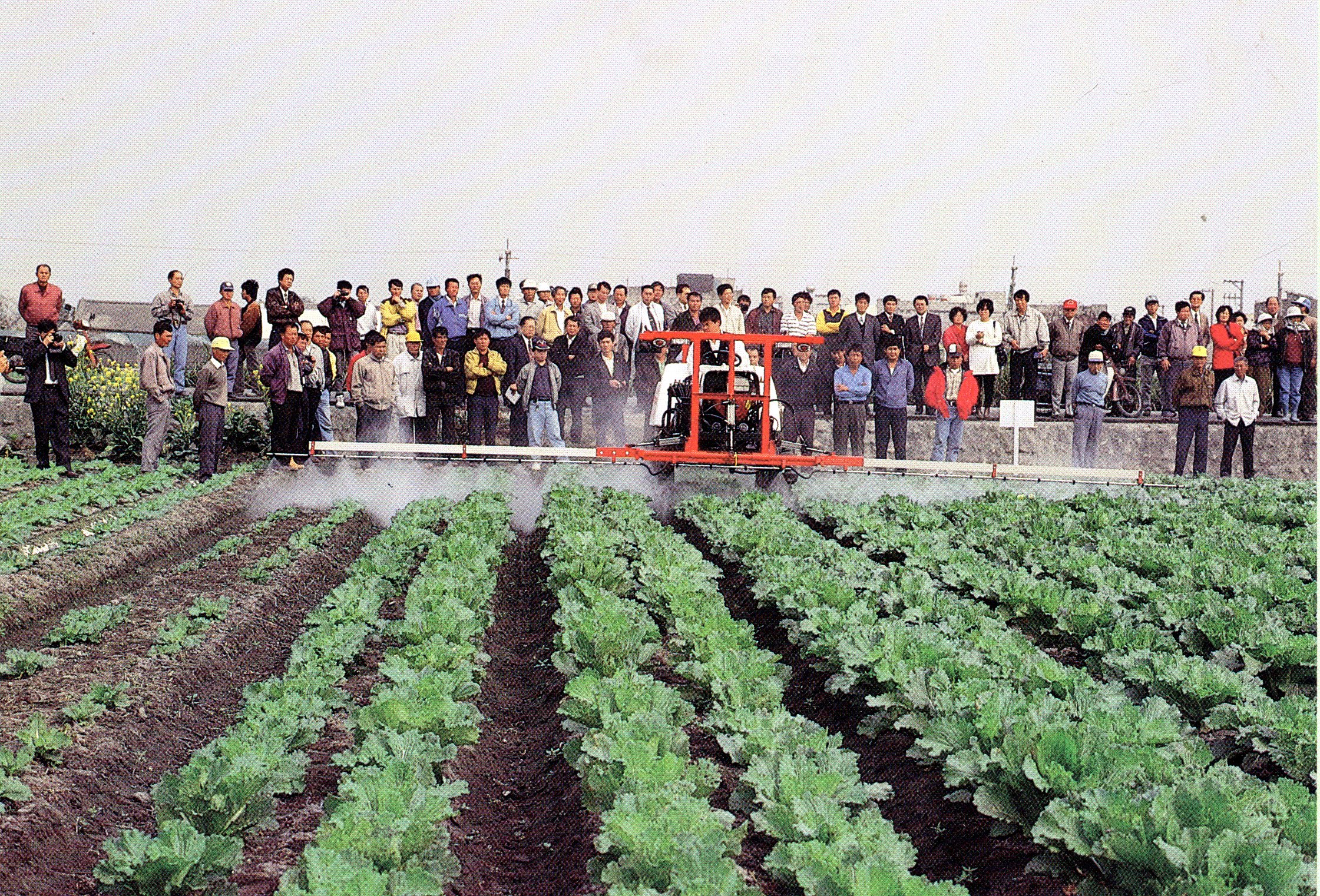

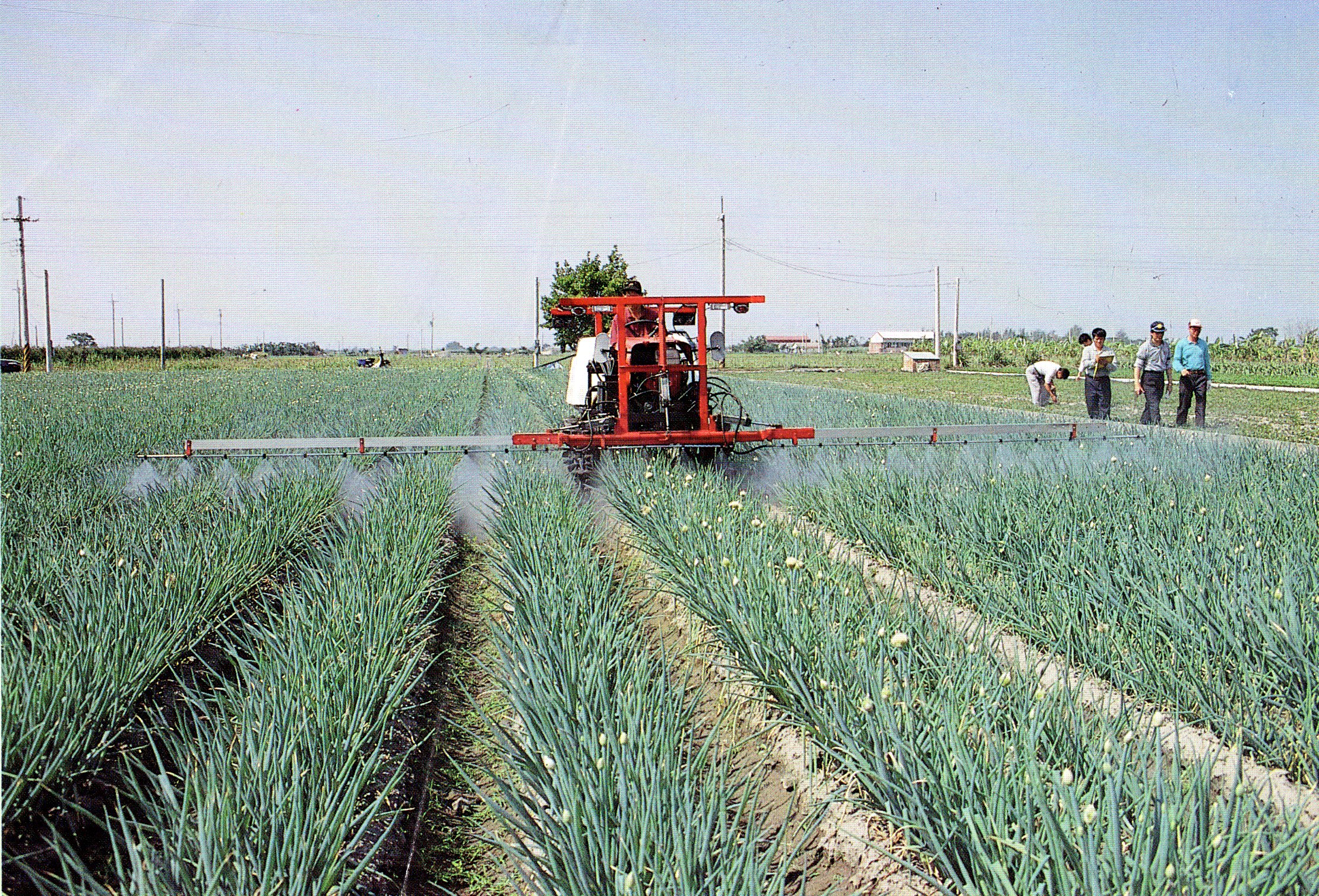

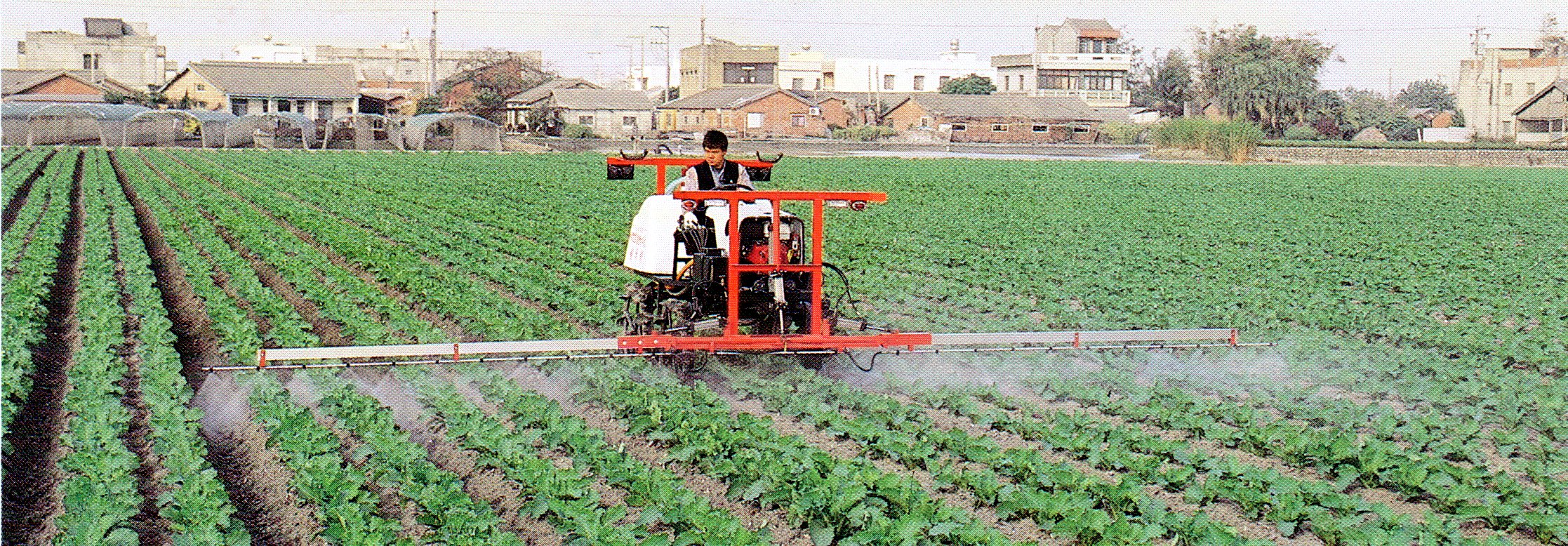

( 4 ) VEGETABLE GARDEN

Pump Pressure 17 Kg / cm2
Lorry Speed High Speed + No. 1 Clutch
Spraying Time 20 Min / Ha

@

( 5 ) GRASS LAND
Pump Pressure 15 Kg / cm2
Lorry Speed High Speed + No. 1 Clutch
Spraying Time 18 Min / Ha

@

@

@
