化學肥料施肥機

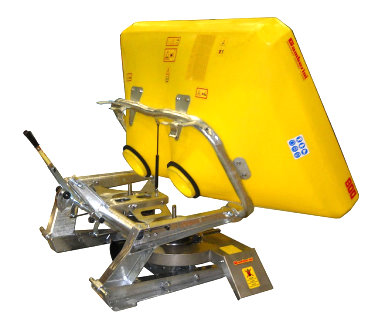

WE-SPW 800 plasticOne 型號

TECHNICAL CHARACTERISTICS
• Steel frame 6 mm thick, hot galvanized
• Rectangular tipping hopper, polyethylene made
• N° 3 aluminium gearboxes with gears in oil bath
• N° 2 AISI 304 stainless steel spreadingdisc with 4+4 adjustable vanes
• N° 2 spring agitators
• N° 2 AISI 304 stainless steel flow controlwith 3 adjustable openings
• N° 2 Indipendent extensible levers to operate each single flow control opening
• Filtering grill
• 3 Point linkage 1st and 2nd Category
• Cardan shaft L = 800 mm
Code Model
S.07.40 SPW 800 plasticOne
ACCESSORIES ON REQUEST
Code Description
C.010 Spreader trolley "Standard Tray" pitch widh 1,35 metre
C.015 Spreader trolley "Standard Tray" with adjustable pitch widh from 1,2 to1,8 m.
C.018 Cardan joint 1400 mm long, suitable for spreader on trailer
C.040 Painted, double conveyor for localized fertilization on 2 rows
C.041 Hot galvanized, double conveyor for localized fertilization on 2 rows
C.043 AISI 304 stainless steel double conveyor for localized fertilization on 2 rows
F.006 Double flexible cable L = 2,5 m. for remote control
I.003 Double hydraulic opening
K.000 Lighting kit
R.033 N° 3 small wheels for manual handling when dismounted
T.004 Rain proof hopper cover
Z.026 Hot galvanized frame
TECHNICAL DATA

Model SPW 800 plasticOne
Spreading system Double disc
Moving machine Mounted
Hopper volume 790 litres
Overall dimensions ( WxLxH ) 163x126x104 cm.
Machine mass empty 160 kg
Spreading width 16 - 24 m.
Minimum power tractor 55 HP
Cardan shaft revolution 540 rpm
Suitable fertilizer type Chemical granular, powdered, pellet fertilizers
