化學肥料施肥機

WE-SPW300-SPW400 型號

TECHNICAL CHARACTERISTICS
• Tubular steel frame light construction cold galvanized

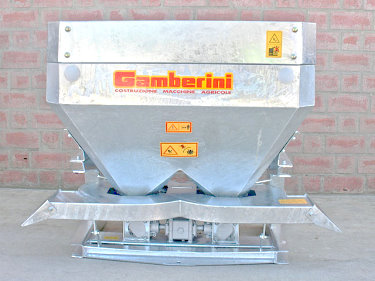

• Double cone shaped hopper construction, hot galvanized
• Aluminium gear box with gears in oil bath lubricated

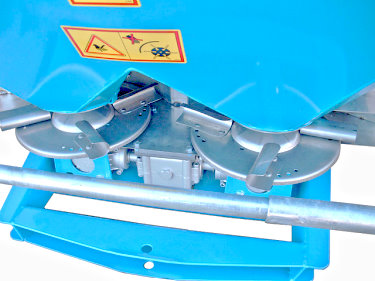

• Spreading disc with 4 adjustable vanes
• Standard agitator
• Filtering grill
• Cardan shaft supplied on demand
• Manual lever to operate flow control opening
• Manual lever for RH / LH spreading selection
• Hopper capacity 280 kg
Code Model
S.05.40 SPW 300
S.05.50 SPW 400
ACCESSORIES ON REQUEST
Code Description
C.045 Painted double conveyor for localized fertilization on 2 rows
C.046 AISI 304 stainless steel, double conveyor for localized fertilization on 2 rows

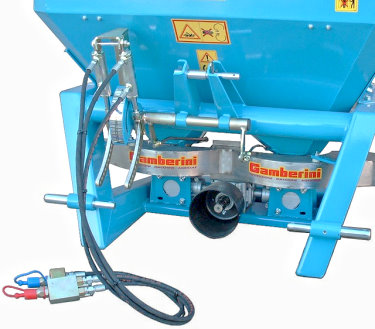

I.003 Double hydraulic opening
TECHNICAL DATA

Model SPW 300 SPW 400
Spreading system Double spinner disc
Moving machine Mounted
Hopper volume 300 litres 400 litres
Application rate 3,5 he / h
Overall dimensions ( WxLxH ) 105 x 85 x 87 cm. 105 x 85 x 103 cm.
Machine mass empty 105 kg 110 kg
Spreading width 10 ÷ 18 m.
Minimum power tractor 30 HP 40 HP
Cardan shaft revolution 540 rpm
Suitable fertilizer type Chemical granular, powdered, pellet fertilizers
