化學肥料施肥機

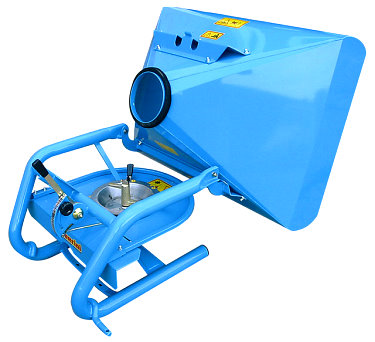

TECHNICAL CHARACTERISTICS

• Tubular steel frame dismountable in 2 parts to shipment optimize
• Painted double cone shaped steel hopperwith 3 output holes without welding.
• Spreading disc with 4 adjustable vanes
• AISI 304 stainless steel flow control with 3 adjustable openings
• Filtering grill
• Standard agitator
• 3 points linkage, 1st, 2nd Cat.
• Cardan shaft L = 800 mm

Code	Model
S.03.01	SHR 400

ACCESSORIES ON REQUEST

Code	Description
A.002	Agitator for powdered fertilizer
C.001	Painted, closed conveyor for localized fertilization
C.002	Hot galvanized, closed conveyor for localized fertilization
C.003	AISI 304 stainless steel, closed conveyor for localized fertilization
C.018	Cardan joint 1400 mm long, suitable for spreader on trailer
C.035	Hot galvanized, closed conveyor for localized fertilization on 2 rows and hopper with 4 holes
C.055	"Mini Tray" painted trailer equipped with 5.00 x 10 tires
C.091	Hot galvanized, spreading limiter

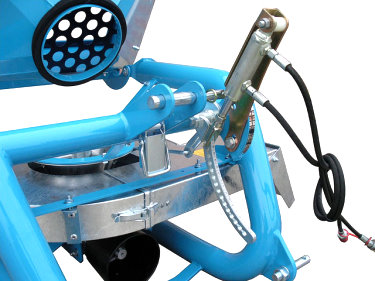

I.009	Hydraulic opening
T.003	Rain proof hopper cover
Z.004	Hot galvanized hopper
Z.018	Hot galvanized hopper and frame

TECHNICAL DATA


Model	SHR 400
Spreading system	Single spinner disc
Moving machine	Mounted
Hopper volume	340 litres
Application rate	2,5 he / h
Overall dimensions ( WxLxH )	120 x 90 x 95 cm.
Machine mass empty	70 kg
Spreading width	8 ÷ 14 m.
Minimum power tractor	35 HP
Cardan shaft revolution	540 rpm
Suitable fertilizer type	Chemical granular, powdered, pellet fertilizers
