The RotaMaX Chamber

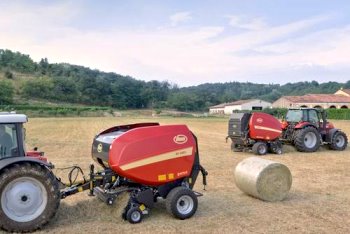

• The Vicon RF 3225 offers a bale chamber designed with 6 rollers at the front and chain and slat at the rear part.

• The combined solution gives excellent crop handling in all conditions with consistent, high density bales in both wet and dry material.

• The chains and slat of the rear section give an early and 100% regular bale rotation and hence faster bale formation leading to denser core of the bale. Even in very dry crops.

• The heavy duty rollers of the front section ensure a well-shaped bale finish and very tight bales.

• The chains in the rear section results in less crop loss compared to a full-roller concept.

• The tail gate has a completely enclosed design to reduce crop loss to a minimum, especially when operating in silage.

Drop Floor for Easy Unblocking

• Vicon Drop Floor enables the operator to clear blockages easily from the tractor cab without any crop loss.
• Drop the floor to free the rotor of blockage, engage the PTO to feed the blockage through and close the floor to continue baling

Rotor and Cuttting Device

SuperCut-25

• The SuperCut-25 pre-chopping system offers the ultimate solution for short chop baling with a chop length of 40mm. The short and precise chop provides dense and airtight bales for the best possible silage quality.
•  The operator can choose to engage 5, 13, 1 or 0 knives, giving maximum flexibility of operation.
•  The SuperCut- 25 knives are fitted with dual action protection against foreign objects. Each knife is individually spring protected and can move in two directions

SuperCut-14

• The SuperCut-14 knife chopping system provides a fast and efficient flow into the baler. With a chopping length of 70 mm it is the ideal solution for producing tight bales with superb silage quality.
• Each individual knife is spring protected against foreign obstacles. The knife will immediately return to working position once the obstacle has passed.

SuperFeed Rotor Intake

• Truly impressive intake capacity can be achieved with the SuperFeed rotor intake system - handling all crop types with ease, whatever the conditions.

Single or Dual Fork Feeder

• The fork feeder versions are fitted with a cost efficient fork feeder intake system. This system provides direct feed into the bale chamber, and the wide opening allows almost unrestricted intake capacity for fast and efficient bale start.
•  In addition the fork feeder gives less vibration and reduced power consumption.
•  The fork feeder is provided with a crop press above the pick-up that ensures a regular crop flow even from large bulky swaths.
• Dual fork feeder with double feed tines ensures even higher capacity, while still safeguarding fragile crop types.

Focus Control Terminal

• The Vicon Focus terminal is easy to learn and very intuitive, with focus on functionality and operating simplicity. The Focus terminal is a universal control terminal which can also be used with other implements from Vicon Group.

• The Focus terminal gives you full control of all functions from the tractor cab. They are shown on a large and very clear digital display. The Focus terminal monitors and controls all necessary functions with all relevant parameters / information visible at a glance. The control box is also driving the binding automatically without any intervention from the operator.

Fast and Efficient Twine and Net Wrap

Easy Loading

• The very low loading height and the very easy threading of the system mean minimum downtime and maximum time baling. Storage for three rolls of net means you don’t have to worry about running out of net when the pressure is really on during long working days.

Twine Tying

• Automatic twine tying with the fast acting double tube system means simultaneous binding of both edges of the bale, keeping binding time to a minimum. Over crossing of twines in the centre of the bale provides no loose ends at the end of the binding cycle.

• The system is fully user programmable to make sure you make the best looking bales in all crop conditions.

Net Wrap

• Net is fed right to the outside of the bale, with a specially widened entry channel, which also allows extra wide net types to be utilized if required.

• The simple net wrap system allows the net to extend past the edge of the bale. The 1.30m net is wider than the baling chamber, so that the net can be pulled over the edge of the 1.20m bale. The result is consistent perfectly shaped and tightly secured bales
