集草機

V-750

機器目錄下載

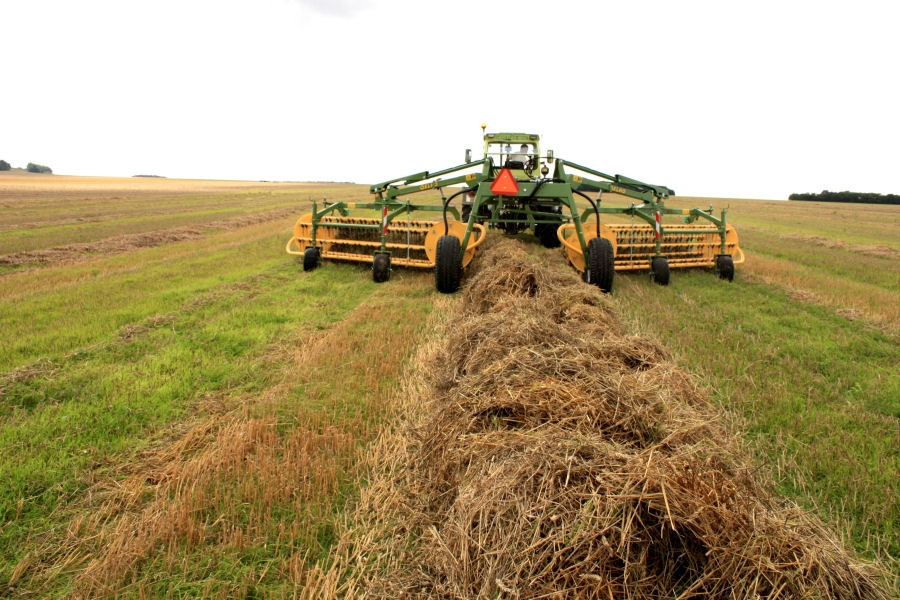

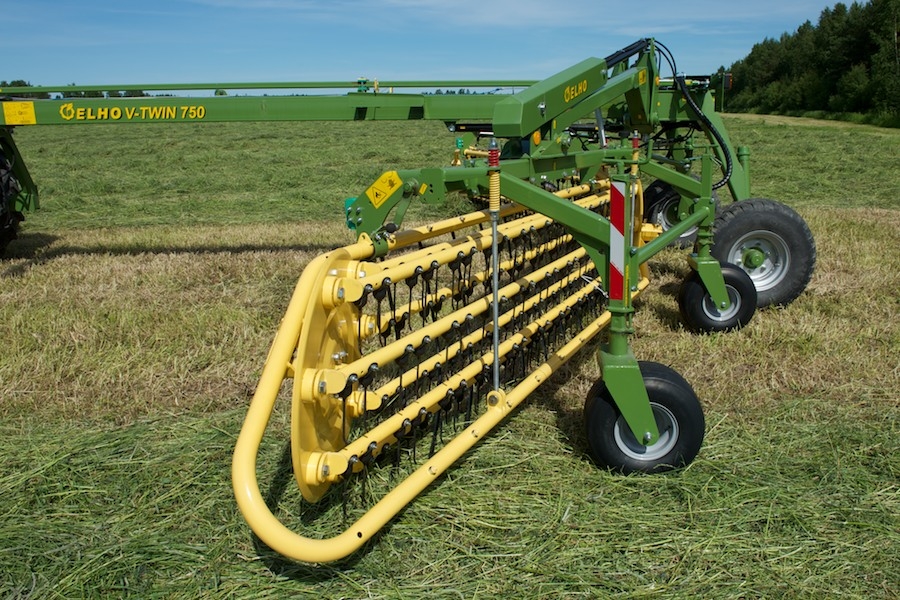

The  V-Twin swather does not drag the forage along the ground; it throws the forage diagonally up and inside with repeated movements. The forage stays clean and of top-quality and is not polluted from soil impurities. The V-Twin 750 swather is equipped with HydroBalance suspension and pendulum mid-suspension of the units to ensure that the machine follows the ground surface smoothly.

Thanks to the throwing motion of the swather, no rocks end up in the swath, unlike with conventional tine carousels. This reduces the risk of expensive damage to the forage harvester or baler which follows. Double rotors, with their seven tine bars and 322 tines cast into rubber, lift the forage. Their rotation speed is adjustable and the swath width can also be optimised for the harvester/baler.

There is less distance to cover, harvesting is more efficient and fuel consumption is reduced. A flexible working width of 3-8 metres (adjustable from the cabin while driving) makes V-Twin an ideal machine for irregular sections as well. The maximum working width depends on the wanted width of the swath.

The swather is easy to adjust according to widths of different mower conditioners. The size of the forage harvester does not matter: The wings of the V-Twin are spread so that a fluffy swath that is easy to pick up is always created. Thanks to the multi-tined rotors, the result is an even swath and the risk of clogging up the harvester/baler is small.

規格說明  :

工作寬度   m  3 - 8
集草行寬度  m 1,2 - 1,5
道路行走寬度   m 2,6
長度   m 6.3
集草叉數量   pcs 322
液壓馬達    pcs 2
液壓油流量    公升/每分鐘 25
液壓連接方式   pcs 1 double action, 1 single action, free return
Front mounting equipment connection standard
Front loader (Euro) connection additional equipment
機器重量   kg 2150
* option: 2 double action and free return
** maximum width depending on the swath width

Technical specifications are given without obligation and may be amended without prior notice. Rights to structural changes are reserved. The price list valid at the time of sale is referred to regarding prices and equipment. Contact your local retailer for more information.
