集草機

V-600

機器目錄下載

The whole capacity of a harvester must be used when harvesting. The ELHO V-TWIN 600 front mounted swather helps achieve this. The V-Twin 600 swather is built to swath all sorts of forage cleanly, gently and efficiently. The V-Twin 600 leaves the forage to dry until the harvester arrives. This saves both time and fuel and there is less driving on grass. Work is more efficient when swaths have more forage.

The V-Twin 600 is very flexible!

The machine can be used in many different ways: on the front lift or with on a reverse drive tractor as standard. On a front loader with an adapter available as additional equipment. The machine can also be used in the three-point lift using a drawbar and A-frame available as additional equipment.

V-Twin 600 Flex on the road.

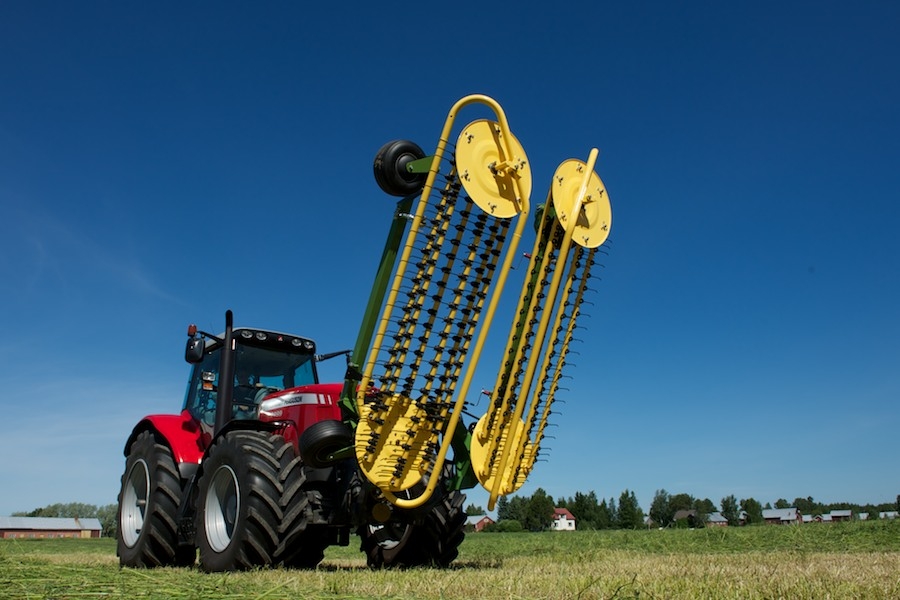

When driving on the road, the rotors of the V-Twin 600 are lifted to vertical possition . Despite the large working width, visibility from the cabin is good: It even meets the strict road regulations in Germany. The V-Twin 600 is compact when transported either at the front or back of a tractor.

V-Twin 600 facts:

規格說明  :

工作寬度   m 6,0
集草行寬度  m 1,2 - 1,3
道路行走寬度   m 2,4
長度   m 2,1
集草叉數量   pcs 240
液壓馬達    pcs 2
液壓油流量    公升/每分鐘 25
液壓連接方式   pcs 1 double action, 1 single action, free return
Front mounting equipment connection standard
Front loader (Euro) connection additional equipment
機器重量   kg 860
Technical specifications are given without obligation and may be amended without prior notice. Rights to structural changes are reserved. The price list valid at the time of sale is referred to regarding prices and equipment. Contact your local retailer for more information.
