Motorizes feed carts - Supercart

Supercart

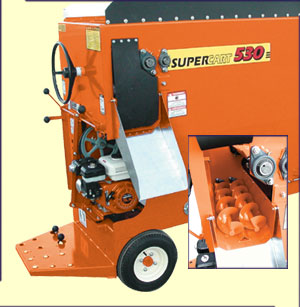

The Supercart motorized feed cart is designed for durability and reduced maintenance cost. The Supercart controls are designed for ease of operation. A horse has been added to the gas reservoir for easy and safe fueling.

1- Unloading lever
2- Parking brake
3- Foward and reverse pedals
4- Side unloading selector (CC model only)
5- Anti-vibration motor base
6- Easy access fueling cap
7- Engine guard
8- Ventilated access door
9- Improved steering system requires 20% less effort
Supercart
Honda engine The engine guard is designed to prevent silage or gas from spilling on engine and muffler.

Valmetal motorized feed carts are equipped with rugged, easy-start Honda engines as standard equipment.

The Supercart features a bolted floor for ease of replacement.		 Bolted floor

Rear wheels
 The rear wheels are mounted directly to the hydraulic motors. Both motors are driven by a powerful hydrostatic pump, eliminating high maintenance items such as the differential, roller chains and sprockets. The design features fewer moving parts than other comparable machines.

All drive components have a full three year limited warranty with the exception of the gas motor, which is subject to manufacturer's warranty.

Steering cable is easy to adjust.

Auger discharge models feature a replaceable plastic-lined auger trough.
Both V-belts are extremely easy to replace.

Valmetal's design of pulleys and tighteners allows for smooth belt operation without the bending and twisting that damage belt fibers.

Steering cable is easy to adjust.

Auger discharge models feature a replaceable plastic-lined auger trough.

　
Cross-conveyor transmission
CC model
Discharge-conveyor transmission is foot operated and all compoments are under the cart to eliminate damage from curbs and door ways.


　

Paddles
CC model
Angle iron paddles are used on discharge-conveyor to carry a larger volume of feed. Paddle design allows conveyor speed to be reduced to prolong chain life.

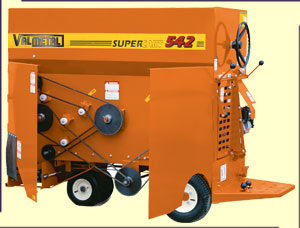

Side access doors
Side access doors are hinge-mounted to simplify service.

Heavy #662 pintle chain
Outer auger drive bearing plate is bolted for easier access to inner bearing.

Both apron and discharge conveyor are made with heavy #662 pintle chain for longer life and smooth operation.

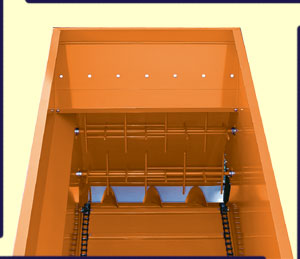

Apron features heavy u-shaped steel slats for strength and durability.

Both beaters are completely redesigned to be more aggresive in all types of silage.

Feed baffle above beaters is adjustable for different types of silage.

　

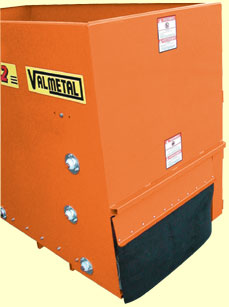

Front unload models for very narrow aisles.

　
High discharge models for elevated mangers (right side only).

Tires
Valmetal features exclusive six-ply tires as standard equipment.

Rear traction wheels can be equipped with all tssssserrain or tractor tread tires as optional equipment.

NOTE : These two types of tires are available in four (4) plies only.

　
  Quick alley reference :
If A+B=8 feet, a model 525 will turn comfortably.
If A+B=9 feet, a model 530 will turn comfortably.
If A+B=10 feet, a model 542 will turn comfortably.
If A+B=12 feet, a model 960 will turn comfortably.
If A+B=13 feet, a model 975 will turn comfortably.

　
525
530
542
960
975
A
B
A
B
A
B
A
B
A
B
38"(97 cm)
56"(142 cm)
44"(112 cm)
62"(158 cm)
48"(122 cm)
66"(168 cm)
58"(147 cm)
76"(193 cm)
58"(147 cm)
100"(254 cm)
42"(107 cm)
52"(132 cm)
48"(122 cm)
58"(147 cm)

52"(132 cm)
62"(158 cm)
64"(163 cm)
72"(183 cm)
62"(158 cm)
96"(244 cm)
46"(117 cm)
48" (122 cm)
52"(132 cm)
54"(137 cm)
56"(142 cm)
58"(147 cm)
70"(178 cm)
70"(178 cm)
66"(168 cm)
90"(229 cm)

　
Model
Overall Length
Overall Width
Overall Height
Interior box Dimensions
H.P.
Machine Weight
525
76" (193 cm)
30" (76 cm)
60" (150 cm)
56"(142cm)x27"(69cm)x40"(102cm )
5
890lbs.(404kg)
530
82" (208 cm)
33" (84 cm)
60" (150 cm)
62"(157cm)x30"(76cm)x44"(112cm )
5
980lbs.(445kg)
542
88" (224 cm)
37" (94 cm)
64" (160 cm)
68"(173cm)x34"(86cm)x44"(112cm )
5
1080lbs.(490kg)
960
100" (254 cm)
45" (114 cm)
64" (160 cm)
80"(203cm)x42"(107cm)x44"(112cm )
9
1440lbs.(653kg)
975
116" (295 cm)
45" (114 cm)
64" (160 cm)
96"(244cm)x42"(107cm)x44"(112cm )
9
1645lbs.(748kg)
Specifications, descriptions and illustrative material in this page are as accurate as known at the time of conception, but are subject to change without prior notice. Illustrations may include optional equipment and accessories, and may not include all standard equipment.
　

　
