拖曳式-牧草割草機 (附壓扁設備 )

GMT系列

Robust trailed mower
with high working speed

GMT-series

The GMT machines are JF-STOLL’s range of robust trailed disc mower conditioners. The machines are developed and constructed with particular focus on the following features:

* Strength and Reliability

* High capacity

* Good articulation technique

* Effective conditioning

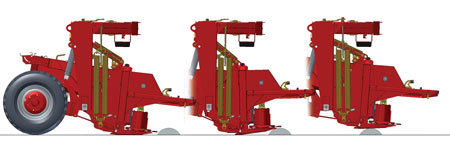

Top Safe ensures safe work and high speed

Top Safe is the unique JF-STOLL Anti Crash System. The Top Safe system results in a unique combination of efficiency and safety. It is possible to work twice as fast with a Top Safe mower without increasing the impact in case of collision. The system protects the machines efficiently when encountering stones and other obstacles and at the same time ensures low service costs and long life. If the mower hits a protruding stone or another obstacle the Top Safe system is activated. The cutting unit is "lifted" over the obstacle whereby the collision is avoided. This means that damage is minimised and machine life is increase.



Low cutter bar with extremely smooth underside

The machine is equipped with the JF-STOLL cutter bar which is characterised by:

  • Perfectly smooth underside
    - spares the field and ensures quicker regrowth


  • Low cutter bar
    - even and adjustable stubble height. The low stubble height is possible due to the low cutting angle


  • Integrated stoneguard in the whole width of the cutter bar
    - ensures optimal protection of the gearbox of the cutter bar



The JF-STOLL cutter bar is also equipped with Quick’n Safe, which is JF-STOLL’s system for quick and safe replacement of blades without loosening bolts and nuts.

Quick and safe replacement of blades

Quick’n Safe allows quick and easy replacement of blades without loosening nuts or bolts. Just one single push downwards with the special tool and the blade is released from the unique safety pin. JF-STOLL is the only supplier on the market who has introduced a patented safety pin which ensures that the blade cannot be released until the oblong hole in the blade has been turned to a certain angle in relation to the safety pin. This ensures optimal safety.



Effective conditioning reduces the drying time

GMT is available with different effective conditioner types. These conditioners ensure a more intensive treatment of the crop and quicker drying, at the same time the nutritional value of the crop is preserved.

  • The PE conditioner is the most used type of conditioner from JF-STOLL. They are made of polyethylene, are very hard-wearing and have a long life.
  • The roller conditioner is for more delicate crops that require a gentle conditioning in order not to lose the fodder value, e.g. alfalfa and clover.
  • Steel flails can be used in areas with many large stones and extreme wear due to e.g. sand in the crop.



Quick adjustment to wide spreading with Top Dry

Top Dry is the name of JF-STOLL’s simple, but efficient system for wide spreading. If Top Dry is activated, the grass is spread over 80 % of the working width and at the same time the conditioning is increased.

This result in a wide and airy swath which reduces the drying time.

Top Dry is activated by means of a handle – no tools are necessary. The handle folds down a deflector behind the conditioner whereby the crop is widespread.



Double swathing optimises the machine chain
With the swath collecting belt Collector you can lay double swaths for the following machinery and thereby optimise the machine chain. Collector is very efficient whether you work with GMT alone or in combination with a front mower.

Collector has a good throwing ability due to the large belt area and the high belt speed. The belt is lubricated for life and has an effective, stiff brush sealing which eliminates crop residue getting underneath the belt.

Normal swathing and wide spreading with Top Dry is still possible when Collector is mounted on the machine.



PE 撥草器  加快牧草脫水份乾燥



Strong and flexible

The PE-finger conditioner was the result of a great deal of research, where both  function and durability have been tested thoroughly in the field. Therefore, the JF-STOLL PE-conditiner is known for its efficiency as well as its strength. The many strong PE-conditioning fingers make the JF-STOLL PE-conditioner extremely efficient. The result is quicker drying and better feed quality. Conditioning treatment is quickly adjusted by means of a "tool free" lever.



Long life - low maintenance costs

The JF-STOLL PE finger conditioners are made of Polyethylene, a strong yet flexible material which allows the fingers to bend in any direction without damage. An average life of 15 years proves the strength of the PE finger. The risk of losing a PE finger is remote, if it happens no damage is caused. Lose a steel finger and a forage harvester can suffer substantial damage, while splinters of metal may present a major risk to livestock.



Increased drying speed

Trials at the Swedish Institue of Agricultural Engieering show that the drying time is reduced by some 40 per cent when using the JF-STOLL PE-conditioning system. Adjustment is necessary to achieve optimum conditioning depending on crop and forward speed. The PE system allows quick and easy adjustment of both the rotor speed and the distance between the conditioning plate and the rotor. In general the slower the speed and the smaller the distance, the greater the conditioning.



橡皮擠壓滾輪

Minimum drying period and maximum feed value

Top Roller is JF-STOLL's newly developed roller conditioning system designed for JF-STOLL's mower range. Equipped with this latest roller conditioning system the mowers treat alfalfa, clover and grass in a gentle and effective way so that their feed value is



Less waste

The advantages of the Top Roller system are obvious. Clover, for example, has to be harvested in a careful way to maintain its structure and high feed value. The gentler action of the Top Roller reduces crop wastage over other conditioning systems by approximately 200 kg dry matter per hectare.



Greater effect

The Top Roller conditioning system from JF-STOLL consists of 2 strong rollers with high rubber profiles. These two mesh into each other like the teeth in a toothed gear. As the clover is pulled through, its stems are stretched and bruised by the edge of every rubber profile.



規格說明 :

 機 型

GMT 3205 L

GMT 3205 Flex

GMT 3605 Flex

Type

Lateral drawbar

Central drawbar

Central drawbar
割草寬度

3,15

3,15

3,55

行走寬度, m

3

3

3,4

配屬配件

PE-撥草器

橡膠擠壓滾筒

甩刀式切草

刀盤

8/16

8/16

9/18

刀片

Quick'n Safe

Quick'n Safe

Quick'n Safe

所需馬力 ,  kW/HP

70/95

70/95

75/102

PTO 轉速/RPM

6 splines/1000

6 splines/1000

6 splines/1000

輪胎

380/55-17

380/55-17

380/55-17

機器重量 , kg 2500 2600 2720

如需詳細規格請洽本公司索取
