小型中耕管理機

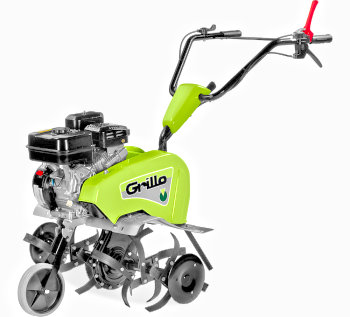

WE-Princess M1型號

產品目錄下載

Gear housing in press-formed plate sections secured by bolts

Belts in kevlar (high performance)

Handlebar easy to control and fully adjustable

Rotary tiller with 6 hoes plus disks (total width 80 cm)

Front transport wheel supplied as standard


Technical data sheet WE-Princess M1
Engine Kohler Lombardini 3000 Series OHV
Start recoil starter
Supply fuel
Displacement 196 cc, 1 Cylinder
Power 5.5 HP (4.1 kW)
Air cooled
Dry air filter with interchangeable filter cartridges
Engine Robin Subaru EX17 OHC
Start recoil starter
Supply fuel
Displacement 169 cc, 1 Cylinder
Power 5 HP (3.7 kW)
Air cooled
Dry air filter with interchangeable filter cartridges
Engine Honda GX160 OHV
Start recoil starter
Supply fuel
Displacement 163 cc, 1 Cylinder
Power 4.8 HP (3.6 kW)
Air cooled
Oil bath air filter
Fuel tank capacity 3,1 L mot. GX160 OHC - 3,6 L mot. EX 17 - 3,6 L mot. SH265
Gearbox single speed
Clutch with lever control on the handlebar working on the belt tensioner
Final drive with pinion and chain
Standard rotary tiller with 6 hoes and several tillers, working width 83 cm
Hoes system diametre 32 cm
Working width area with side disks adjustable at 83 and 59 cm
Working depth area without side disks adjustable at 30, 52 and 77 cm
Working depth 32 cm
Carter of the tiller bolted, pressed steel with screwed shells
Handlebar height and side adjustment
Standard features front transfer wheel
Safety devices machine cut-out on release; mudguards and handlebar according to the law; muffler protection
Weight 59 kg with eng. GX160 OHC - 61 kg with eng. EX 17 - 62 kg with eng. SH265





Implements WE-Princess M1

Furrower

Furrower - COD. 948622
to be applied on Princess M1 - Princess MP3 - Princess MP3 PRO - Princess MR
item no.: 948622
weight: 2 kg

Transport wheels for rotavator 瓧 42 cm (pair)

Side wheels pair for rotavator 瓧 42 cm - COD. 9C7522
to be applied on 11500 - 2500 - 3500 - Princess M1 - Princess MP3 - Princess MP3 PRO - Princess MR
item no.: 9C7522
weight: 7 kg
