小型中耕管理機

WE-11500型號

產品目錄下載



For tough jobs requiring high-level performances.

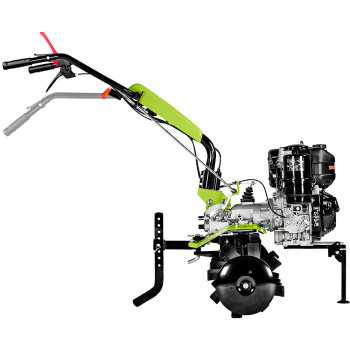

Technical data sheet WE-11500
Engine Robin Subaru EX27 OHC
Start recoil starter
Supply fuel
Displacement 265 cc, 1 Cylinder
Power 8.3 HP (6.1 kW)
Air cooled
Dry air filter
Engine Lombardini 15LD350
Start recoil starter
Supply diesel
Displacement 349 cc, 1 Cylinder
Power 7.5 HP (5.5 kW)
Air cooled
Oil bath air filter
Engine Lombardini 15LD350
Start electric, with 12 V battery
Supply diesel
Displacement 349 cc, 1 Cylinder
Power 7.5 HP (5.5 kW)
Air cooled
Oil bath air filter
Fuel tank capacity 6,1 L eng. EX 27 OHC - 4,3 L eng. 15 LD 350
Drive with oil bath gears
Gearbox 3 forward gears + 1 reverse gear
Clutch conic active
Standard rotary tiller With 6 hoes system and side discs, working width 99 cm. With hexagonal shaft 2,7 cm
Hoes system diametre 34 cm
Working width area with side disks Adjustable at 72 and 99 cm (125 cm with extension kit cod. 933112)
Working depth area without side disks Adjustable at 59 and 86 cm (112 cm with extension kit cod. 933112)
Working depth 33 cm
Max. revolutions tiller 1st gear 53 rpm – 2nd gear 123 rpm – 3rd gear 162 rpm - reverse gear 53 rpm

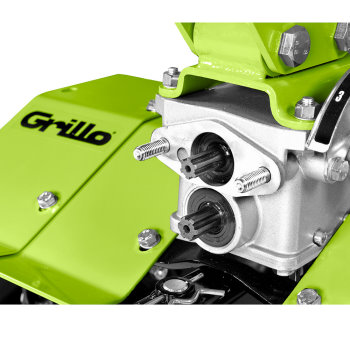

P.T.O. 2 P.T.O: a superior P.T.O. running at the engine in anti-clockwise rotation, 11UNI 221. A second inferior synchronised P.T.O. with gearbox speeds in clockwise rotation 13 UNI 221
Handlebar height and side adjustment. Fitted on anti-vibration blocks
Weight 121 kg with eng. 15 LD 350 with electric starter - 110 kg with eng. 15 LD 350 with recoil starter - 90 kg with eng. EX 27





Implements WE-11500

Cowling Kit engine

Cowling kit engine 11500 with LOMBARDINI 15LD350 diesel engine - COD. 9B5911
to be applied on 11500
item no.: 9B5911
weight: 3 kg

Rotary tiller extensions for 11500 and 12000 (pair)

Rotary tiller extensions (pair) for 11500 and12000 - COD. 933212
to be applied on 11500
item no.: 933212
weight: 8 kg

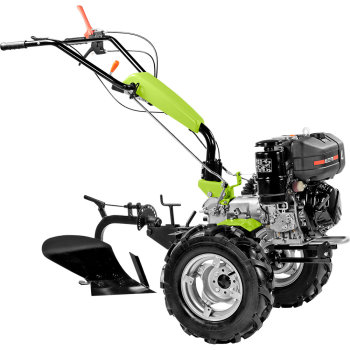

Single furrow plough - item no. 945322 needed, pneumatic wheels 5.00-12 and wheel weights are recommended

Single furrow plough - COD. 943122
to be applied on 11500 - 2500 - 3500 - G 107D - G 108 - G 110 - G 85 - G 85D
item no.: 943122
weight: 12 kg

Turn-wrest plough 180°

Turn-wrest plough 180 ° - COD. 943222
to be applied on 11500 - 2500 - 3500 - G 107D - G 108 - G 110 - G 131 - G 85 - G 85D
item no.: 943222
weight: 21 kg

on motorhoes item no. 950522 needed;



on walking tractors item no. 945322 needed; we recommend 5.00-12 wheels and wheel weights

Frame for attachments for plough (item no. 900412 and item no. 9C4312 needed)

Frame for attachments for plough - COD. 950522
to be applied on 11500 - 2500 - 3500
item no.: 950522
weight: 7 kg

Adjustable furrower (item no. 942722 needed, 5.00-10 pneumatic wheels and wheel weights item no. 9G1212 are recommended)

942622
to be applied on 11500 - 2500 - 3500 - G 55
item no.: 942622
weight: 8 kg

Pneumatic Tractor wheels 5.00-10 (adjustable disks); pair

Pair pneumatic “Tractor” wheels 5.00-10 [adjustable discs] - COD. 900412
to be applied on 11500 - 2500 - 3500 - G 107D - G 108 - G 110 - G 55 - G 85 - G 85D - GF 3 - GF 3DF
item no.: 900412
weight: 22 kg

The adjustable discs permit to modify the external width of the wheels according to the type of labour to be done.



On walking tractor G55 they can be mounted only when using plough or furrower.



Item 9C4312 (wheels extensions) is needed on 2500, 3500, 11500 rotavators equipped with plough.

Wheelextensions (pair)

Pair wheels extensions for rotavators - COD. 9C4312
to be applied on 11500 - 2500 - 3500
item no.: 9C4312
weight: 4 kg

Transport wheels for rotavator 瓧 42 cm (pair)

Side wheels pair for rotavator 瓧 42 cm - COD. 9C7522
to be applied on 11500 - 2500 - 3500 - Princess M1 - Princess MP3 - Princess MP3 PRO - Princess MR
item no.: 9C7522
weight: 7 kg

Liftable front transport wheel for EX17, 15 LD225/350, with recoil starter

Liftable front transport wheel - COD. 9B5611
to be applied on 11500 - 2500 - 3500
item no.: 9B5611
weight: 3 kg
