木屑粉末一貫作業機

                              KJSM-210(固定式)



I. Introduction:

With application of advanced technology, our sawdust machine can process wood

logs and wood trunks. Characterized with simple operation and maintenance,

efficient output, wide range of application and highly automatic.

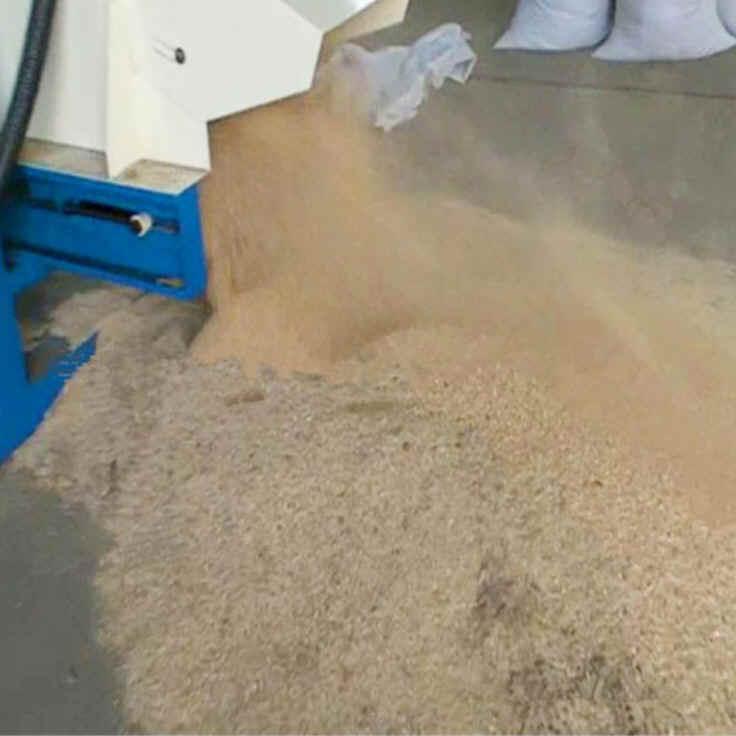

The sawdust machine can pulverize wood logs and wood trunks into 3-5 mm fine

particle efficiently.

II. Features:

1.One step process, to convert wood logs into sawdust

2.Less space and less labor needed

3.No limitation with material’s moisture content

4.Energy saving with hydraulic feeding system

5.Free operation and maintenance

6.Low noise

7.High durability and stable production

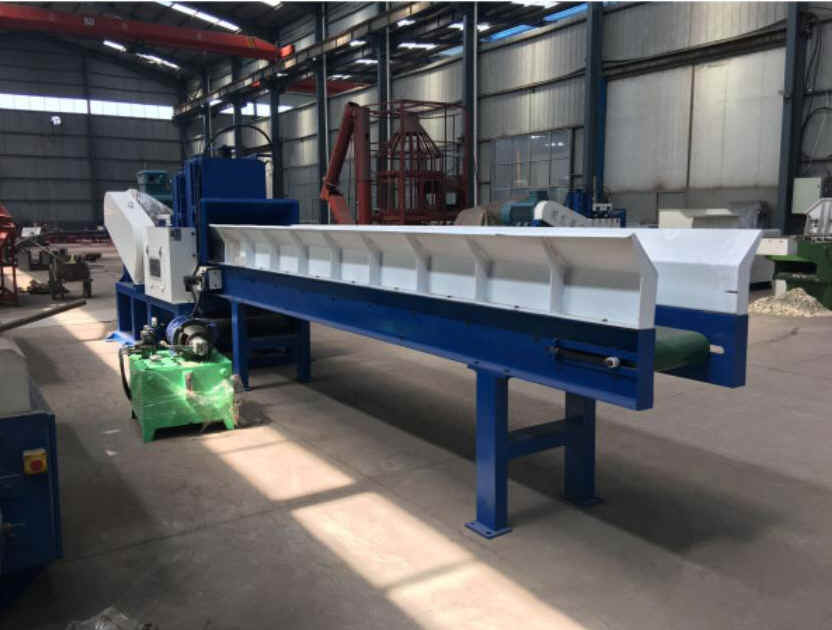

8.Integrated system with feeding conveyor, electric control cabinet

III. Technical Data:

Model  機型 KJSM-210
Main power  主要動力  41kw ( 50 HP )
Hydraulic motor 液壓馬達 3kw ( 20.3 HP )
Voltage and frequency 電壓 /頻率  380v/50hz, customizable  可依客戶要請更改
Capacity 生產能量 3-4t/h  3-4噸/小時
Max. Feeding sizeModel 210×210mm
Knife roll 滾刀尺寸 420×220mm
Knife 刀片數量 168pcs
Tungsten steel 鎢鋼鐵  lifespan 1 year
Output sawdust size 產出粉料尺寸 Adjustable, as small as 3-5mm  可調整
Dimension  機器尺寸 1800×900×1400mm
Weight  機器重量  3500kg
