樹枝粉碎機

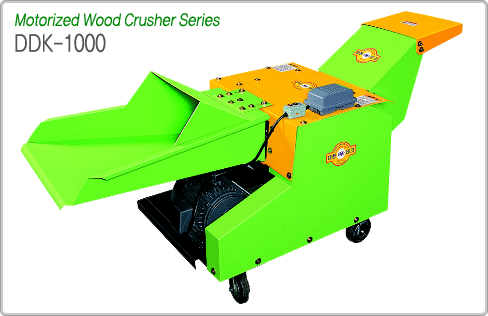

DDK-1000

產品目錄下載


滾輪進料. 適用切木材或乾或青牧草
Supply roller
  Power source
Choice 405mm supply roller,
which sets the tooth to each
other, for large quantity work.
Select specially designed
3phases, 7.5HP motor for
crush

  變更齒輪比. 可調整切草長度
Upper Part 42T, Low Part 18T Upper Part 52T, Low Part 36T

Upper Part 36T, Low Part 52T Upper Part 16T, Low Part 72T

classification  機 型 DDK-1000
style  結 構 Attachable/ comes with its own motor  電動馬達
power  supply  馬力 7.5HP
demension  機器尺寸 2,290* 790* 1,020
weight  機器重量 240kg
supply roller width  滾輪寬度 405m/m
Max. crushing  diameter 最大粉碎直徑 50m/m
crushing  capacity  工作能力 2ton/hr
crushing particle diameter  切碎後切片粒度 30~150m/m
