電動伸縮式鏈鋸
The electro-mechanical Puma chain pruner is
powerful, light, extremely fast and noiseless. It can be used either hand held
or assembled on one of its special extension poles (fixed: 170 cm - telescopic:
either 140-200 cm or 180-240 cm). It can prune any kind of plant. Now available
with a 8” bar and a ¼” chain, automatically lubricated by means of a
membrane pump, it will be soon also offered with a 10” and a ‘carving’
bar. Fitted with a brushless motor, it can be operated either by the Lipo
battery (lithium - 16.8 V) or by an ordinary car battery (lead - 12 V - 100
Amps/hour), using the adequate converter and the 10 m cable. Both solutions
guarantee an autonomy of about 8 hours, allowing the operator to carry out more
or less 1000 cuts of 8/10 cm diameter. The number of cuts depends, obviously, on
the kind of wood, the branches section and the way of use. Puma
is equipped with all the necessary devices complying with the current safety
rules, such as the inertial brake, which instantly locks the chain, and the
automatic active safety, which avoids any accidental starting of the tool.
Moreover, there are three in-built protection devices in case of:
1) pole inversion when connecting the power-supply cable to the battery;
2) motor overheating;
3) excessive current absorption.
When, for example, the operator carries out too much pressure while cutting, the
chain speed decreases, and the led light becomes red and flashes. Therefore, the
operator, having been informed, decreases the pressure, so the led light becomes
green, and the chain automatically moves at its highest speed, allowing to end
up the cut without any risk either for the motor or for the electronic unit.
Safety devices:
• starting led light
• hand protection
• operating lever safety
• emergency brake (Kickback)
• bar and chain automatic lubrication
Battery endurance: 1 working day

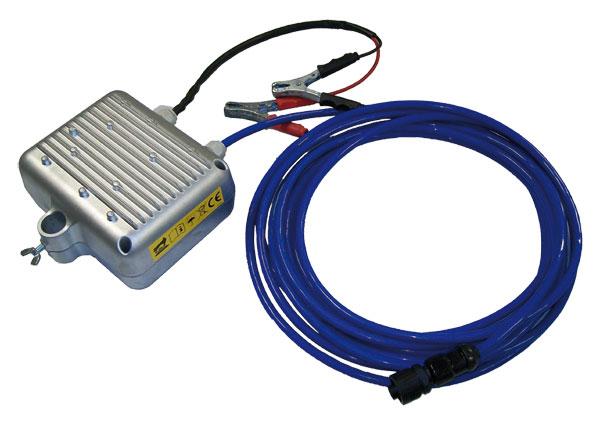

Power supply by means of a lead 12 V battery + converter (from 12 V to 18)
Power-supply cable, 10 m long
Power supply by means of a lithium 16.8 V battery
Power supply cable, 1.5 m long
ETTA.2100 | 1800 | 1 workingday | hand-held |
ETTA.2105 | 2680 | 1 working day | 170 |
ETTA.2150 | 3360 | 1 working day | 140/200 |
Lipo 500 / 720 Battery backpack
The power supplying Lipo unit is based on a new generation of memory-less, lithium-polymer batteries, which can be recharged even when they are not completely flat, this way keeping their maximum efficiency. They do not suffer from overheating, so they ensure top safety and a longer lifetime than the common lithium batteries. The backpack for carrying the batteries is extremely light and resistant and allows great movement freedom while harvesting. The battery weight is well balanced, so that it does not tire the operator.
POWE.0003 | Alice 3/5 h - Puma 3/5 h | 500 | 4 |
