飼料攪拌-自動餵飼車 ( TMR )

　

 卡車裝載式

2090

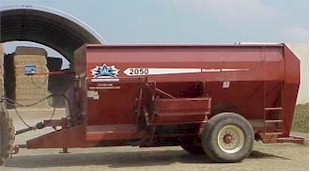

         Model 2050 Tow                   Model 2090 Truck Mount

Features:

1) Rugged Unibody construction with 5/16 Belly and End Panel thickness utilizing a three-point scale system.

2) Heavy Drive system with “The Best Planetary Drive on the Market” and Heavy Roller Chain in Oil bath and Splined Shafts and Sprockets in the rear.

3) Two Heavy Duty Augers with bolt on, heat-treated and tungsten coated wear     resistant Knives, gives superior cutting action with Long Stem Hay in Square and  Round bales, and Quick, Consistent mixing action throughout the load for a variety of feed products.

4) The Aggressive Bottom Auger offers scissor like cutting against a Wear  Resistant Steel Rasp Bar on a hay-shelf and stainless steel bars mounted on
the tub.

5) The Open Design of the Auger allows product to flow through the auger blades, blending the product as it moves along the auger to the center of the mixer and up to the top auger which delivers it to the mixer ends for complete circulation throughout the load.






6) The MaxiMixer offers an overall Balanced Profile for efficient maneuverability around the yard and along
the bunk.

Different Models and Options
for your Specific Livestock Equipment Needs


                                             Truck Mount Models                                                                Tow Models


Specifications
MODEL 2030** 2050 2070 2090

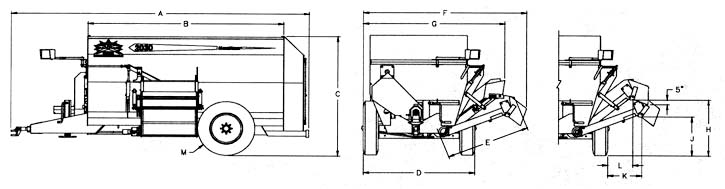

Dimensions - Inches Trailer Trailer   Truck
A. Overall Length 219 249   235
B. Mixing Chamber Length 144 168   216
C. Overall Height* 93 101   140 on 38" frame
D. Tread Width 82 96   102 box width
E. Discharge Length***    52                62     52                62
F. Operating Width (Max)   111              120    117              126
G. Transporting Width (Max)    97               104    103              110
H. Discharge Height (Max)    37                43     40                46
J. Discharge Height (Min)    26                30     29                33
K. Discharge Reach (Max)    16                25      9                 18
L. Discharge Reach (Min)    11                18                         11 Contact
M. Standard Tire Size**** 11.00 X 22.5 16.00 X 22.5 SAC Sales
Cubic Foot Mixing Capacity 335 508 for Release Date 924
Bushel Mixing Capacity 268 406   740
Unit Weight lbs. 8200 13500   18000
Upper Auger Flighting Thickness  1/2  1/2    1/2
Lower Auger Paddle Thickness  5/8  5/8    5/8
Floor & End Panels Thickness   5/16   5/16     5/16
Side Panels Thickness   3/16   3/16    1/4
Stainless Steel Liner Thickness  1/8  1/8    1/8
PTO Speed Standard  540  540   Hydrostatic
PTO Speed Optional 1000 1000   Drive
Driveline Protection Shear Pin Shear Pin   Relief Valve
Horsepower Requirements***** 60 90   180
* Overall height is based on standard tire size as outlined under item M.  Other tire sizes are
  available upon request.
** Model 2030 has two axel mounts. When axle is mounted in second hole, all height dimensions
   are raised 6".
*** Longer discharge lengths are available as options. Dimensions are available upon request.
**** All dimensions on this chart are based on the outlined tire sizes.  Some dimensions will
     be affected when tire sizes are changed.
***** Horsepower requirements vary greatly with different ration materials. Numbers are a
      guideline only.
