飼料攪拌-自動餵飼車 ( TMR )

固定式

 210 & 270 & 325

　


Stationary model
Stationary models
-On stationary models, a convenient door opening system allows the operator to regulate the proper feed discharge and avoid overloading the conveying or feeding system.

-An optional electric door opener is available, allowing remote operation.

The digital scale requires only one load cell.

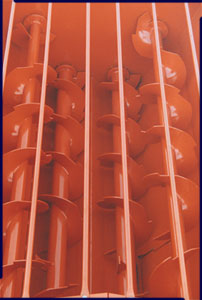

Four auger mixing system
Four auger mixing system
-The mixing augers are equipped with hay relief notches. The lower augers rotate against "cutting bars" to tear apart and trim the long stems during the mixing process.



Electronic digital scale
Electronic digital scale
Various models of electronic digital scale systems are available.
-Simple read-up model
-model with preset point for light and horn ( load or unload)
-Model with batching capabilities
-Mobile mixers feature : 4 load cell system
-Stationary models require only 1 load cell.



AVAILABLE OPTIONS
-Block valves for tractor with only one set of hydraulic outlets
-UHMW or stainless steel bottom and side liners
-Manual flap
-Hydraulic flap
-Magnets in discharge flap
-Special discharge conveyor lengths
-For stationary model only:
Electric door opening system.

STATIONARY MODELS
Model 210 270 325
Mixing capacity (cu. ft.) 210 270 325
Overall length (in.) 124 148 172
Overall height (in.) 85 85 85
Overall width (in.) 86 86 86
Mixing box size (in.) 84x96 84x120 84x144
Mixing box sides thickness (in.) 10 gauge 10 gauge s10 gauge
Mixing box ends thickness (in.) 3/16 3/16 3/16
Mixing box bottom thickness (in.) 3/8 3/8 3/8
Bottom auger - diameter (in.) 20 20 20
Bottom auger - flighting thickness (in.) 1/2 1/2 1/2
Bottom auger - tube (in.) 6 5/8 X .432 6 5/8 X .432 6 5/8 X .432
Top auger - diameter (in.) 20 20 20
Top auger - flighting thickness (in.) 3/8 3/8 3/8
Top auger - tube (in.) 4 1/2 X .337 4 1/2 X .337 4 1/2 X .337
Bottom shaft diameter (in.) 3 3 3
Top shaft diameter (in.) 2 1/2 2 1/2 2 1/2
Roller chains 80-100 100-120 100-120
Approximate weight (lbs) 6 500 7 100 8 600
Discharge opening size (in.) 18 x 21 18 x 21 18 x 21

　
