手指型(轉輪)集草機

RCS 系列

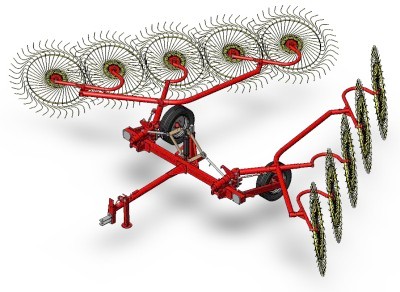

An inexpensive carted rake with working width from 5.90 m (19’ 8”) to 7.30
m (24’ 4”) with 8, 10 or 12 finger wheels.

An hydraulically controlled mechanism converts the machine from transport to work position in only a
few seconds.

The working width and the angle of the fingerwheels are easily adjustable to requirements based on the type and conditions of the forage.

Available as an optional: Center Wheel Kit.



Model

轉輪

工作寬度

攤開寬度

所需馬力

_
Feet
Cm
Feet
Cm
Kw
Hp
RCS 8
8
19'8''
590
3'- 5'
90-150
15
20
RCS 10
10
22'
660
3'6''- 6'
110-180
15
20
RCS 12
12
24'4''
730
3'6''- 6'
110-180
19
25
