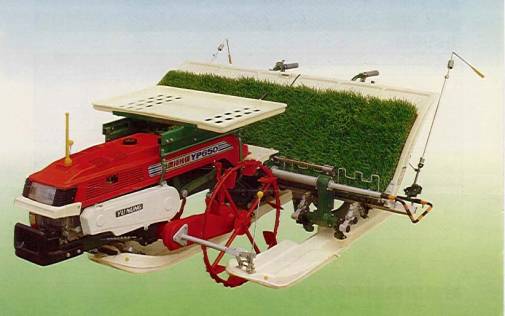

Power Rice Transplanter

YP-450B & YP-650



1.      The unique mechanism of forced flat-belt type delivery of rice seeding mat.

2.      Hill spacing adjustable with multiple shifts continual adjustable hill spacing, even under operating conditions, it is to handle the adjustment.

3.      With unique movable rice seeding platform, easily supply the rice seedling mat. The rice seedling platform is movable back and forth, it is easy and convenient to supplement the rice seedling mat.

4.      very easy operation with fully hydraulic power system adopt hydraulic control system, the machine always keep prompt response to the paddy field conditions, so that, the planted rice hills are always under uniform depth with straight row and less missing hills.



SPECIFICATIONS

Name

Rice Transplanter

Model

YP-450B

YP-650

Dimensions

 (cm)

Overall Length

251cm

251cm

Overall Width

157cm

210cm

Overall Height

95cm

95cm

Net Weight (kg)

170kg

220kg

Engine

Name

4-Stroke Gasoline Engine or Diexel Engine

Horsepower

5

Starting method

Recoil Rope

Wheels

Wheel adjustment

Fully Automatic Hydraulic control

Type

2-Wheels with 3-Floats

Transmission

2-Forward, 1-Backward

Transplanting

Density

Rows

4

6

Row Spacing (cm)

30cm

Plants/Hill

3~5

Hill Spacing (cm)

14cm16cm18.2cm

Seedling Mats

180~220 1 ha

Required



Working

Capacity

Capacity

30min./0.1, ha

20 min./0.1 ha.

Speed

0.3~0.6 ft/sec.
