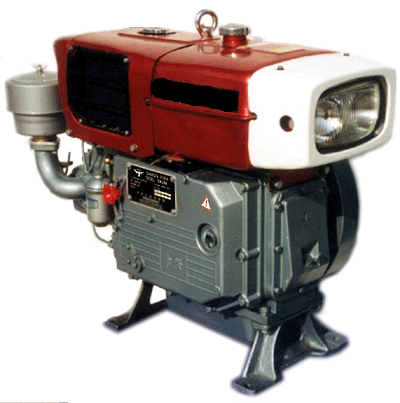

Single Cylinder-Diesel Engine ( Water Cooled )


       S1100BN

     ( 15.8 HP )





Model S1100BN lubrication system Combined Pressure and Splashing
Type Horizontal 4-stroke Starting system Hand cranking/electric starting°]or manual strting°^
Combustion system Swirl combustion chamber Net Weight 160 kg
Bore °— Stroke(mm °— mm) 100 °— 115 mm Power output axis crank
Total displacement(L) 0.903 L Operation direction of output axis retrorse
Compression ratio 20 Fuel/lubricate°G use 0# in summer,use-10#in winter,-20#light dresel oil/SEA 10W30
Rated output 10.53 kW( 14.3 HP) 2200 r/min Volume of oil tank 11.5 L
Max output 11.63 kW( 15.8 HP) 2200 r/min Volume of lubricate 3.00 L
Specific fuel 263.8 g/kW.h

Recommended starting system

°@
Cooling system consumption Hopper overall dimensions (L°—W°—H)(mm) 854 °— 490 °— 704

°@

°@

°@

°@

°@
