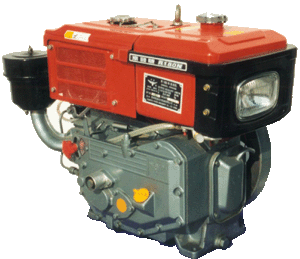

Single Cylinder-Diesel Engine ( Water Cooled )

     R180N

    ( 7.7 HP )





Model R180N lubrication system Combined Pressure and Splashing
Type horizontal 4-stroke Starting system Hand cranking
Combustion system Preheated Net Weight ≤75 kg
Bore ¡Ñ Stroke(mm ¡Ñ mm) 80 ¡Ñ 80 mm Power output axis crank
Total displacement(L) 0.402 L Operation direction of output axis left(view in the direction of output axis)
Compression ratio 22 Fuel/lubricate¡G use 0# in summer,use-10#in winter,-20#light dresel oil/SEA 10W30
Rated output 5.15 kW( 7.0 HP) 2600 r/min Volume of oil tank 5.0 L
Max output 5.67 kW( 7.7 HP) 2600 r/min Volume of lubricate 2.00 L
Specific fuel 287.0 g/kW.h

Recommended starting system

over 12V-28AH
Cooling system consumption Condenser overall dimensions (L¡ÑW¡ÑH)(mm) 700 ¡Ñ 341 ¡Ñ 525

¡@

¡@

¡@

¡@
